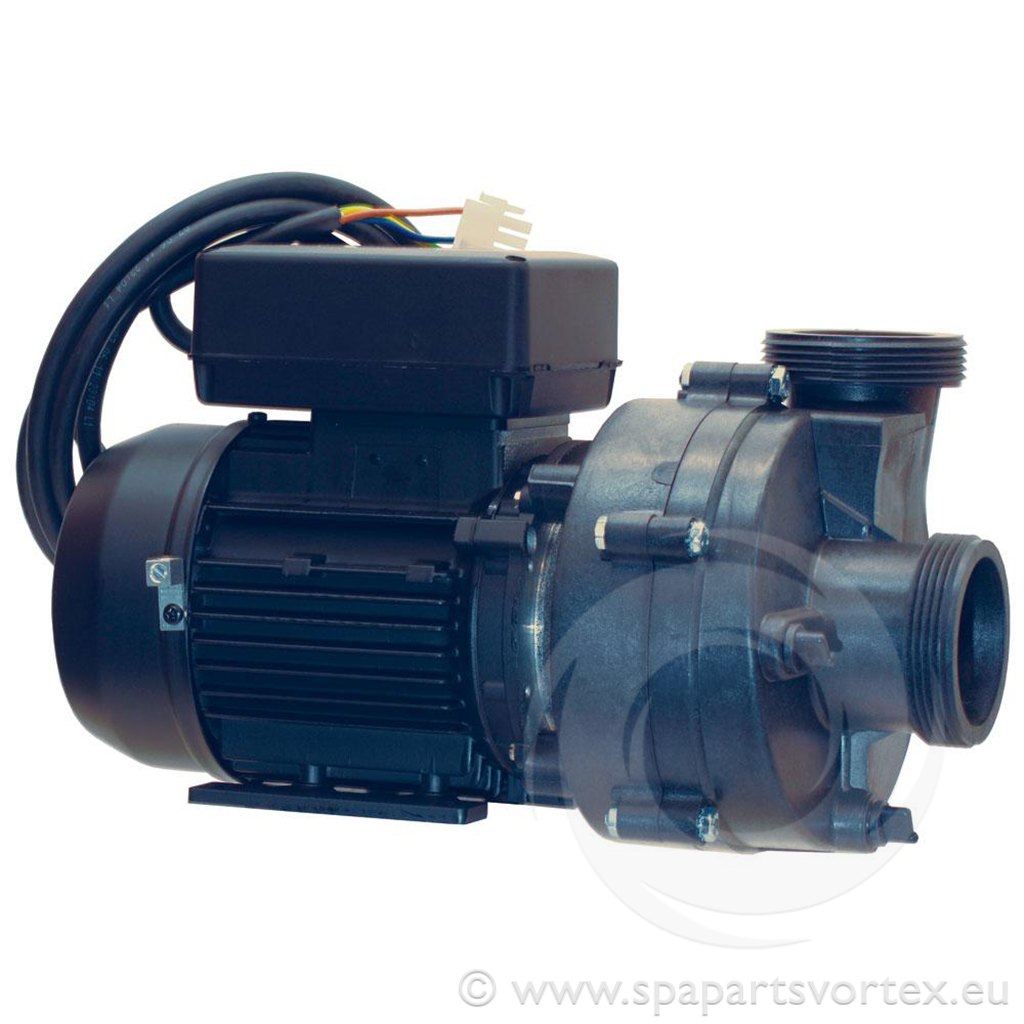

HA440NG Single Speed 1.5HP (2 HP)
Product Description
HA440NG Single-Speed Pump 1.5 HP – Technical Specifications
The Balboa HA440NG Single-Speed Pump, rated at 1.5 HP, is designed for spa and hot tub applications, delivering performance comparable to the previous 2 HP HA440 model.
Specifications:
- Power Supply: 230 V, 50 Hz
- Motor Power: 1.5 HP
- Current Draw: 5.7 A
- Rotational Speed: 2,800 RPM
- Plumbing Connections: 2-inch suction and discharge ports
- Electrical Connections: Supplied with a 3-core cable and AMP plug
- Dimensions: Length: 390 mm; Height: 230 mm; Depth: 190 mm
Features:
- Wet End Configuration: Center suction with radial side discharge
- Motor Protection: Totally Enclosed Fan Cooled (TEFC) motor with IPX5 rating
- Insulation Class: Class F
- Seals: Carbon ceramic with Viton® elastomers
- Certifications: VDE approved per EN60335-1 and EN60335-2-41 standards
This pump serves as a direct replacement for the older HA440 Magnaflow models, commonly found in Spaform hot tubs.
Product Attributes
| Brand: Balboa |
| Product Type: Massage Pump |
| Plumbing Connection: 2" |
| HP: 1.5 HP |
| Length: 390 mm |
| Width: 190 mm |
| Power kW: 1.1 kW |
| Height: 230 mm |
| Speeds: 1 speed |
Product Attributes
| Brand: Balboa |
| Product Type: Massage Pump |
| Plumbing Connection: 2" |
| HP: 1.5 HP |
| Length: 390 mm |
| Width: 190 mm |
| Power kW: 1.1 kW |
| Height: 230 mm |
| Speeds: 1 speed |
