LX JA75 Superior Spec (No Air Switch)
JA75 0.75 HP Circ Pump (No Air Switch)
Product Description

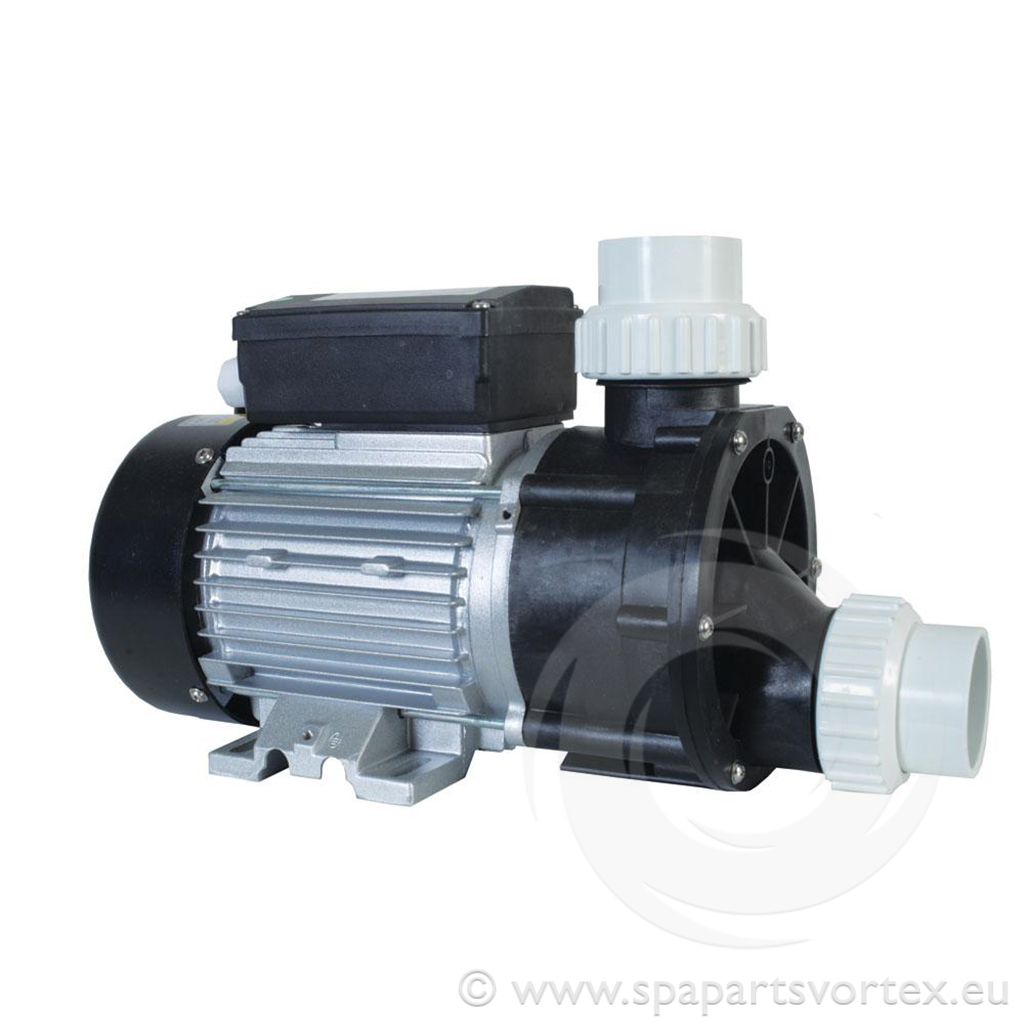

The LX JA75 is a 0.75 HP single-speed circulation pump used in hot tubs and whirlpool systems. This version, specified for Superior Spas, differs from the standard JA75 as it has no internal air switch. Designed for centre discharge and self-draining, it delivers a maximum flow of 250 L/min with a 12 m head height. Suitable for systems using 1.5-inch suction and discharge unions and commonly found in Chinese-manufactured spas such as AMC Winer Spa and Spa Serve.
Specifications:
- Motor Power: 0.75 HP (0.55 kW)
- Current Draw: 3.2 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
- Flow Rate: Max 250 L/min
- Max Head: 12 m
- Motor Protection: Thermally protected with 10 µF capacitor
- Quantity: Sold individually.
Product Attributes
| Brand : LX |
| Height : 185 mm |
| HP : 0.75HP |
| Length : 325 mm |
| Power kW : 0.56 kW |
| Product Type : Circulation Pump |
| Width : 155 mm |
| Plumbing Size : 1.5" |
| Speeds : 1 speed |
Product Attributes
| Brand : LX |
| Height : 185 mm |
| HP : 0.75HP |
| Length : 325 mm |
| Power kW : 0.56 kW |
| Product Type : Circulation Pump |
| Width : 155 mm |
| Plumbing Size : 1.5" |
| Speeds : 1 speed |
Product Description
The LX JA75 is a 0.75 HP single-speed circulation pump used in hot tubs and whirlpool systems. This version, specified for Superior Spas, differs from the standard JA75 as it has no internal air switch. Designed for centre discharge and self-draining, it delivers a maximum flow of 250 L/min with a 12 m head height. Suitable for systems using 1.5-inch suction and discharge unions and commonly found in Chinese-manufactured spas such as AMC Winer Spa and Spa Serve.
Specifications:
- Motor Power: 0.75 HP (0.55 kW)
- Current Draw: 3.2 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
- Flow Rate: Max 250 L/min
- Max Head: 12 m
- Motor Protection: Thermally protected with 10 µF capacitor
- Quantity: Sold individually.
