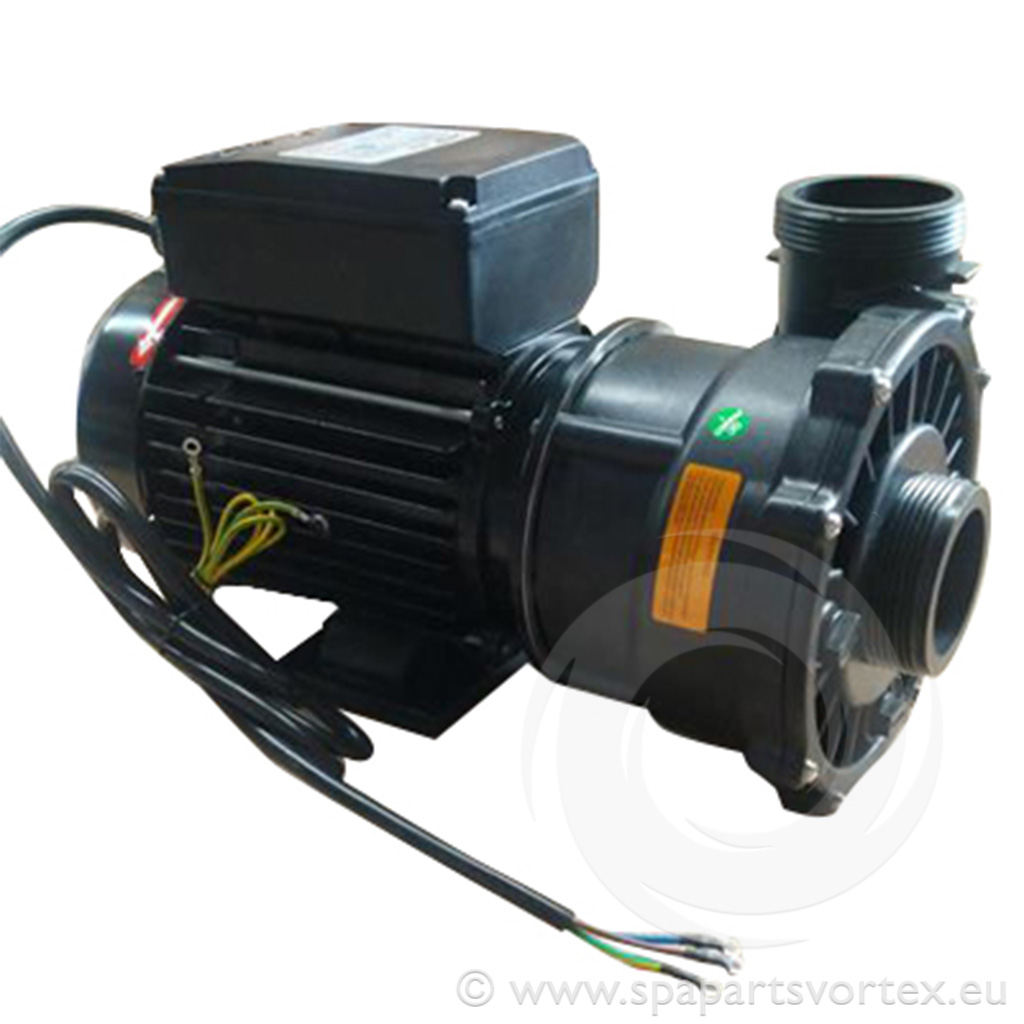

The DXD-325E is a high-performance 2.5HP single-speed water pump designed for spa and hot tub applications. Operating at 230V, 50Hz, it delivers a maximum flow rate of 833 litres per minute and a maximum lift of 20 meters. The pump features a 2.0-inch plumbing connection and comes with a plain cable attached. It is rated with Insulation Class F and Protection Grade IPX5, ensuring durability and safety. The unit weighs approximately 15.0 kg.
Specifications:
-
Motor Power: 2.5 HP
-
Voltage: 230 V
-
Frequency: 50 Hz
-
Power: 1.85 kW
-
Current Draw: Approximately 9 A
-
RPM: 2850
-
Maximum Flow: 833 L/min
-
Maximum Lift: 20 m
-
Wet-End Impeller HP: 2.5 HP
-
Capacitor: Not specified
-
Plumbing Connections: 2.0-inch union connector
-
Electrical Connections: Plain cable attached
-
Protection Grade: IPX5
-
Insulation Class: F
-
Weight: 15.0 kg
-
Dimensions (L × W × H): 463 mm × 160 mm × 256 mm
- Additional Notes: Unions included.
Quantity: Sold individually.
