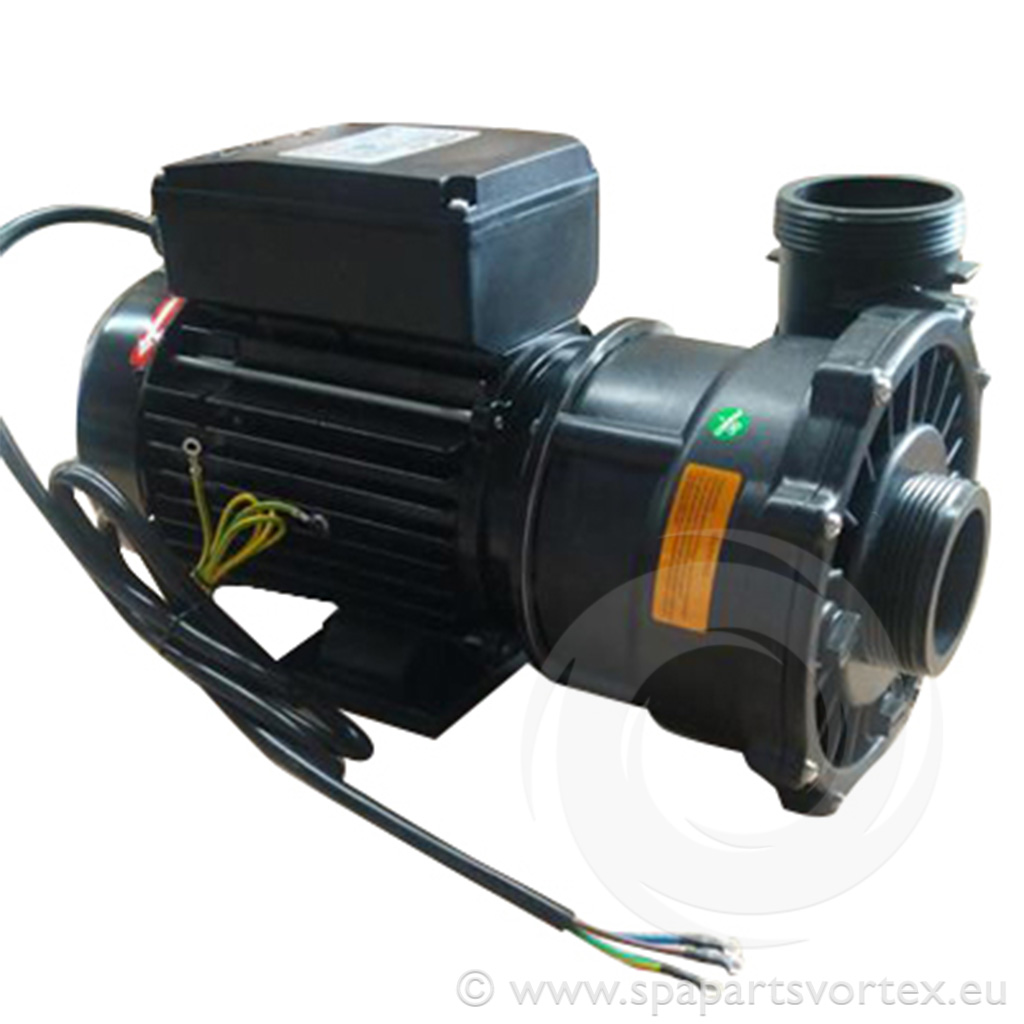

DXD-325A Pump Single Speed 2.5HP
Product Description
The DXD-325E is a high-performance 2.5HP single-speed water pump designed for spa and hot tub applications. Operating at 230V, 50Hz, it delivers a maximum flow rate of 833 litres per minute and a maximum lift of 20 meters. The pump features a 2.0-inch plumbing connection and comes with a plain cable attached. It is rated with Insulation Class F and Protection Grade IPX5, ensuring durability and safety. The unit weighs approximately 15.0 kg.
Specifications:
- Motor Power: 2.5 HP
- Voltage: 230 V
- Frequency: 50 Hz
- Power: 1.85 kW
- Current Draw: Approximately 9 A
- RPM: 2850
- Maximum Flow: 833 L/min
- Maximum Lift: 20 m
- Wet-End Impeller HP: 2.5 HP
- Capacitor: Not specified
- Plumbing Connections: 2.0-inch union connector
- Electrical Connections: Plain cable attached
- Protection Grade: IPX5
- Insulation Class: F
- Weight: 15.0 kg
- Dimensions (L × W × H): 463 mm × 160 mm × 256 mm
- Additional Notes: Unions included.
Quantity: Sold individually.
Product Attributes
| Brand : DXD |
| Product Type : Massage Pump |
| Height : 256 mm |
| HP : 2.5HP |
| Length : 463mm |
| Power kW : 1.9 kW |
| Speeds : 1 speed |
| Width : 160mm |
| Plumbing Size : 2" |
| Amperage : 9.0 Amps |
Product Attributes
| Brand : DXD |
| Product Type : Massage Pump |
| Height : 256 mm |
| HP : 2.5HP |
| Length : 463mm |
| Power kW : 1.9 kW |
| Speeds : 1 speed |
| Width : 160mm |
| Plumbing Size : 2" |
| Amperage : 9.0 Amps |
Product Description
The DXD-325E is a high-performance 2.5HP single-speed water pump designed for spa and hot tub applications. Operating at 230V, 50Hz, it delivers a maximum flow rate of 833 litres per minute and a maximum lift of 20 meters. The pump features a 2.0-inch plumbing connection and comes with a plain cable attached. It is rated with Insulation Class F and Protection Grade IPX5, ensuring durability and safety. The unit weighs approximately 15.0 kg.
Specifications:
- Motor Power: 2.5 HP
- Voltage: 230 V
- Frequency: 50 Hz
- Power: 1.85 kW
- Current Draw: Approximately 9 A
- RPM: 2850
- Maximum Flow: 833 L/min
- Maximum Lift: 20 m
- Wet-End Impeller HP: 2.5 HP
- Capacitor: Not specified
- Plumbing Connections: 2.0-inch union connector
- Electrical Connections: Plain cable attached
- Protection Grade: IPX5
- Insulation Class: F
- Weight: 15.0 kg
- Dimensions (L × W × H): 463 mm × 160 mm × 256 mm
- Additional Notes: Unions included.
Quantity: Sold individually.
