How to Choose the Right Replacement Hot Tub Pump

Two pumps can look almost identical on a product page.

The difference becomes more obvious when one will not connect, fit the available space or operate as the spa requires.

For engineers and dealers ordering a replacement, a few checks before purchase can help avoid a second site visit.

Before you order, confirm the pump is the problem

Poor flow does not automatically mean the pump needs replacing. First check the water level, isolation valves, filters and suction grilles, then trapped air following a drain and refill.

If the fault remains, establish whether it involves the motor, wet end, electrical supply or controls before selecting parts. Record the symptoms and any error codes alongside your identification photos.

Isolate the electrical supply before accessing equipment or connections.

Electrical testing, wiring and installation must be carried out by a suitably qualified professional.

1. Read the pump data plate

Photograph the complete data plate while the pump is still installed, if it is safely accessible. Capture the manufacturer, model and part number, including any suffixes.

Record the voltage, frequency, current rating and speed information. On a two-speed pump, note the ratings for both speeds where shown.

If there are separate labels on the motor and wet end, photograph both. A motor label may not identify the complete pump assembly.

When a label is unreadable, send the spa make and model, control-system details, measurements and installation photos for an identification check. Avoid choosing the closest-looking product.

2. Identify the pump's role and number of speeds

Confirm what the existing pump does in that particular spa.

A dedicated circulation pump serves the circulation circuit. A jet or massage pump supplies the hydrotherapy jets. Some installations use a two-speed pump for low-speed filtration and higher-speed jet operation.

A replacement needs to suit both the job and the way the control system operates it. A single-speed pump should not be treated as a direct replacement for a two-speed model.

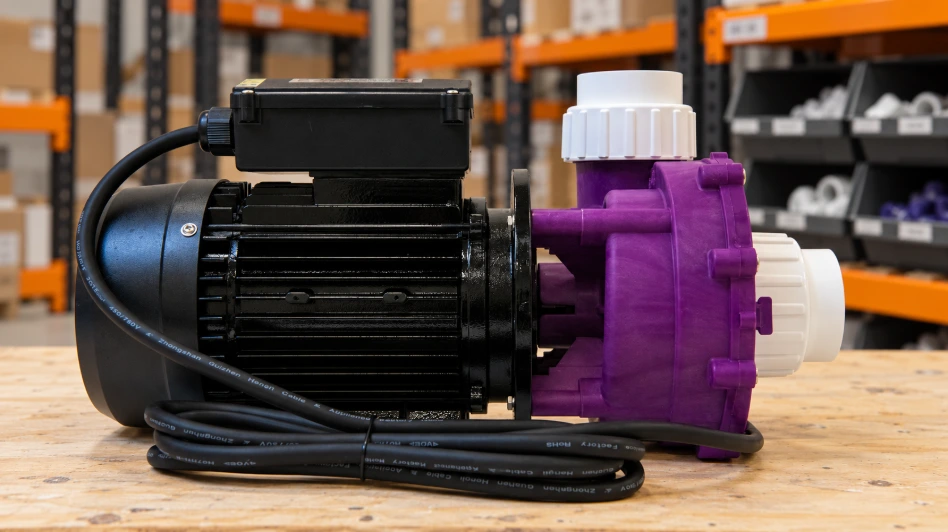

Vian VP300 versus VP300-II

The Vian range illustrates why the complete model reference matters:

3. Check the plumbing connections

Record the inlet and outlet connection sizes separately. Compare the existing fittings with the replacement pump's connection specification and drawing.

Nominal plumbing size is not the same as the measured outside diameter of the pump thread.

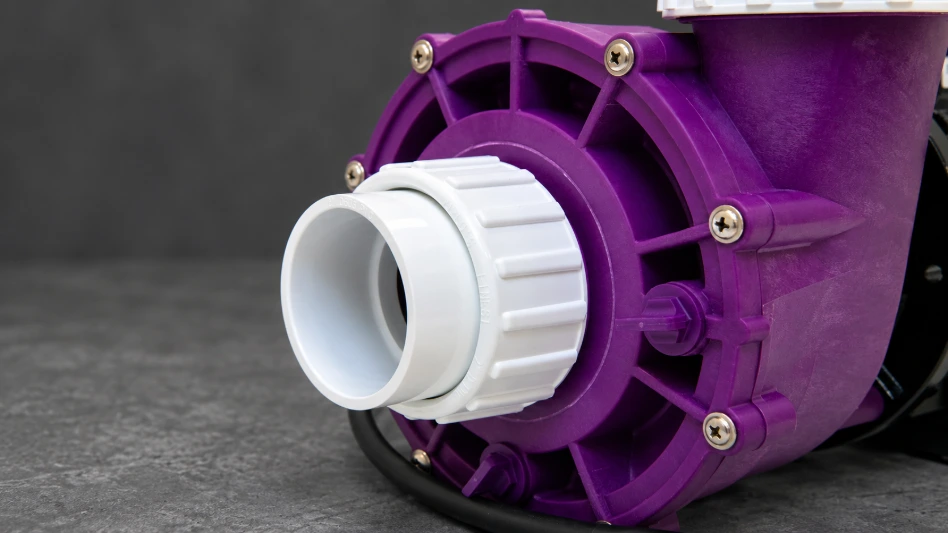

For example, the Vian VP300 is listed with 2-inch connections and an approximately 78mm thread outside diameter.

When requesting help, state exactly what you measured: the pipe, pump thread or union. Include a photograph with the measurement visible.

Check the connection type and sealing arrangement as well as the size. Do not assume an existing union and gasket are compatible simply because the stated plumbing sizes match.

4. Match the wet-end orientation

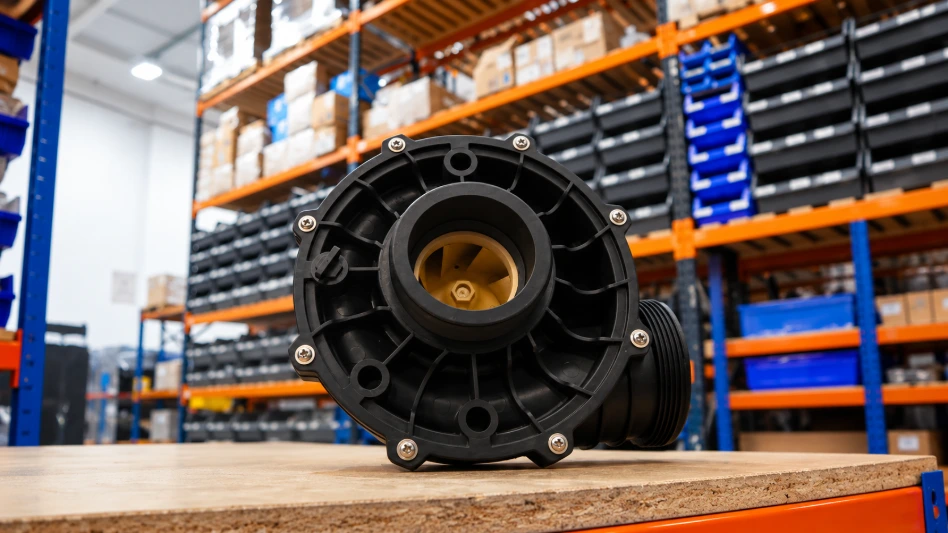

The wet end is the water-handling assembly containing the impeller. Its inlet and outlet positions determine how the pump lines up with the spa's plumbing.

Take a photograph showing the whole installed pump and both pipe connections. Compare it with the replacement drawing using the same viewing direction.

Some pumps permit the wet end to be rotated. Waterway's Executive 48-frame model, for example, allows 90-degree rotational positions. This is a model-specific feature: confirm the permitted adjustment and procedure for the replacement you are considering.

Do not force existing pipework into position to compensate for a mismatch.

5. Check dimensions, frame and mounting points

Compare the replacement's length, width and height with the available space. Also check the mounting-hole positions and the height and position of the connections.

Allow room to access the unions and service the pump once fitted. Overall dimensions alone may not reveal a mounting or pipe-alignment problem.

Where a frame designation such as 48-frame or 56-frame is specified, record it. It matters particularly when matching motors and wet ends, but the frame number alone does not confirm that a complete replacement will fit.

6. Confirm electrical and control compatibility

Check the replacement against the original specification and the spa manufacturer's requirements:

• Supply voltage, frequency and phase.
• Current rating and the control system's permitted load.
• Single-speed or two-speed operation.
• Cable, connector and wiring arrangement.
• The pump's intended control-system connection.

A plug that physically fits does not establish electrical compatibility. Have the wiring arrangement and control requirements checked rather than assuming they match.

This is especially relevant when comparing products intended for different markets. Confirm the stated frequency; do not assume a 60Hz listing describes the same pump specification as a 50Hz model.

7. Compare performance, not just horsepower

Horsepower is one selection detail. It does not, by itself, confirm the flow a pump will deliver through the existing plumbing and jets.

Use the manufacturer's specified replacement or an approved equivalent wherever possible. If considering a different model, compare the relevant performance information and confirm its suitability for the system.

A higher-horsepower pump is not automatically an upgrade. Waterway advises that the plumbing and other equipment must be considered before increasing pump horsepower.

For a wet-end or motor repair, confirm that the motor and impeller are correctly matched. Selecting either component independently can create another fault.

Are hot tub pumps universal?

No. Pumps can differ in application, speeds, electrical ratings, connections, dimensions and performance. A similar-looking unit is not necessarily a direct replacement.

Can I replace a hot tub pump with a different brand?

Possibly, provided the alternative is confirmed as compatible with the spa and its control system. Check the full specification and establish whether any approved plumbing or connection changes are needed before ordering.

Do I need a complete pump or just a wet end?

That depends on the diagnosed fault and the condition of the remaining assembly. A compatible wet end or service component may be appropriate in some cases. Confirm the exact part reference and motor compatibility before choosing a repair.

What photos help identify a replacement pump?

Send a readable data-plate photo, a full view of the installed pump, both plumbing connections and the electrical connector where safely accessible. Include measurements, the spa model and a description of the fault.

Find the right replacement with Spa Parts Vortex

Before ordering, gather the data plate, installation photos and key measurements. Tell us whether you need a complete pump or help identifying a service part, and include the checks already completed.

Spa Parts Vortex supplies hot tub pumps and spare parts to trade professionals. Our team can help you identify the replacement for the job.
