Description du produit

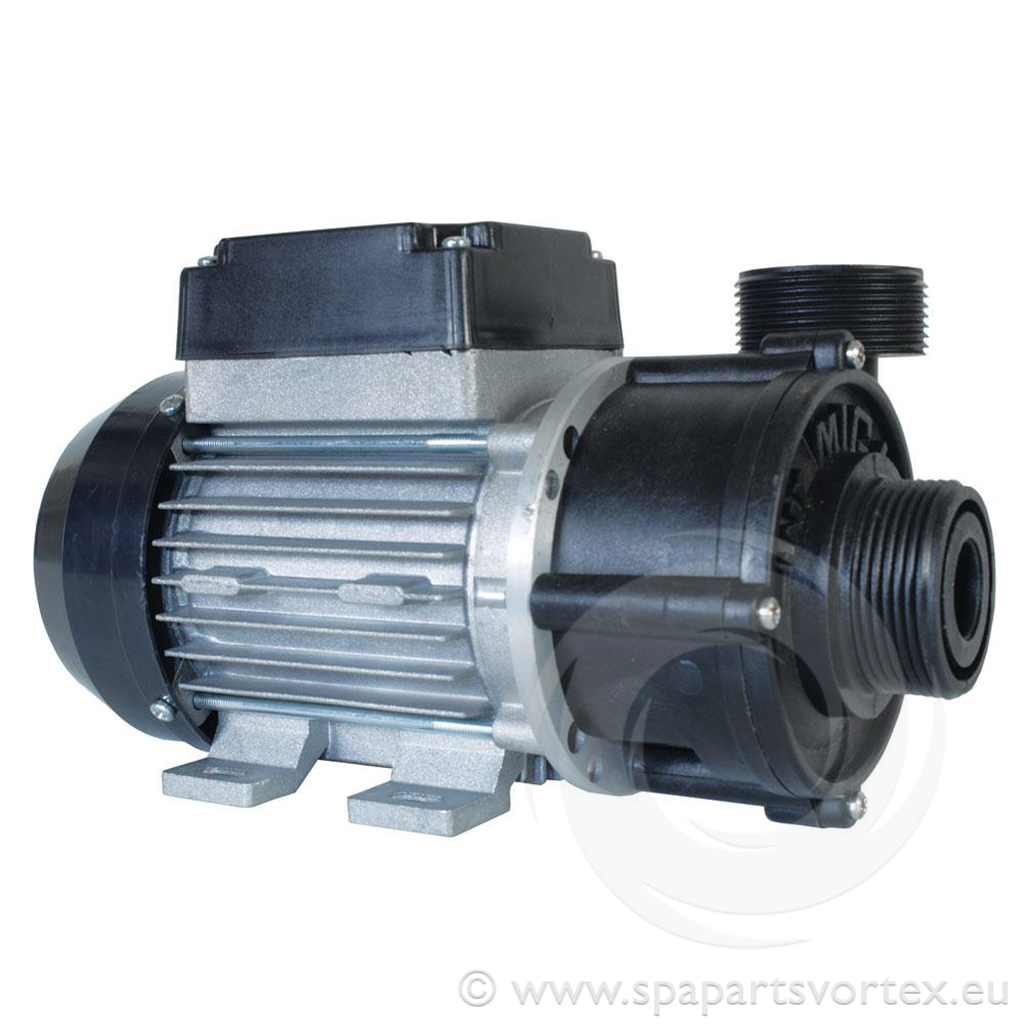

The Waterway Tiny Might motor is a 200 W, 230 V, 50 Hz single-speed motor commonly used in spas such as Coast Mountain Spas, Southwest Spas, and Sierra Spas. It operates at 0.28 A with speeds between 1.1 and 1.3 RPM and 2900 RPM shaft speed. The motor uses a 5 µF capacitor and has 1-inch plumbing connections. Electrical connections are 2 temporary wire stubs, requiring replacement with standard cable onsite. Unions are sold separately.
Specifications:
- Power: 200 W
- Voltage: 230 V
- Frequency: 50 Hz
- Current: 0.4 A
- Speed: 1.1 - 1.3 RPM
- Shaft Speed: 2900 RPM
- Capacitor: 5 µF
- Plumbing Connections: 1 inch
- Electrical Connections: 2 temporary wire stubs (replace onsite)
Dimensions: 250 mm (L) x 150 mm (H) x 125 mm (D)
Quantity: Sold in a box of 60.
Attributs du produit
| Marque : Waterway |
| Type de produit : Pompe de circulation |
| Hauteur : 150 mm |
| Puissance (HP) : 0.28 HP |
| Longueur : 250 mm |
| Puissance kW : 0.21 kW |
| Largeur : 120 mm |
| Référence de taille : 1 pouce |
| Vitesses : 1 vitesse |
| Amperage : 0.4 Amps |
