Balboa BP6013G1 Control Box WiFi Ready
2 Pumps + Circ, Blower, Ozone, Light
Product Description
Please use 'Balboa BP8 Control Box' if not in stock. Balboa BP8

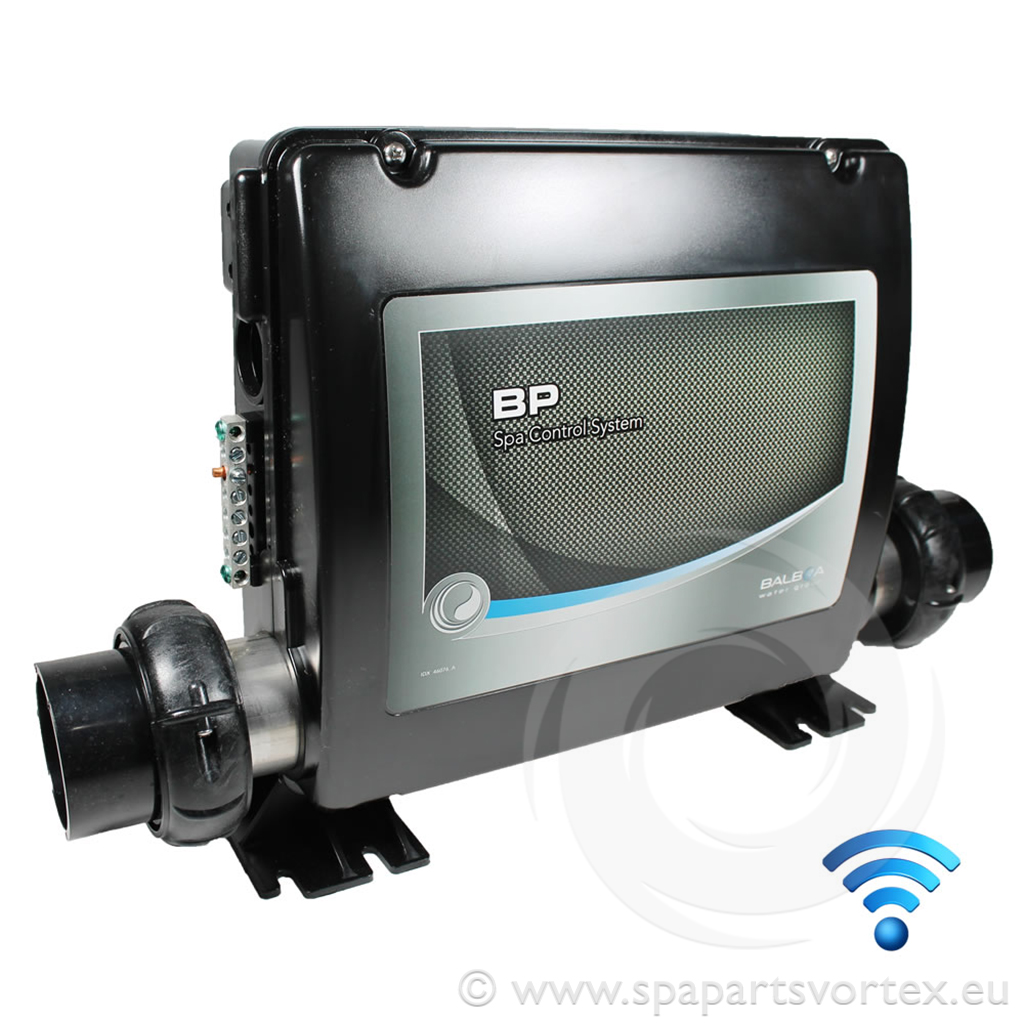

BP6013G1 is a spa control system with a 3.0 kW heater, designed to run two pumps, a blower, a circulation pump, ozone, and lighting. Pump 1 can be dual-speed or single-speed if used with a circulation pump. Pump 2 and the blower share a connection—only one may be installed at a time. It fits all Balboa TP Series topside panels and is WiFi-ready when used with a compatible module.
Note/: Factory preset for 1 x single-speed pump and a circulation pump. Alternative setups are easily done via test mode.
Specifications:
- Pump 1: Dual-speed or single-speed (with circulation pump)
- Pump 2 or Blower: Single-speed
- Circulation Pump: Yes
- Blower: Yes
- Ozone: Yes
- Lighting Output: 10 V @ 1 A
- Topside Compatibility: Fits all Balboa TP Series panels
- Heater: 3.0 kW
- WiFi: Ready (module required)
- Dimensions: 500 mm (L, including heater) x 120 mm (W) x 300 mm (H)
Quantity: Sold individually.
Product Attributes
| Brand : Balboa |
| Blower : Yes |
| Circ Pump : Yes |
| Max Depth : 100mm |
| Max Height : 270mm |
| Max Pumps : 2 |
| Max Length : 490mm |
| Power kW : 3.0kW |
| Product Type : Control Box |
| Total Comp. Relays : 4 |
| Plumbing Size : 2" |
Product Attributes
| Brand : Balboa |
| Blower : Yes |
| Circ Pump : Yes |
| Max Depth : 100mm |
| Max Height : 270mm |
| Max Pumps : 2 |
| Max Length : 490mm |
| Power kW : 3.0kW |
| Product Type : Control Box |
| Total Comp. Relays : 4 |
| Plumbing Size : 2" |
Product Description
Please use 'Balboa BP8 Control Box' if not in stock. Balboa BP8
BP6013G1 is a spa control system with a 3.0 kW heater, designed to run two pumps, a blower, a circulation pump, ozone, and lighting. Pump 1 can be dual-speed or single-speed if used with a circulation pump. Pump 2 and the blower share a connection—only one may be installed at a time. It fits all Balboa TP Series topside panels and is WiFi-ready when used with a compatible module.
Note/: Factory preset for 1 x single-speed pump and a circulation pump. Alternative setups are easily done via test mode.
Specifications:
- Pump 1: Dual-speed or single-speed (with circulation pump)
- Pump 2 or Blower: Single-speed
- Circulation Pump: Yes
- Blower: Yes
- Ozone: Yes
- Lighting Output: 10 V @ 1 A
- Topside Compatibility: Fits all Balboa TP Series panels
- Heater: 3.0 kW
- WiFi: Ready (module required)
- Dimensions: 500 mm (L, including heater) x 120 mm (W) x 300 mm (H)
Quantity: Sold individually.
