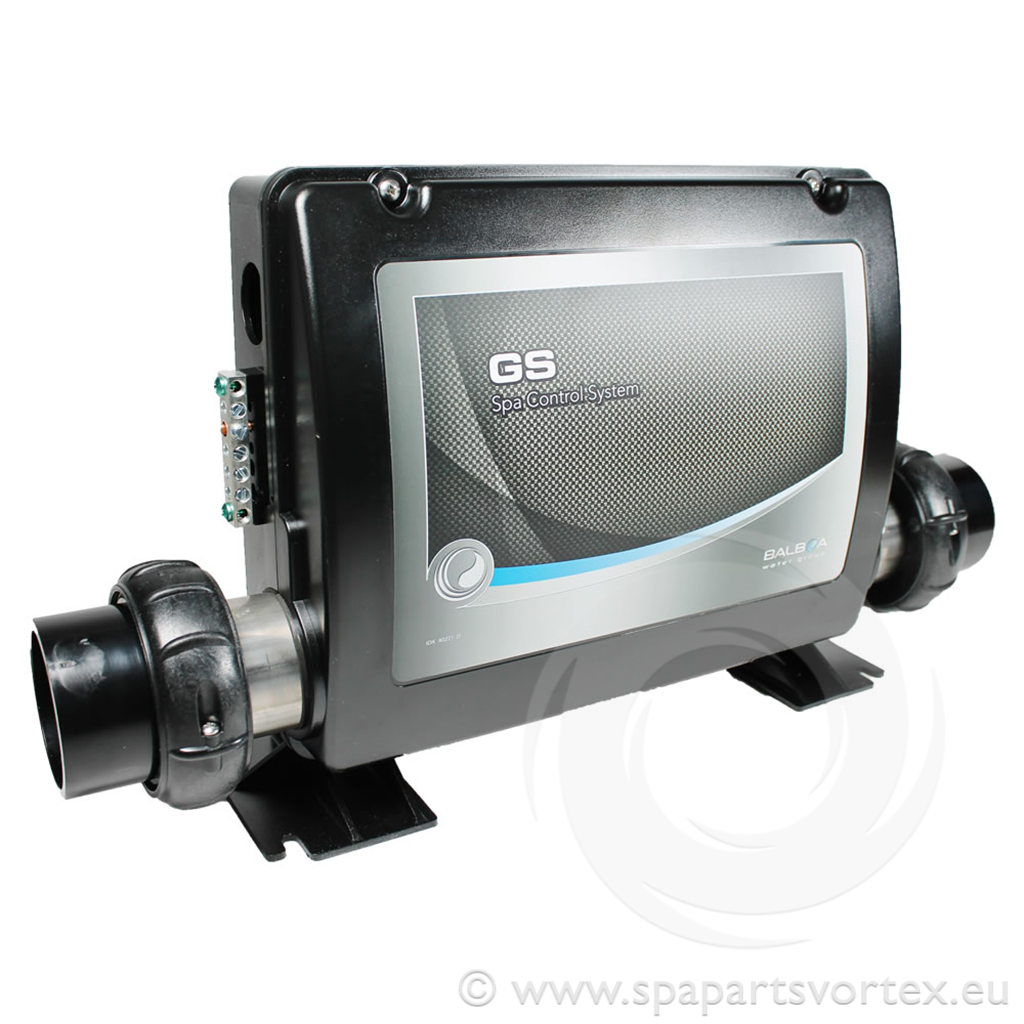

Balboa GS500Z Control Box 2.0kW

https://www.spapartsvortex.eu/web/image/product.template/222/image_1920?unique=e956f0e

Not Available For Sale

  • Brand
  • Blower
  • Circ Pump
  • Max Depth
  • Max Height
  • Max Pumps
  • Max Length
  • Power kW
  • Product Type
  • Total Comp. Relays
  • Plumbing Size

This combination does not exist.

Contact Us
  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description

Balboa GS500Z Control Box and Heater (2.0kW)

Discontinued: This product is no longer manufactured by Balboa. You can either replace the PCB by a GS500Z PCB or upgrade to a new pack (control box + topside).

Specifications:

  • Amperage: 16A
  • Pump 1: Single or dual-speed pump, with an optional circulation pump
  • Pump 2: Not supported
  • Air Blower: Not supported
  • Heater: 2kW
  • Ozone: 1 unit supported
  • Light: 1 unit, 12V
  • TV/AV: Connection point available

Compatibility:

  • Compatible with topside controls from the mini VL range, such as the VL200
  • Supports duplex VL range topside controls, such as VL404 and MVP260
  • Found in smaller spas, including Dream Maker, Strong Spas, Freeflow, and Eurospa models
  • Suitable for system upgrades
Product Attributes
Brand : Balboa
Blower : No
Circ Pump : Yes
Max Depth : 100mm
Max Height : 270mm
Max Pumps : 1
Max Length : 420mm
Power kW : 2.0kW
Product Type : Control Box
Total Comp. Relays : 2
Plumbing Size : 2"
Product Attributes
Brand : Balboa
Blower : No
Circ Pump : Yes
Max Depth : 100mm
Max Height : 270mm
Max Pumps : 1
Max Length : 420mm
Power kW : 2.0kW
Product Type : Control Box
Total Comp. Relays : 2
Plumbing Size : 2"
