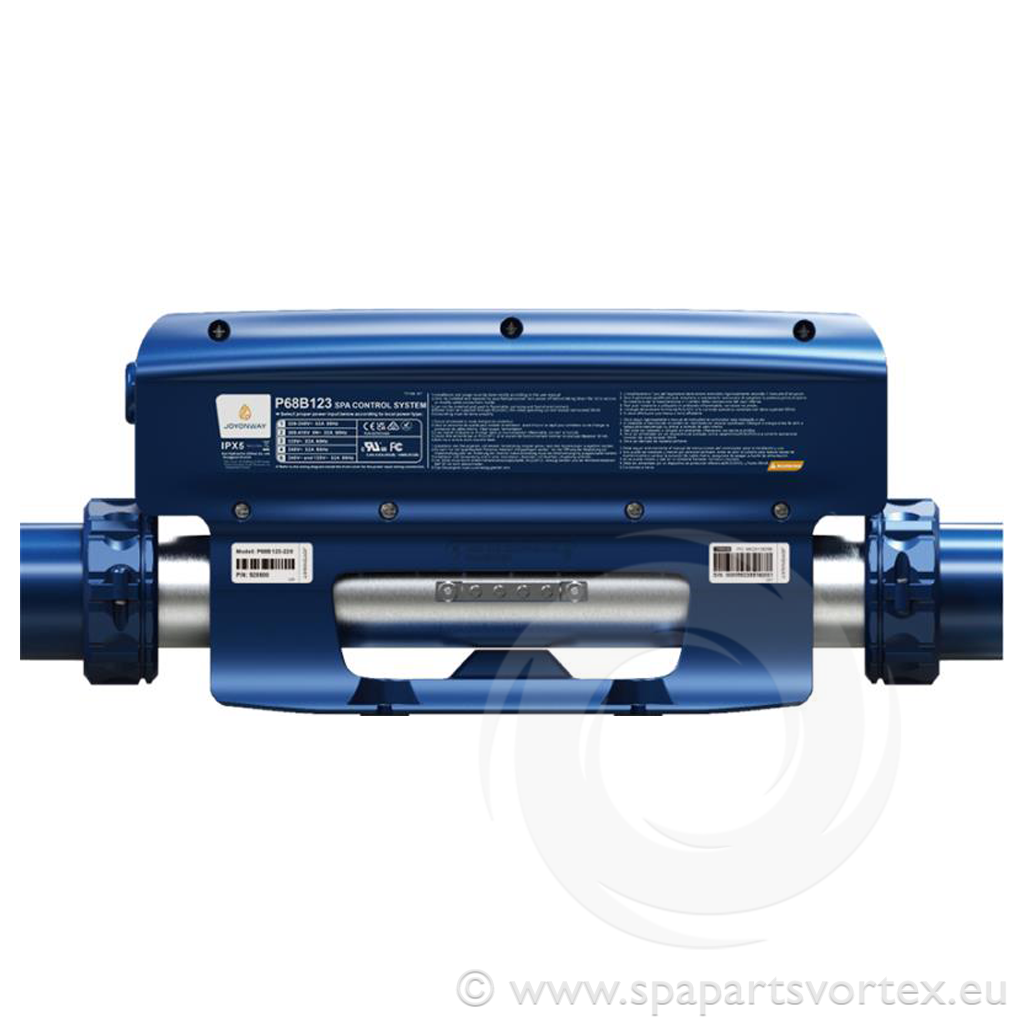

Joyonway P68B123 Control Box
Control Box with Heater Tube
Product Description
The Joyonway P68B123 Control Box is a versatile spa control system designed for retrofits and upgrades. It includes a 3.0 kW heater and supports up to two single-speed pumps or one pump and a blower. The system is compatible with various Joyonway topside panels, offering flexibility for different spa configurations.
Specifications:
- Pump Support: Up to 2 single-speed pumps or 1 pump and 1 blower
- Heater: 3.0 kW
- Ozone: 1 connection
- Light: 1 unit
- Blower: Supported
- Circulation Pump: Supported
- Electrical Supply: 230 V AC, 50 Hz; 32 A (single-phase) or 22 A (three-phase)
- Plumbing Size: 2-inch socket heater union sleeves
-
Dimensions:
- Length (including heater): 434 mm
- Length (box only): 380 mm
- Width: 100 mm
- Height: 205 mm
Items Included:
- Joyonway P68B123 control box with 3.0 kW heater
Quantity: Sold individually or in a box of 10
Product Attributes
| Brand : Joyonway |
| Power kW : 3.0kW |
| Product Type : Control Box |
| Plumbing Size : 2" |
| Model / Series : PB |
Product Attributes
| Brand : Joyonway |
| Power kW : 3.0kW |
| Product Type : Control Box |
| Plumbing Size : 2" |
| Model / Series : PB |
