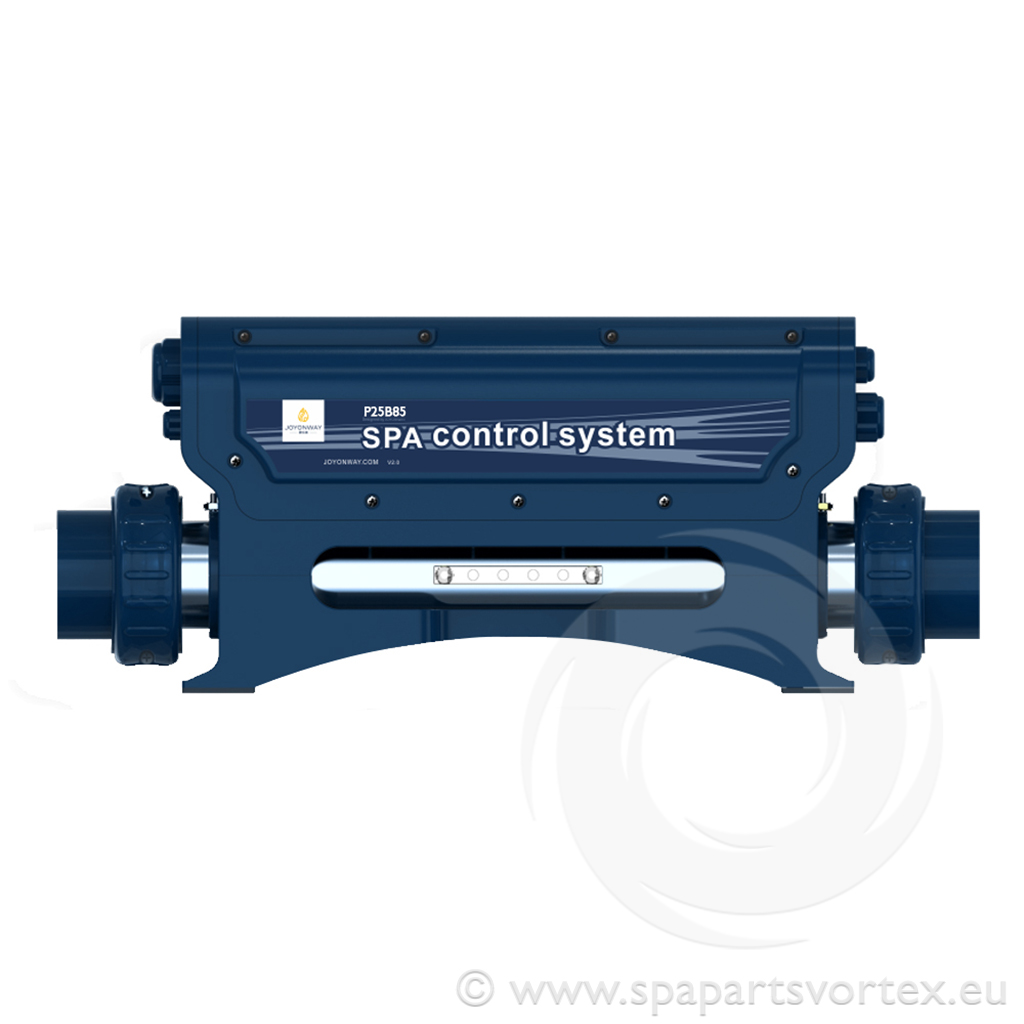

Joyonway P25B85 Control Box
Control Box with Heater Tube
Product Description
The Joyonway P25B85 control box is a 230 V, 50 Hz spa control system supporting a single or dual-speed pump, optional circulation pump, air blower, 2 kW heater, ozone, and 12 V lighting. It includes 2-inch socket heater union sleeves and AMP connectors. PB557 is the compatible panel.
Specifications:
- Pump 1: Single or dual-speed with optional circulation pump
- Air Blower: Supported
- Heater: 2 kW
- Ozone: Supported
- Light: 1 unit, 12 V
- Connections: 2-inch socket heater union sleeves, AMP connectors
- Dimensions (including heater): 434 mm (L) x 201 mm (H) x 82 mm (W)
- Dimensions (box only): 360 mm (L) x 201 mm (H) x 82 mm (W)
Items Included:
- Joyonway P25B85 control box
Quantity: Sold individually.
Product Attributes
| Brand : Joyonway |
| Power kW : 3.0kW |
| Product Type : Control Box |
| Plumbing Size : 2" |
| Model / Series : PB |
Product Attributes
| Brand : Joyonway |
| Power kW : 3.0kW |
| Product Type : Control Box |
| Plumbing Size : 2" |
| Model / Series : PB |
Product Description
The Joyonway P25B85 control box is a 230 V, 50 Hz spa control system supporting a single or dual-speed pump, optional circulation pump, air blower, 2 kW heater, ozone, and 12 V lighting. It includes 2-inch socket heater union sleeves and AMP connectors. PB557 is the compatible panel.
Specifications:
- Pump 1: Single or dual-speed with optional circulation pump
- Air Blower: Supported
- Heater: 2 kW
- Ozone: Supported
- Light: 1 unit, 12 V
- Connections: 2-inch socket heater union sleeves, AMP connectors
- Dimensions (including heater): 434 mm (L) x 201 mm (H) x 82 mm (W)
- Dimensions (box only): 360 mm (L) x 201 mm (H) x 82 mm (W)
Items Included:
- Joyonway P25B85 control box
Quantity: Sold individually.
