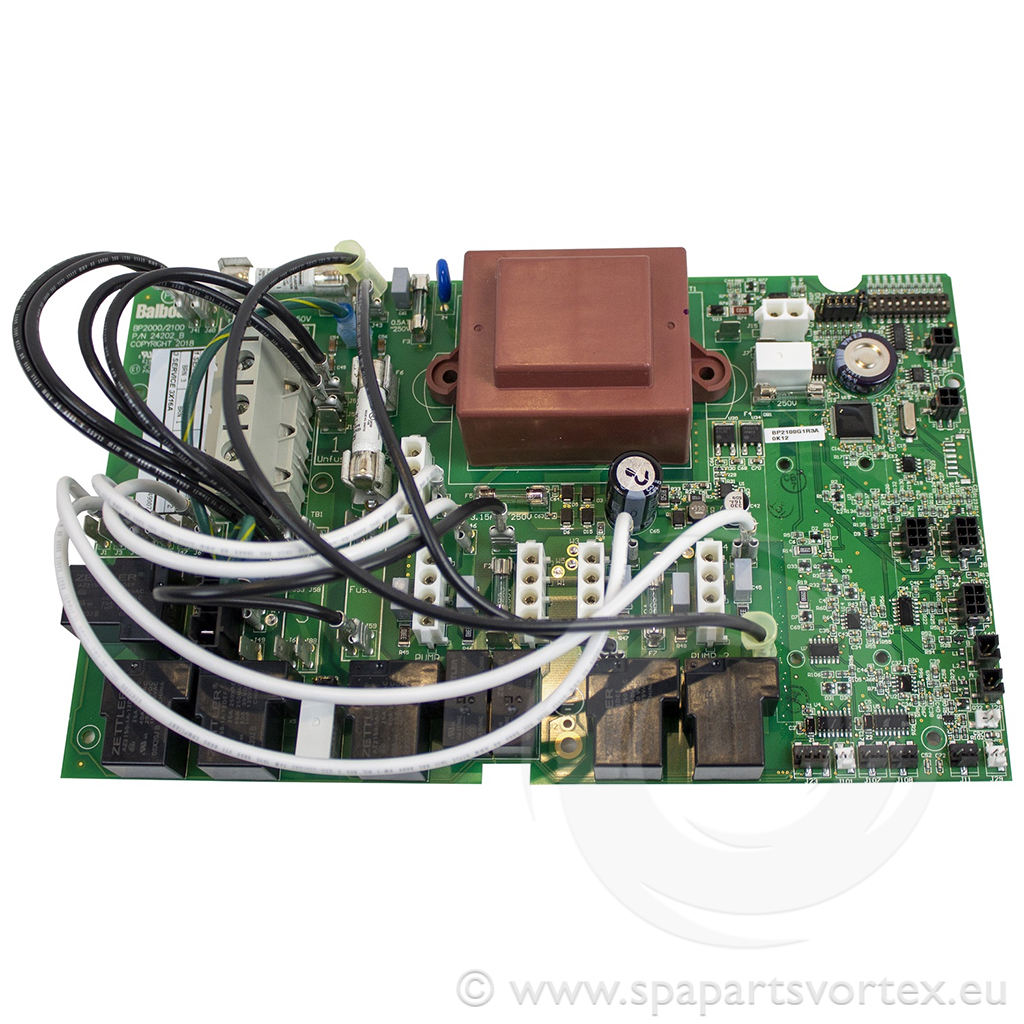

The Balboa BP2100G0 PCB is a replacement circuit board designed for the BP2100G0 control box, supporting a range of spa components including pumps, blower, heater, ozone, and lighting. It is compatible with topside controls from the TP range, such as TP900, TP800, TP600, and TP400.
Specifications:
Outputs:
- Pump 1: Dual-speed or single-speed (with circulation pump)
- Pump 2: Dual-speed (no blower) or single-speed
- Air Blower: Yes (if only 1 massage pump or Pump 2 is single speed)
- Ozone: 1 unit
- Light: 1 unit, 10V @ 1A max
- Radio, TV/AV: Connection point available
Box Quantity: 1 unit
