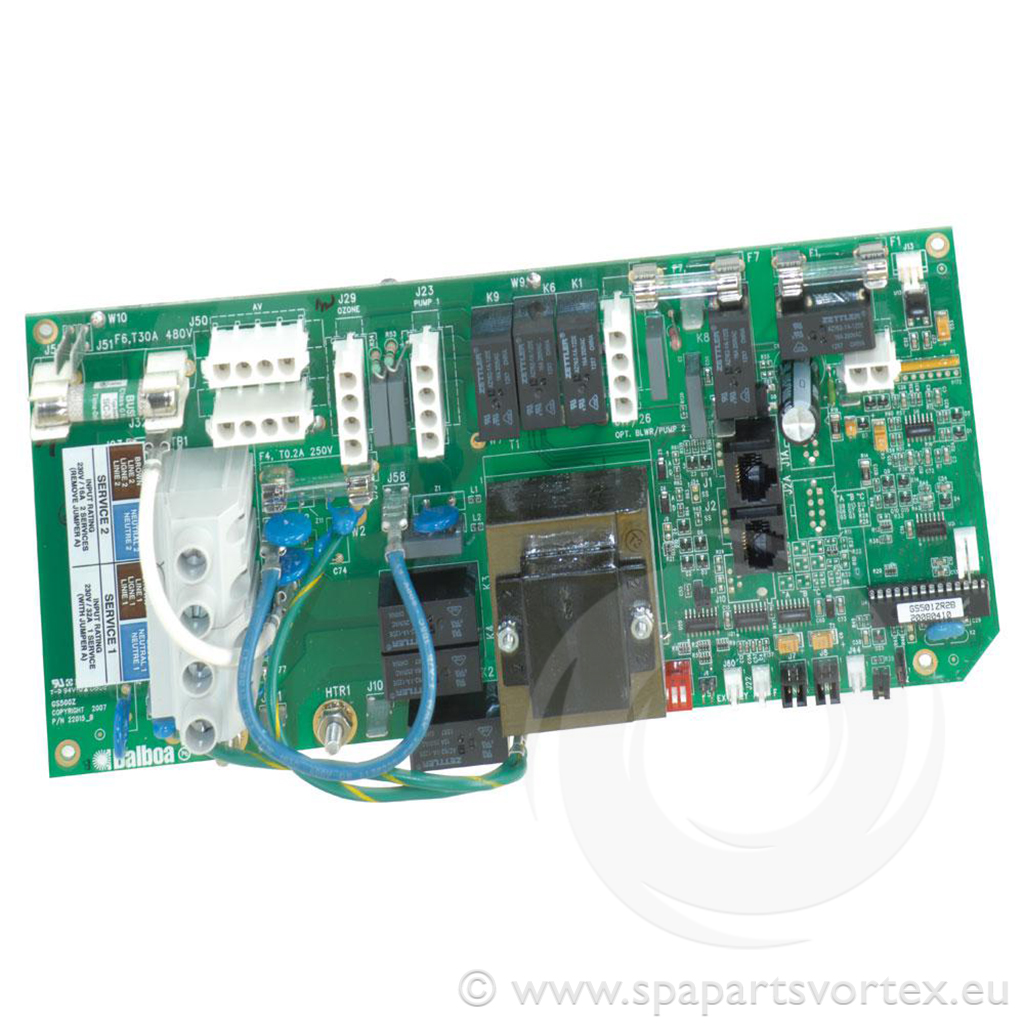

Balboa GS510SZ PCB
Product Description
BALBOA GS510SZ PCB is designed for use with the GS501SZ and GS510SZ control boxes, supporting pumps, blower, heater, ozone, light, and more. It is compatible with the serial standard VL range such as the VL700S and the VL701S.
Important Information: The reference used now by Balboa is G1552 and replaces previous GS501SZ & GS510SZ Control Boxes and PCBs (54515, 54516, 54650, 54517, 54518).
Features:
- Power: 230V / 50HZ
- Pump 1: Single or dual speed + circulation pump (if required)
- Pump 2: Single speed
- Air Blower: Yes (optional)
- Heater: Yes
- Ozone: Yes
- Light: 12V
- Sensor Style: M7 x 2
- Pressure Switch: No
- Compatible With:
- J17 port: Air blower or single-speed pump (10A fuse protection)
Compatibility:
- GS501SZ and GS510SZ control boxes. Commonly used with Spaform amongst others. Replaces old board 53642 GS510S.
- Topside controls from the serial standard VL range such as the VL700S and the VL701S.
Box Quantity: 1 unit per box.
Notes:
This PCB is used as a replacement for an existing GS501SZ or GS510SZ control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
Product Attributes
| Brand : Balboa |
| Length : 280mm |
| Model / Series : GS |
| Product Type : PCB |
| Width : 130mm |
Product Attributes
| Brand : Balboa |
| Length : 280mm |
| Model / Series : GS |
| Product Type : PCB |
| Width : 130mm |
