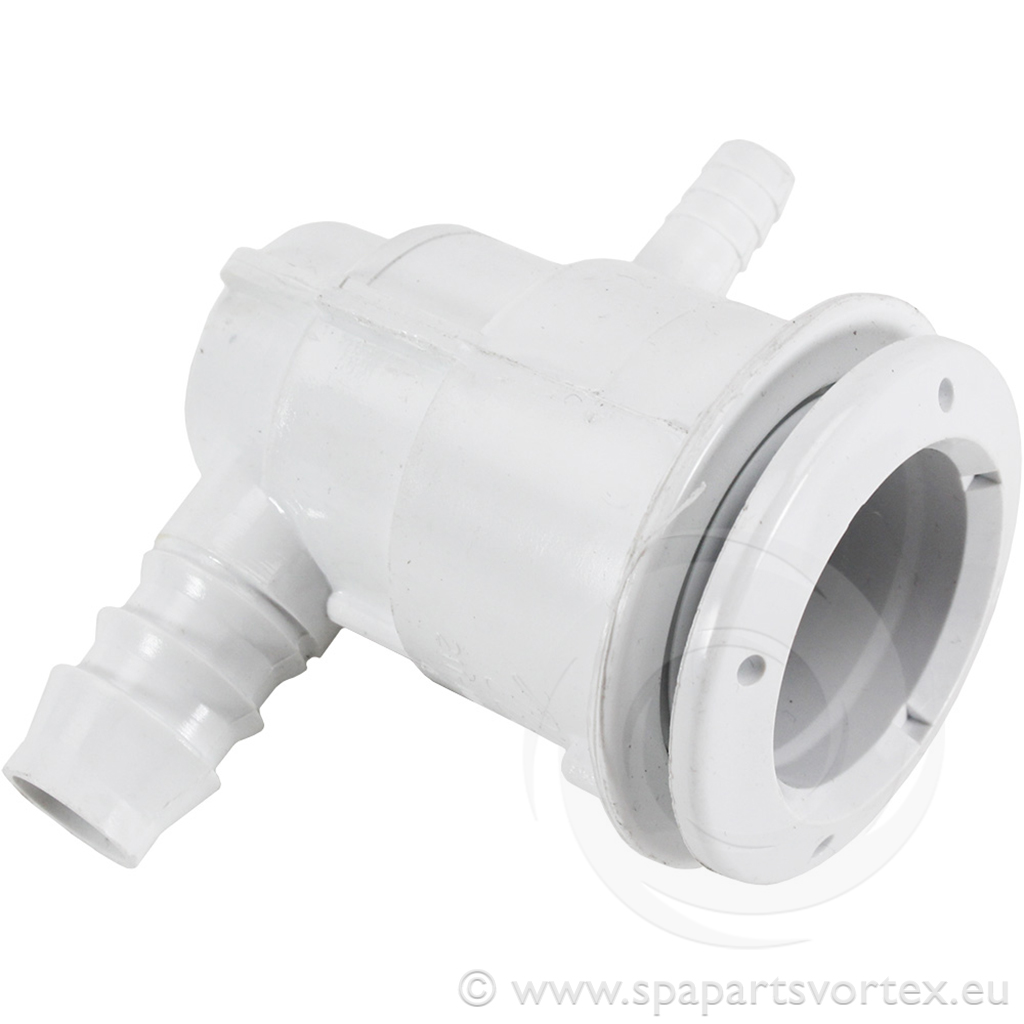

Adjustable Mini Jet Body (3/8 RB Air x 3/4 RB)
Product Description
Manufacturer: Waterway
Box Quantity: 1. Dimensions: Diameter of face: 67 mm Height: 80 mm Diameter of rear nozzle: 20mm. Fits Hole Size: 43 mm.
Colour / Finish: White. Connections: 3/8 inch Ribbed Barb Air X 3/4 inch Ribbed Barb. Commonly Used With: Spaform Spas 1998 - 2003 Hot Tubs: Utopia, Grand Canyon, Fraser Diamond
Additional notes: The valve inside is removable so you can then select the type of internal you want to use with it. This piece comes complete with the wall fitting to assemble and the 4-pronged valve assembly.
Assemble through the spa shell with silicone, you can use a gasket instead of the silicone but not both together as this often causes the gasket to splurge out the side and would cause a leak.
Box Quantity: 1. Dimensions: Diameter of face: 67 mm Height: 80 mm Diameter of rear nozzle: 20mm. Fits Hole Size: 43 mm.
Colour / Finish: White. Connections: 3/8 inch Ribbed Barb Air X 3/4 inch Ribbed Barb. Commonly Used With: Spaform Spas 1998 - 2003 Hot Tubs: Utopia, Grand Canyon, Fraser Diamond
Additional notes: The valve inside is removable so you can then select the type of internal you want to use with it. This piece comes complete with the wall fitting to assemble and the 4-pronged valve assembly.
Assemble through the spa shell with silicone, you can use a gasket instead of the silicone but not both together as this often causes the gasket to splurge out the side and would cause a leak.
Product Attributes
| Brand : Waterway |
| Hole Size : 43mm |
| Jet Series : Mini Jet |
| Plumbing Connection : 3/4" and 3/8" |
| Product Type : Jet Body |
Product Attributes
| Brand : Waterway |
| Hole Size : 43mm |
| Jet Series : Mini Jet |
| Plumbing Connection : 3/4" and 3/8" |
| Product Type : Jet Body |
