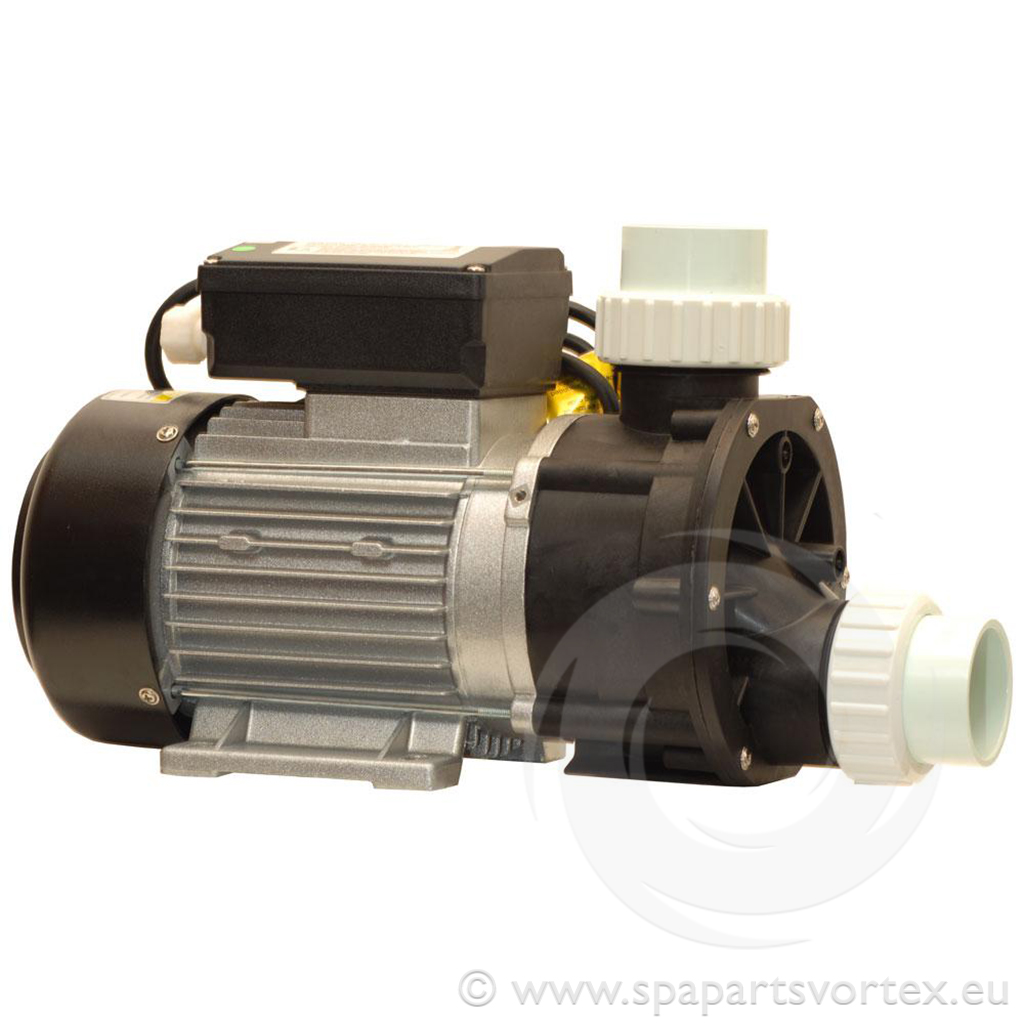

LX JA100 with Air Switch (Optional)
JA100 1.0 HP Circ Pump (With Optional Air Switch)
Product Description
The LX JA100 is a 1.0 HP single-speed circulation pump for hot tubs and whirlpool systems, featuring a built-in optional air switch for manual operation. It delivers a maximum flow of 320 L/min with an 11 m head. Designed with a centre discharge and self-draining functionality, this pump is compatible with 1.5-inch suction and discharge unions and is commonly found in Chinese-manufactured spas including AMC Winer Spa and Spa Serve.
Specifications:
- Motor Power: 1.0 HP (0.75 kW)
- Current Draw: 3.8 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
- Flow Rate: Max 320 L/min
- Max Head: 11 m
-
Motor Protection: Thermally protected with 15 µF capacitor
- Air Switch: Built-in (optional use)
- Quantity: Sold individually.
Product Attributes
| Brand : LX |
| Height : 205 mm |
| HP : 1.0HP |
| Length : 350 mm |
| Power kW : 0.75 kW |
| Product Type : Circulation Pump |
| Width : 160 mm |
| Plumbing Size : 1.5" |
| Speeds : 1 speed |
Product Attributes
| Brand : LX |
| Height : 205 mm |
| HP : 1.0HP |
| Length : 350 mm |
| Power kW : 0.75 kW |
| Product Type : Circulation Pump |
| Width : 160 mm |
| Plumbing Size : 1.5" |
| Speeds : 1 speed |
Product Description
The LX JA100 is a 1.0 HP single-speed circulation pump for hot tubs and whirlpool systems, featuring a built-in optional air switch for manual operation. It delivers a maximum flow of 320 L/min with an 11 m head. Designed with a centre discharge and self-draining functionality, this pump is compatible with 1.5-inch suction and discharge unions and is commonly found in Chinese-manufactured spas including AMC Winer Spa and Spa Serve.
Specifications:
- Motor Power: 1.0 HP (0.75 kW)
- Current Draw: 3.8 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
- Flow Rate: Max 320 L/min
- Max Head: 11 m
-
Motor Protection: Thermally protected with 15 µF capacitor
- Air Switch: Built-in (optional use)
- Quantity: Sold individually.
