LX JA100 Superior Spec (No Air Switch)
JA100 1.0 HP Circ Pump (No Air Switch)
Product Description

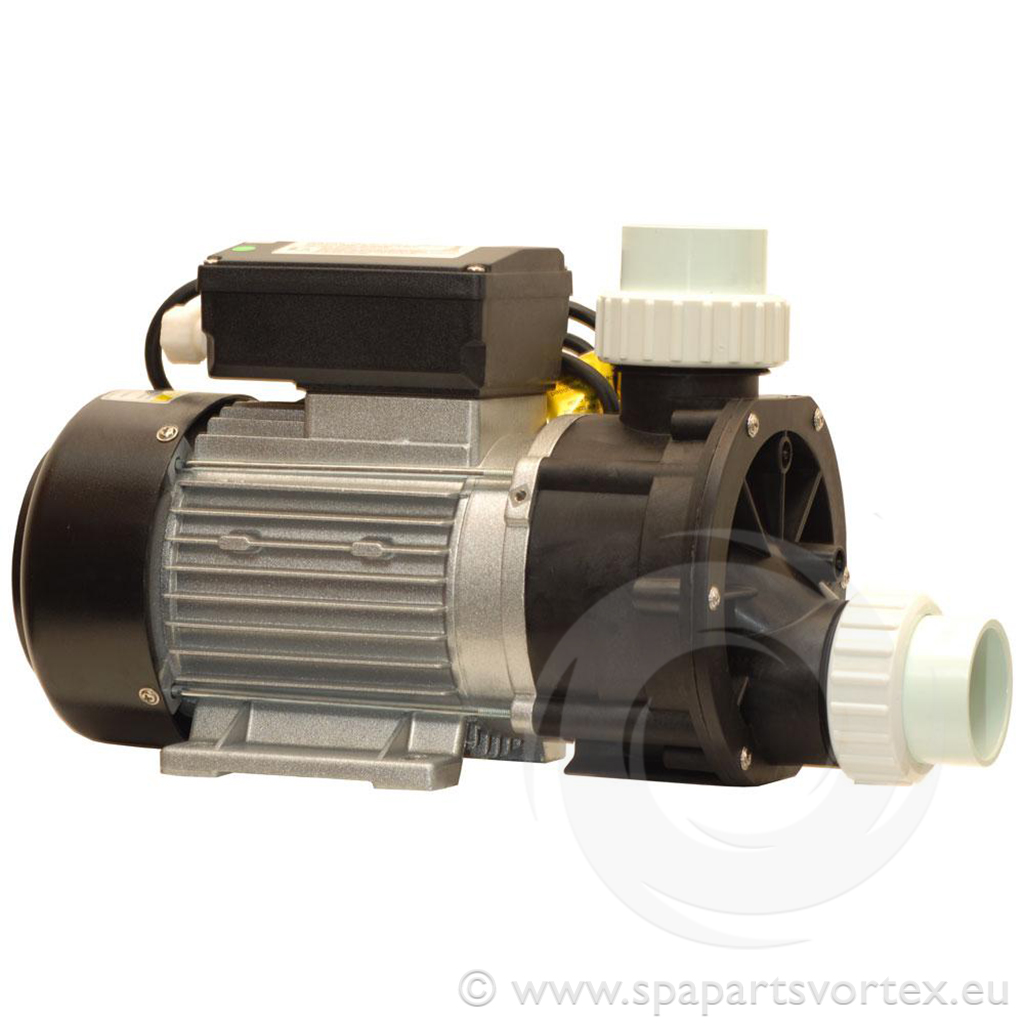

The LX JA100 is a 1.0 HP single-speed circulation pump used in hot tubs and whirlpool systems. This Superior Spas specification version is not fitted with an internal air switch. It provides a maximum flow of 320 L/min and is built with a self-draining centre discharge design. Compatible with 1.5-inch suction and discharge unions.
Specifications:
- Motor Power: 1.0 HP (0.75 kW)
- Current Draw: 3.8 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
- Flow Rate: Max 320 L/min
- Max Head: 11 m
-
Motor Protection: Thermally protected with 15 µF capacitor
- Quantity: Sold individually.
Product Attributes
| Brand : LX |
| Height : 205 mm |
| HP : 1.0HP |
| Length : 350 mm |
| Power kW : 0.75 kW |
| Product Type : Circulation Pump |
| Width : 160 mm |
| Plumbing Size : 1.5" |
| Speeds : 1 speed |
Product Attributes
| Brand : LX |
| Height : 205 mm |
| HP : 1.0HP |
| Length : 350 mm |
| Power kW : 0.75 kW |
| Product Type : Circulation Pump |
| Width : 160 mm |
| Plumbing Size : 1.5" |
| Speeds : 1 speed |
Product Description
The LX JA100 is a 1.0 HP single-speed circulation pump used in hot tubs and whirlpool systems. This Superior Spas specification version is not fitted with an internal air switch. It provides a maximum flow of 320 L/min and is built with a self-draining centre discharge design. Compatible with 1.5-inch suction and discharge unions.
Specifications:
- Motor Power: 1.0 HP (0.75 kW)
- Current Draw: 3.8 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
- Flow Rate: Max 320 L/min
- Max Head: 11 m
-
Motor Protection: Thermally protected with 15 µF capacitor
- Quantity: Sold individually.
