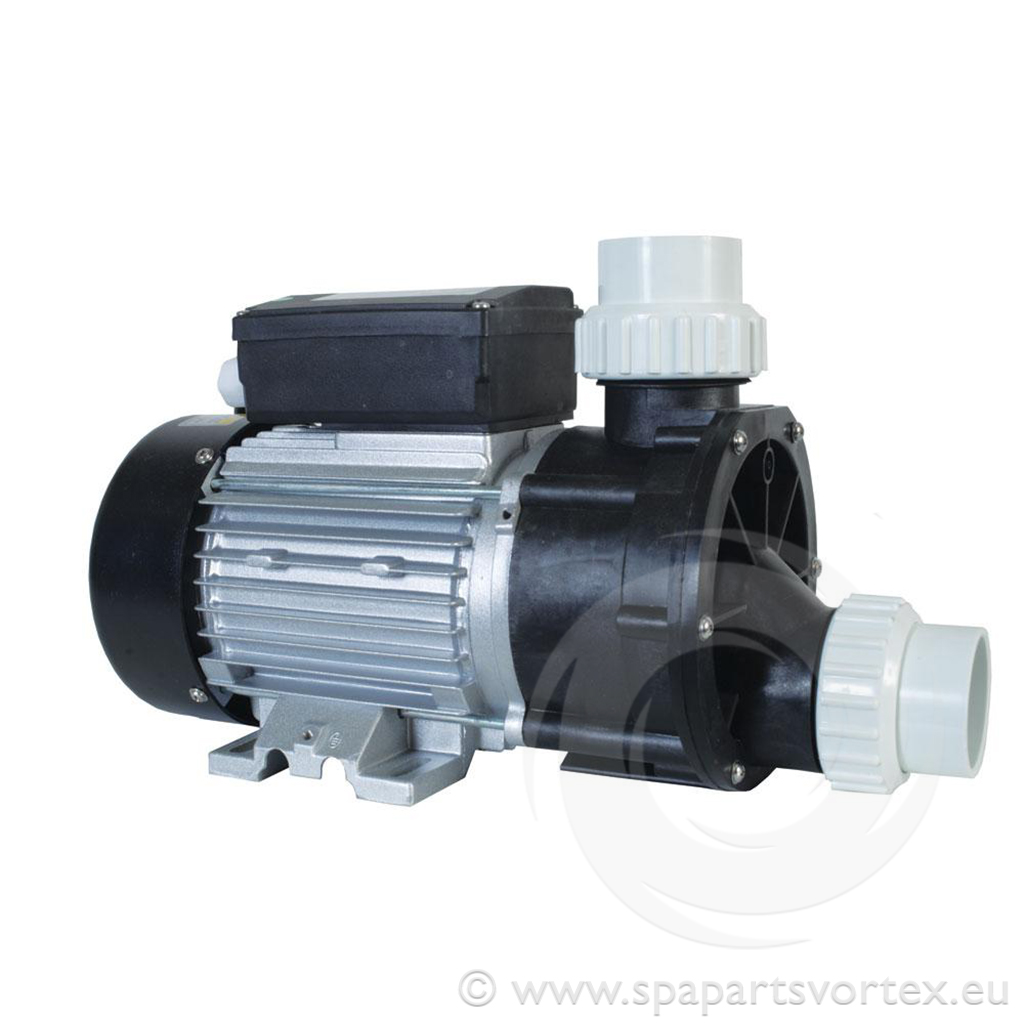

LX JA75 with Air Switch (Optional)
JA75 0.75 HP Circ Pump (With Optional Air Switch)
Product Description
The LX JA75 is a 0.75 HP single-speed circulation pump for hot tubs and whirlpool systems, fitted with an optional internal air switch for manual operation. It delivers a maximum flow rate of 250 L/min with a 12 m head. The pump has a centre discharge, self-draining design and is suitable for use with 1.5-inch suction and discharge unions. Commonly installed in spas such as AMC Winer Spa, Spa Serve, and other Chinese-manufactured models.
Specifications:
- Motor Power: 0.75 HP (0.55 kW)
- Current Draw: 3.2 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
- Flow Rate: Max 250 L/min
- Max Head: 12 m
-
Motor Protection: Thermally protected with 10 µF capacitor
- Air Switch: Built-in (optional use)
- Quantity: Sold individually.
Product Attributes
| Brand : LX |
| Height : 185 mm |
| HP : 0.75HP |
| Length : 325 mm |
| Power kW : 0.56 kW |
| Product Type : Circulation Pump |
| Width : 155 mm |
| Plumbing Size : 1.5" |
| Speeds : 1 speed |
Product Attributes
| Brand : LX |
| Height : 185 mm |
| HP : 0.75HP |
| Length : 325 mm |
| Power kW : 0.56 kW |
| Product Type : Circulation Pump |
| Width : 155 mm |
| Plumbing Size : 1.5" |
| Speeds : 1 speed |
Product Description
The LX JA75 is a 0.75 HP single-speed circulation pump for hot tubs and whirlpool systems, fitted with an optional internal air switch for manual operation. It delivers a maximum flow rate of 250 L/min with a 12 m head. The pump has a centre discharge, self-draining design and is suitable for use with 1.5-inch suction and discharge unions. Commonly installed in spas such as AMC Winer Spa, Spa Serve, and other Chinese-manufactured models.
Specifications:
- Motor Power: 0.75 HP (0.55 kW)
- Current Draw: 3.2 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
- Flow Rate: Max 250 L/min
- Max Head: 12 m
-
Motor Protection: Thermally protected with 10 µF capacitor
- Air Switch: Built-in (optional use)
- Quantity: Sold individually.
