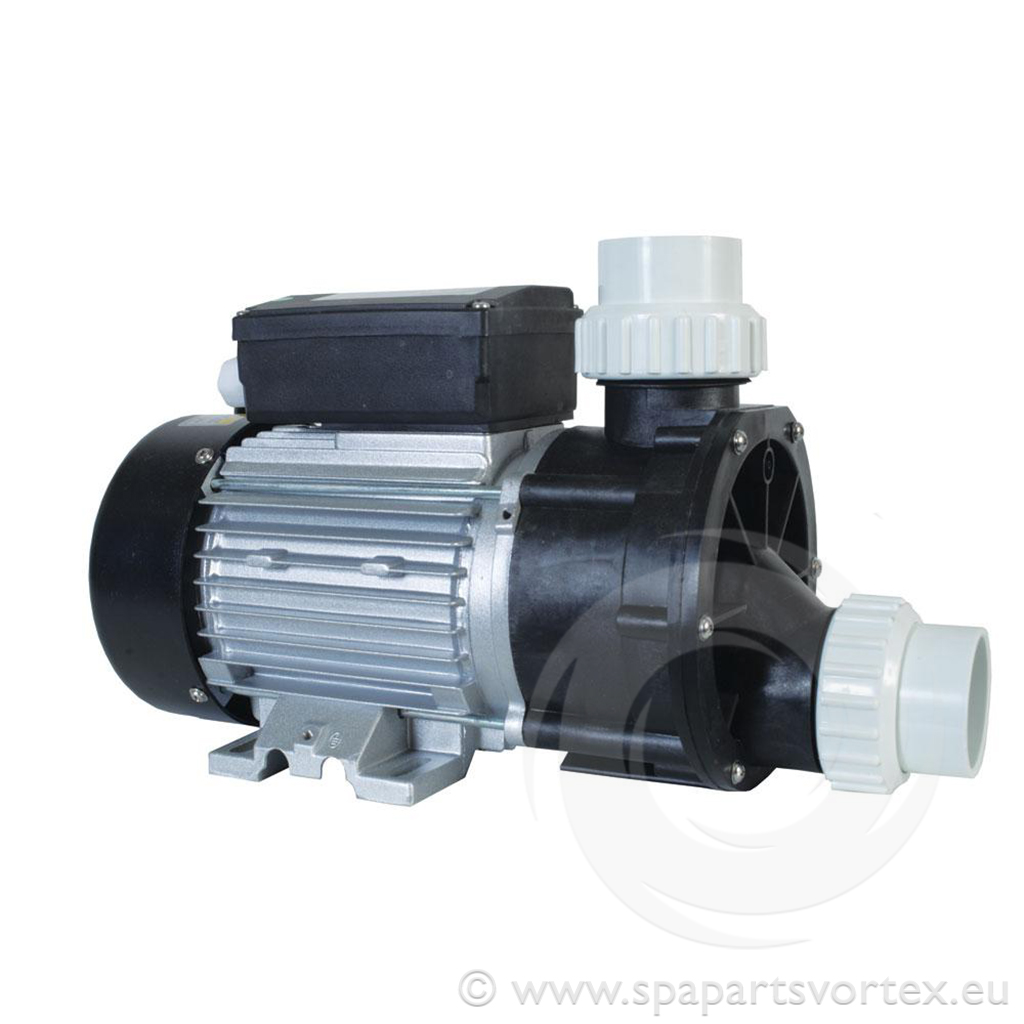

The LX JA75 is a 0.75 HP single-speed circulation pump for hot tubs and whirlpool systems, fitted with an optional internal air switch for manual operation. It features a 14 mm air bleed on the wet end faceplate and delivers a maximum flow rate of 250 L/min with a 12 m head. The pump has a centre discharge, self-draining design and is suitable for use with 1.5-inch suction and discharge unions. Commonly installed in spas such as AMC Winer Spa, Spa Serve, and other Chinese-manufactured models.
Specifications:
-
Motor Power: 0.75 HP (0.55 kW)
-
Current Draw: 3.2 A
-
Rotational Speed: 2,900 RPM
-
Plumbing Connections: 1.5-inch suction and discharge ports
-
Flow Rate: Max 250 L/min
-
Max Head: 12 m
-
Motor Protection: Thermally protected with 10 µF capacitor
-
Air Switch: Built-in (optional use)
-
Quantity: Sold individually.
