LX JA75 Superior Spec (No Air Switch)
JA75 0.75 HP Circ Pump (No Air Switch)
Product Description

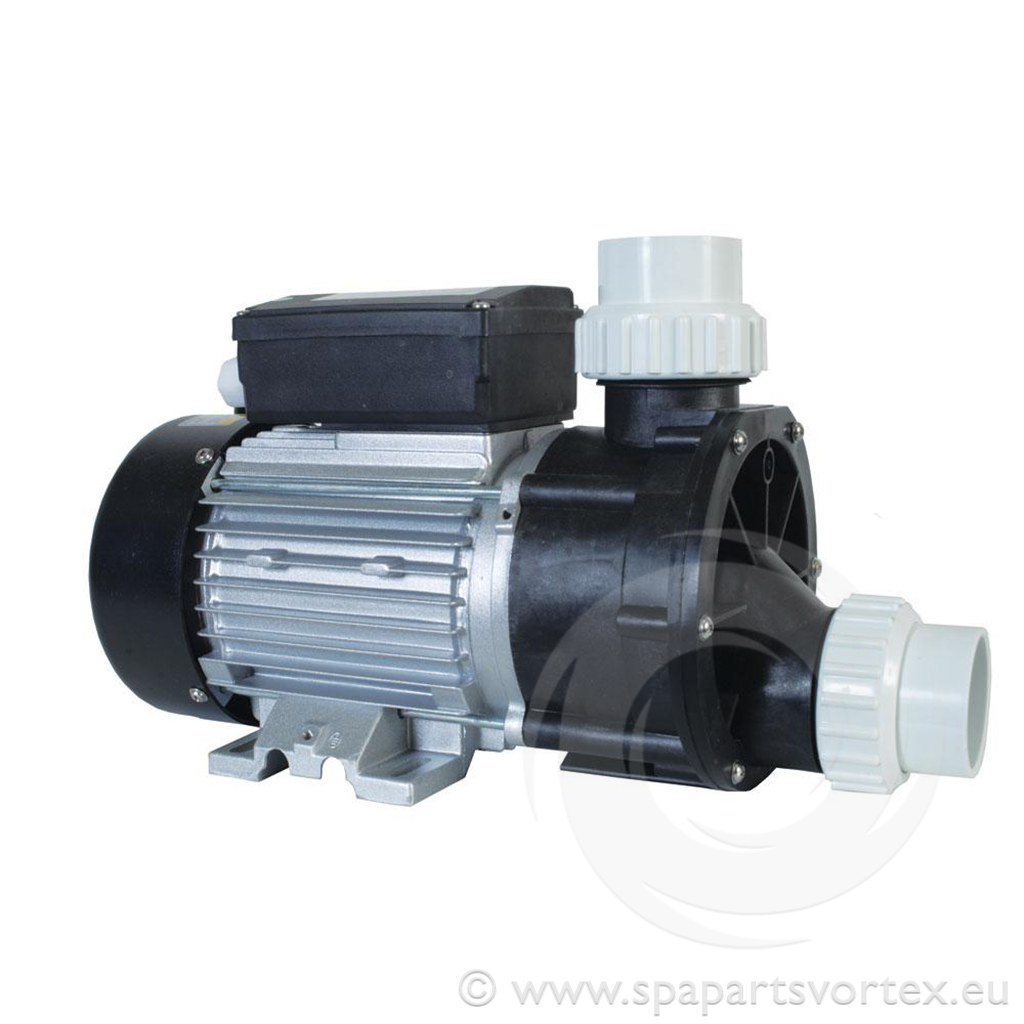

The LX JA75 is a 0.75 HP single-speed circulation pump used in hot tubs and whirlpool systems. This version, specified for Superior Spas, differs from the standard JA75 as it has no internal air switch and features 1/4" (11 mm) air bleeds on the wet end faceplate. Designed for centre discharge and self-draining, it delivers a maximum flow of 250 L/min with a 12 m head height. Suitable for systems using 1.5-inch suction and discharge unions and commonly found in Chinese-manufactured spas such as AMC Winer Spa and Spa Serve.
Specifications:
- Motor Power: 0.75 HP (0.55 kW)
- Current Draw: 3.2 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
- Flow Rate: Max 250 L/min
- Max Head: 12 m
- Motor Protection: Thermally protected with 10 µF capacitor
- Quantity: Sold individually.
Product Attributes
| Brand : LX |
| Height : 185 mm |
| HP : 0.75HP |
| Length : 325mm |
| Power kW : 0.56 kW |
| Product Type : Circulation Pump |
| Width : 155mm |
| Plumbing Size : 1.5" |
| Speeds : 1 speed |
| OEM : Superior Wellness |
| Amperage : 3.2 Amps |
Product Attributes
| Brand : LX |
| Height : 185 mm |
| HP : 0.75HP |
| Length : 325mm |
| Power kW : 0.56 kW |
| Product Type : Circulation Pump |
| Width : 155mm |
| Plumbing Size : 1.5" |
| Speeds : 1 speed |
| OEM : Superior Wellness |
| Amperage : 3.2 Amps |
