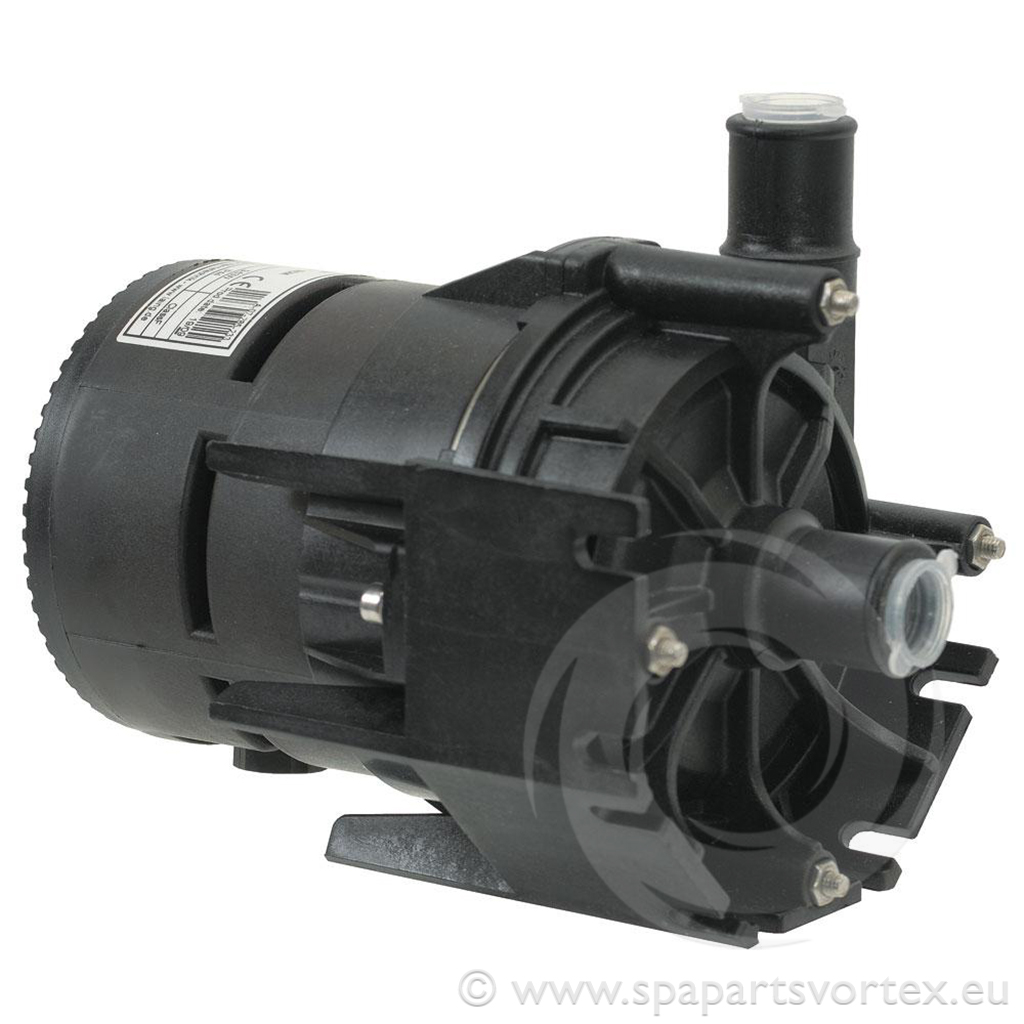

Laing E10 Fixed Speed Pump (Smooth Barb)

https://spaparts.glodo.cloud/web/image/product.template/930/image_1920?unique=e319591

Not Available For Sale

  • Brand
  • Product Type
  • Plumbing Connection
  • HP
  • Length
  • Width
  • Power kW
  • Height

This combination does not exist.

  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description


Laing E10 Fixed Speed Pump (Smooth Barb) – Technical Specifications

The Laing E10 Fixed Speed Pump is a compact circulation pump designed for continuous operation in spas and hot tubs, providing efficient water flow with low energy consumption.

Specifications:

  • Power Supply: 230 V, 50 Hz
  • Motor Power: 65 W
  • Rotational Speed: 3,200 RPM
  • Plumbing Connections: 3/4-inch smooth barb
  • Electrical Connections: Supplied without a power cord; existing 3-core cable can be used
  • Dimensions: Length: 154 mm; Height: 125 mm; Width: 105 mm

Features:

  • Design: Thermoplastic motor bracket adjustable to four different discharge angles
  • Construction: High-density ceramic bearing ball and graphite impeller bearing cap for enhanced efficiency and longevity
  • Performance: Clog-resistant open impeller dynamically balanced with carbon bearing for smooth, ultra-quiet operation
  • Compatibility: Commonly used in spa brands such as Artesian, Caldera, Dimension One, LA Spa, Iberspa, Island Spas, Saratoga, Canadian Spa, Hot Spring (replacement for Silent Flo 5000), Spa in a Box, Sundance, and Spring Spa

This pump ensures efficient and reliable operation in spa systems requiring continuous circulation.

Product Attributes
Brand: Laing
Product Type: Circulation Pump
Plumbing Connection: 3/4"
HP: 0.08 HP
Length: 152 mm
Width: 110 mm
Power kW: 0.06 kW
Height: 124 mm
Product Attributes
Brand: Laing
Product Type: Circulation Pump
Plumbing Connection: 3/4"
HP: 0.08 HP
Length: 152 mm
Width: 110 mm
Power kW: 0.06 kW
Height: 124 mm
Product Description


Laing E10 Fixed Speed Pump (Smooth Barb) – Technical Specifications

The Laing E10 Fixed Speed Pump is a compact circulation pump designed for continuous operation in spas and hot tubs, providing efficient water flow with low energy consumption.

Specifications:

  • Power Supply: 230 V, 50 Hz
  • Motor Power: 65 W
  • Rotational Speed: 3,200 RPM
  • Plumbing Connections: 3/4-inch smooth barb
  • Electrical Connections: Supplied without a power cord; existing 3-core cable can be used
  • Dimensions: Length: 154 mm; Height: 125 mm; Width: 105 mm

Features:

  • Design: Thermoplastic motor bracket adjustable to four different discharge angles
  • Construction: High-density ceramic bearing ball and graphite impeller bearing cap for enhanced efficiency and longevity
  • Performance: Clog-resistant open impeller dynamically balanced with carbon bearing for smooth, ultra-quiet operation
  • Compatibility: Commonly used in spa brands such as Artesian, Caldera, Dimension One, LA Spa, Iberspa, Island Spas, Saratoga, Canadian Spa, Hot Spring (replacement for Silent Flo 5000), Spa in a Box, Sundance, and Spring Spa

This pump ensures efficient and reliable operation in spa systems requiring continuous circulation.
