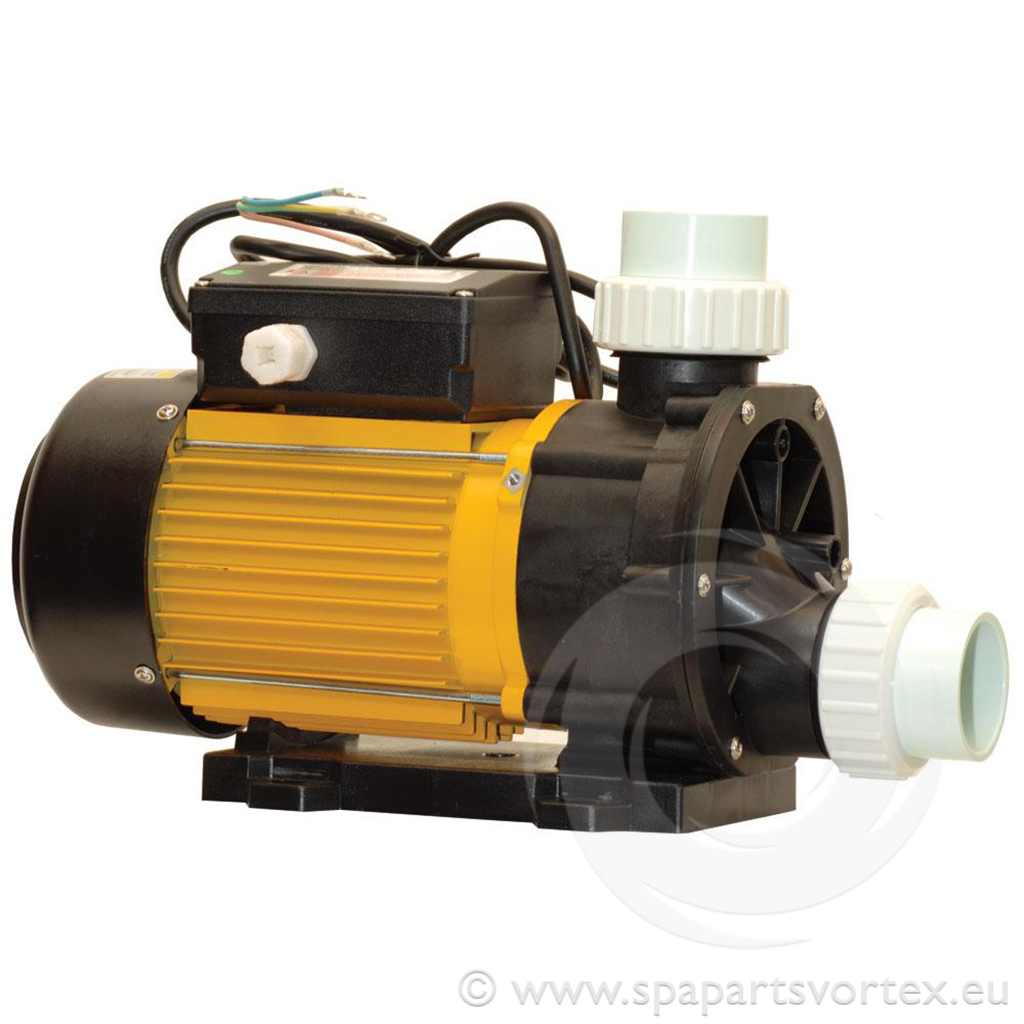

LX TDA100 with Air Switch (optional)
Product Description
LX TDA100 Circulation Pump 1.0 HP with Optional Air Switch – Technical Specifications
The LX TDA100 is a single-speed, 1.0 HP circulation pump designed for hot tubs and whirlpool baths, featuring an optional air switch for manual operation.
Specifications:
- Power Supply: 230 V, 50 Hz
- Motor Power: 1.0 HP (0.75 kW)
- Current Draw: 3.8 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
- Dimensions: Length: 350 mm; Height: 190 mm; Depth: 140 mm
Features:
- Design: Center discharge with self-draining capability
- Construction: Thermally protected motor with a 15 µF capacitor
- Performance: Maximum flow rate of 200 L/min; maximum head of 10 m
- Compatibility: Suitable for various spa brands, including Chinese-manufactured models
This pump ensures efficient and reliable operation in spa and whirlpool systems.
