LX WTC50M Pump 0.33HP
Product Description

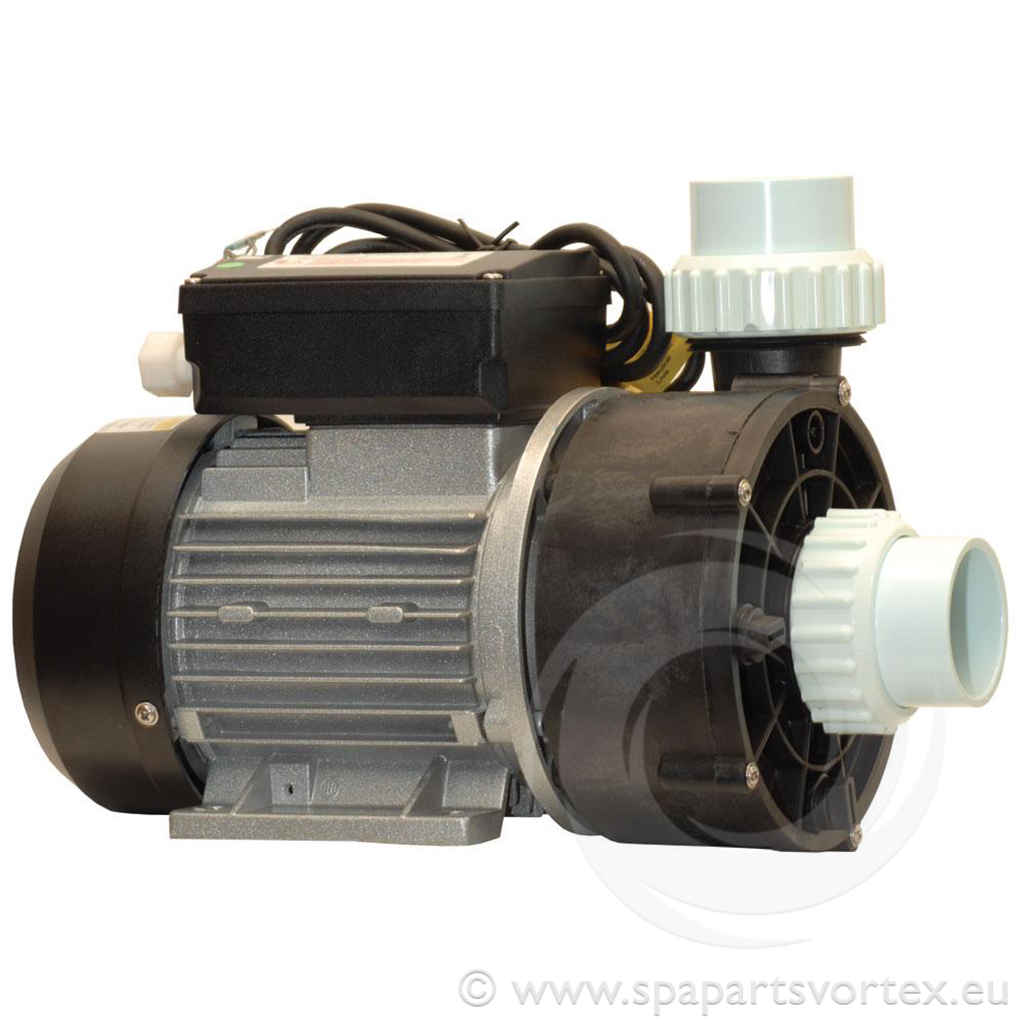

LX WTC50M Circulation Pump 0.33 HP – Technical Specifications
The LX WTC50M is a single-speed, 0.33 HP circulation pump designed for continuous operation in hot tubs and spas. Its low-speed operation ensures quiet performance, making it ideal for 24-hour filtration systems.
Specifications:
- Power Supply: 230 V, 50 Hz
- Motor Power: 0.33 HP (0.25 kW)
- Current Draw: 1.0 A
- Rotational Speed: 1,400 RPM
- Capacitor: 7 µF
- Plumbing Connections: 1.5-inch suction and discharge ports
- Dimensions: Length: 290 mm; Width: 160 mm; Height: 200 mm
Features:
- Design: Center suction with self-draining capability
- Construction: Thermally protected motor
- Performance: Maximum flow rate of 240 L/min; maximum head of 3.8 m
- Compatibility: Commonly used in Chinese-manufactured spas
This pump ensures reliable and efficient water circulation in spa and whirlpool systems.
Product Attributes
Brand: LX |
Product Type: Circulation Pump |
Plumbing Connection: 1.5" |
HP: 0.33 HP |
Power kW: 0.25 kW |
Length: 290 mm |
Width: 160 mm |
Height: 200 mm |
Product Attributes
Brand: LX |
Product Type: Circulation Pump |
Plumbing Connection: 1.5" |
HP: 0.33 HP |
Power kW: 0.25 kW |
Length: 290 mm |
Width: 160 mm |
Height: 200 mm |
