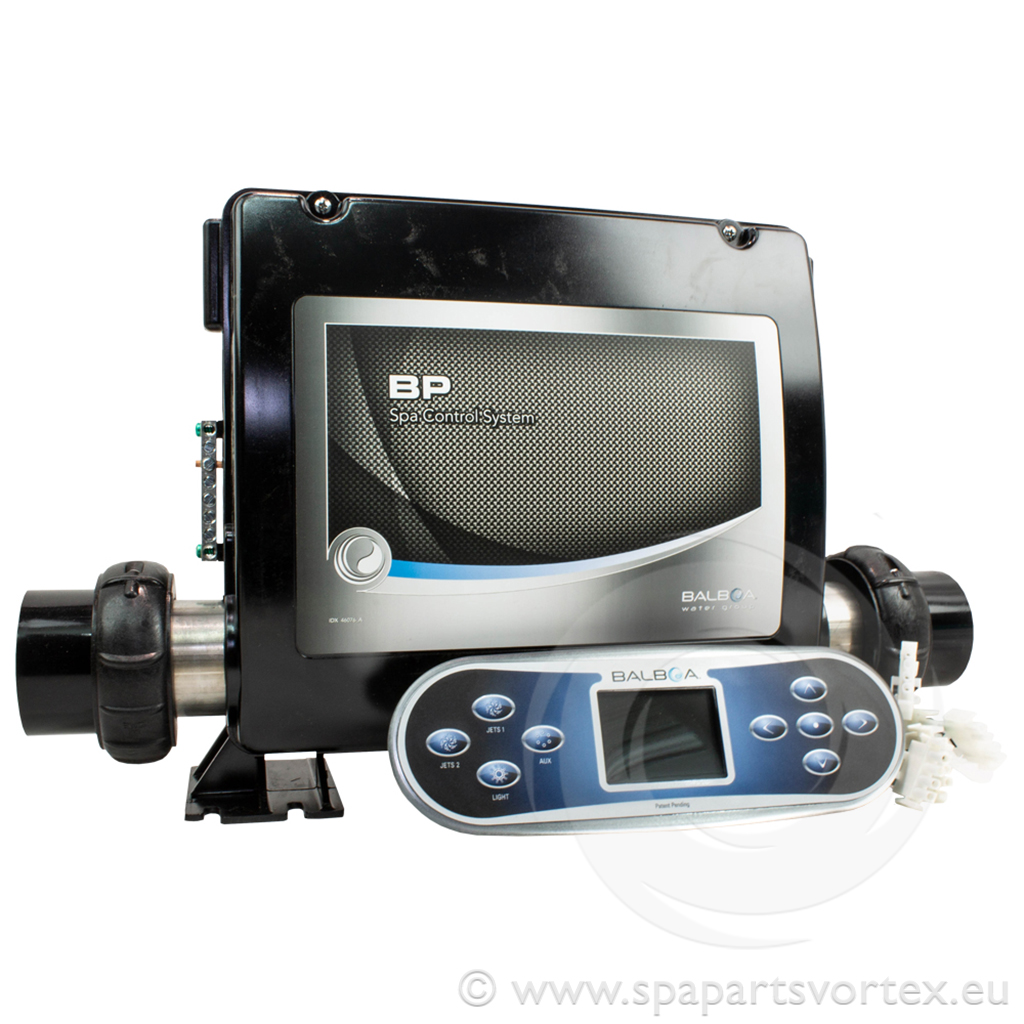

BP2100G1 + TP700
Control Box with Heater Tube + Matching Control Panel
Product Description
The Balboa BP2100G1 + TP700 Control System (3 kW) is a powerful and flexible spa solution designed for advanced setups. It includes the BP2100 control box and TP700 topside control, supporting multiple 2-speed pumps, an air blower, ozone, and spa lighting. The system features a J17 port for either an air blower or an additional single-speed pump, with a splitter cable (SKU: CA-CS893) required for setups using three pumps plus a blower. Programmable filtration cycles and advanced output options are included.
Specifications:
- Pump 1: 2-speed
- Pump 2: 2-speed
- Pump 3: 2-speed
- Blower: 1-speed
- Circulation Pump: Ready
- Ozone: Supported
- Spa Light: 10 VAC (1 A max)
- A/V (Stereo): Supported
- Heater: 3.0 kW
- Control Box Dimensions (including heater): 500 mm (L) x 300 mm (H) x 120 mm (W)
- Control Box Dimensions (box only): 330 mm (L) x 300 mm (H) x 120 mm (W)
- Topside Panel Dimensions: 250 mm (L) x 90 mm (H)
- Topside Buttons: Jets 1, Jets 2, Aux, Light, Up, Left, Select, Right, Down
Items Included:
- Balboa BP2100 control box
- TP700 topside control
Quantity: Sold individually.
Product Attributes
| Brand : Balboa |
| Power kW : 3.0kW |
| Product Type : Control Sytem Bundle |
| Plumbing Size : 2" |
| Model / Series : BP |
Product Attributes
| Brand : Balboa |
| Power kW : 3.0kW |
| Product Type : Control Sytem Bundle |
| Plumbing Size : 2" |
| Model / Series : BP |
Product Description
The Balboa BP2100G1 + TP700 Control System (3 kW) is a powerful and flexible spa solution designed for advanced setups. It includes the BP2100 control box and TP700 topside control, supporting multiple 2-speed pumps, an air blower, ozone, and spa lighting. The system features a J17 port for either an air blower or an additional single-speed pump, with a splitter cable (SKU: CA-CS893) required for setups using three pumps plus a blower. Programmable filtration cycles and advanced output options are included.
Specifications:
- Pump 1: 2-speed
- Pump 2: 2-speed
- Pump 3: 2-speed
- Blower: 1-speed
- Circulation Pump: Ready
- Ozone: Supported
- Spa Light: 10 VAC (1 A max)
- A/V (Stereo): Supported
- Heater: 3.0 kW
- Control Box Dimensions (including heater): 500 mm (L) x 300 mm (H) x 120 mm (W)
- Control Box Dimensions (box only): 330 mm (L) x 300 mm (H) x 120 mm (W)
- Topside Panel Dimensions: 250 mm (L) x 90 mm (H)
- Topside Buttons: Jets 1, Jets 2, Aux, Light, Up, Left, Select, Right, Down
Items Included:
- Balboa BP2100 control box
- TP700 topside control
Quantity: Sold individually.
