Vian Power Bundle 3 Pumps + Circulation Pump + Air
This product has no valid combination.
Product Description

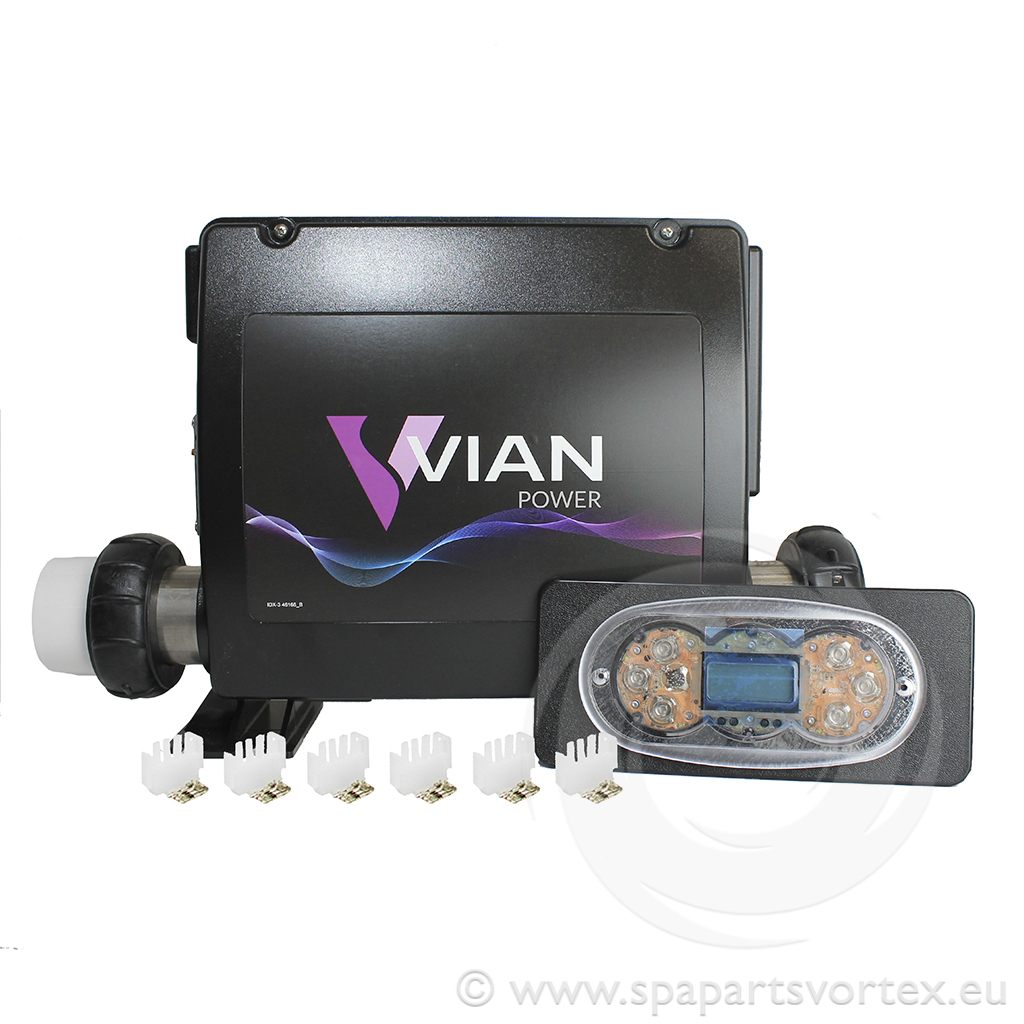

The Balboa System Vian Power 3kW 825 CZm8 is a versatile spa control system designed to support up to three pumps, a circulation pump, and an air blower, making it ideal for retrofits and system upgrades. It includes configurable setups and multiple output options, ensuring compatibility with a range of spa configurations.
Specifications:
- Voltage: 230 VAC
- Frequency: 50 Hz
- Pump Support:
- Up to 3 pumps (single or dual speed)
- Circulation pump
- Air blower
- System Outputs: Configurable setups for combinations of up to 3 pumps, circulation pump, and air blower
Topside Buttons:
Overlay not included; select based on system requirements:
- OL-60050: 1 pump
- OL-60051: 1 pump + Aux
- OL-60052: 2 pump + Aux
- OL-60053: 3 pump + Aux
Items Included:
- x6 AMP connectors (4 pins)
- x1 AMP connector (2 pins)
- x1 Bezel
- x1 Topside
- x1 System Vian Power 3kW 825 CZm8
Dimensions:
- Control Box:
- Length (including heater): 500 mm (19.69 inches)
- Length (box casing only): 320 mm (12.60 inches)
- Width: 120 mm (4.72 inches)
- Height: 300 mm (11.81 inches)
- Topside Panel:
- Dimensions: 178 mm (7.01 inches) x 86 mm (3.39 inches)
Box Quantity:
Sold individually.
Product Attributes
| Brand : VIAN |
| Product Type : Control Sytem Bundle |
| Power kW : 3.0kW |
| Circ Pump : Yes |
| Blower : Yes |
| Max Length : 490mm |
| Max Height : 295mm |
| Max Depth : 110mm |
| Max Pumps : 3 |
| Total Comp. Relays : 5 |
| Plumbing Size : 2" |
Product Attributes
| Brand : VIAN |
| Product Type : Control Sytem Bundle |
| Power kW : 3.0kW |
| Circ Pump : Yes |
| Blower : Yes |
| Max Length : 490mm |
| Max Height : 295mm |
| Max Depth : 110mm |
| Max Pumps : 3 |
| Total Comp. Relays : 5 |
| Plumbing Size : 2" |
Product Description
The Balboa System Vian Power 3kW 825 CZm8 is a versatile spa control system designed to support up to three pumps, a circulation pump, and an air blower, making it ideal for retrofits and system upgrades. It includes configurable setups and multiple output options, ensuring compatibility with a range of spa configurations.
Specifications:
- Voltage: 230 VAC
- Frequency: 50 Hz
- Pump Support:
- Up to 3 pumps (single or dual speed)
- Circulation pump
- Air blower
- System Outputs: Configurable setups for combinations of up to 3 pumps, circulation pump, and air blower
Topside Buttons:
Overlay not included; select based on system requirements:
- OL-60050: 1 pump
- OL-60051: 1 pump + Aux
- OL-60052: 2 pump + Aux
- OL-60053: 3 pump + Aux
Items Included:
- x6 AMP connectors (4 pins)
- x1 AMP connector (2 pins)
- x1 Bezel
- x1 Topside
- x1 System Vian Power 3kW 825 CZm8
Dimensions:
- Control Box:
- Length (including heater): 500 mm (19.69 inches)
- Length (box casing only): 320 mm (12.60 inches)
- Width: 120 mm (4.72 inches)
- Height: 300 mm (11.81 inches)
- Topside Panel:
- Dimensions: 178 mm (7.01 inches) x 86 mm (3.39 inches)
Box Quantity:
Sold individually.
