Balboa GS501SZ + VL701S
This product is no longer available.
Product Description

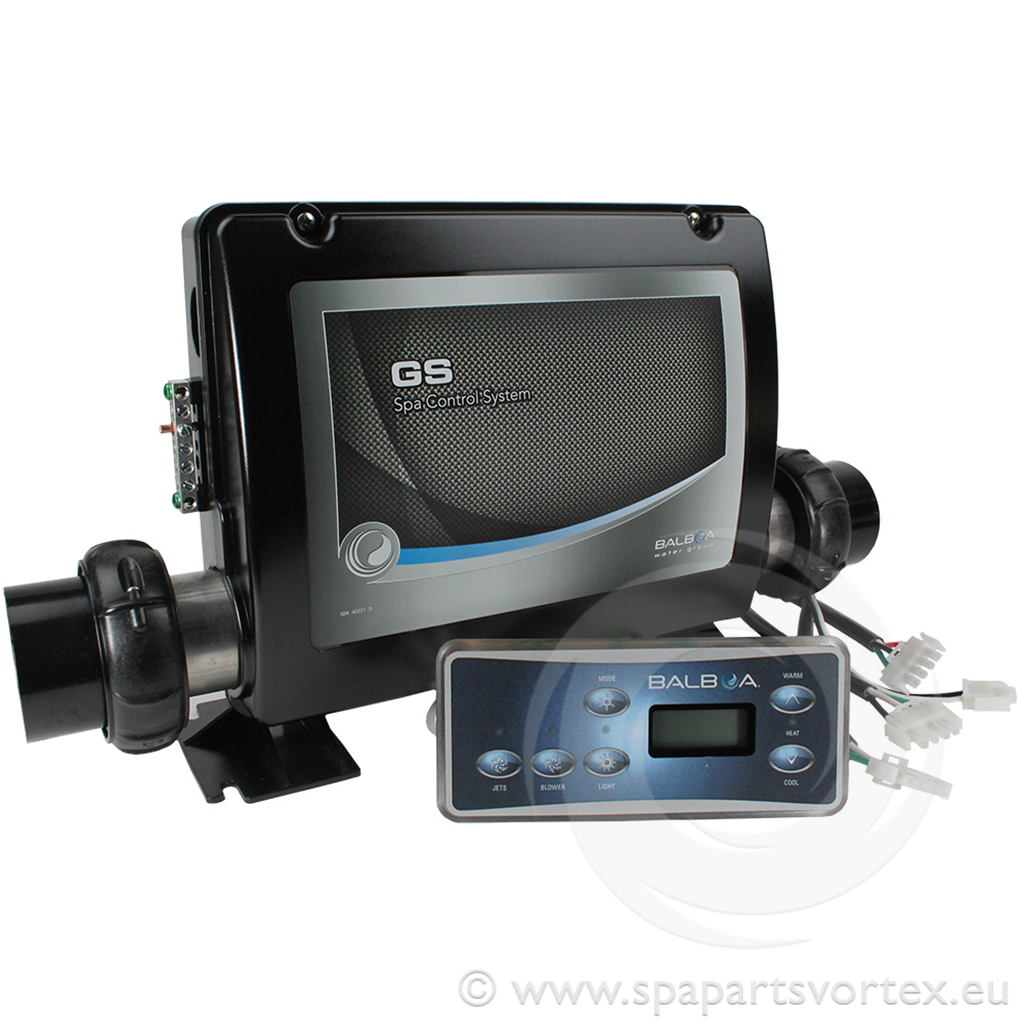

The Balboa GS501SZ + VL701S is a versatile spa control system designed for retrofits and upgrades. It includes the GS501SZ control box and VL701S topside control, supporting essential components like single or dual-speed pumps, an optional air blower, and a 3kW heater. With a J17 port for an additional single-speed pump or air blower, protected by a 10A quick-blow fuse, this system offers flexible configurations. The VL701S topside features intuitive buttons for seamless spa control.
Specifications:
- Pump Support:
- Pump 1: Single or dual-speed pump, with an optional circulation pump
- Additional Outputs:
- Air Blower: Optional (1 unit)
- Heater: 3kW
- Ozone: 1 connection
- Light: 1 unit, 12V
- AV: Radio, TV, or auxiliary connection available
- Topside Buttons:
- Jets, Blower, Mode, Light, Warm, and Cool
- Special Note:
- J17 port allows for an air blower or additional single-speed pump, protected by a 10A quick-blow fuse
Dimensions:
- Control Box:
- Length (including heater): 500 mm (19.69 inches)
- Length (box only): 320 mm (12.60 inches)
- Width: 120 mm (4.72 inches)
- Height: 270 mm (10.63 inches)
- Topside Panel:
- Dimensions: 187 mm (7.36 inches) x 83 mm (3.27 inches)
Box Quantity: Sold individually.
Product Attributes
| Brand : Balboa |
| Product Type : Control Sytem Bundle |
| Blower : Yes |
| Circ Pump : Yes |
| Max Depth : 100mm |
| Max Height : 270mm |
| Max Pumps : 1 |
| Max Length : 420mm |
| Power kW : 3.0kW |
| Total Comp. Relays : 3 |
| Plumbing Size : 2" |
