Product Description

Motor Only

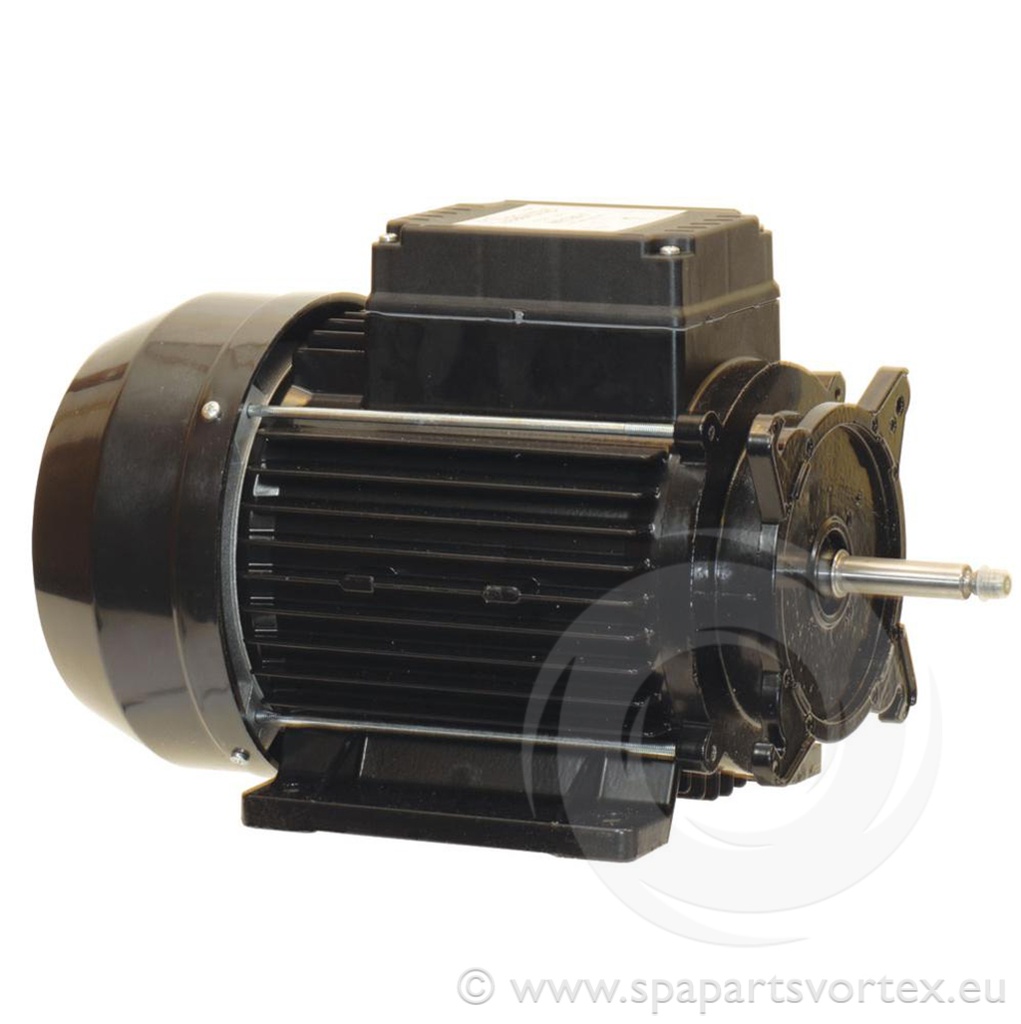

The EMG 56 Frame 2 HP single-speed motor is designed for spa pump replacement. It operates at 230 V, 50 Hz with 2 HP power, 9.5 A current, and 2800 RPM speed. The motor shaft diameter is 13 mm and sits 90 mm from the ground. No wiring is included; existing wiring must be reused. Commonly used with brands including Hot Tubs Direct, Knightswood Leisure, Touch Spas, Catalina, Hydropool, Hotspring, Hotspot, and Southwest Spas.

Specifications:

  • Power: 2 HP single speed
  • Voltage: 230 V
  • Frequency: 50 Hz
  • Amperage: 9.5 A
  • Speed: 2800 RPM
  • Capacitor: 30 µF
  • Shaft Diameter: 13 mm
  • Shaft Height from Ground: 90 mm
  • Plumbing Connections: N/A
  • Electrical Connections: No wiring included

Dimensions: 287 mm (L) x 240 mm (H) x 175 mm (D)

Quantity: Sold in a box of 60.

Product Attributes
Brand : EMG
Product Type : Pump Motor
Height : 240 mm
HP : 2.0HP
Length : 287mm
Power kW : 1.5 kW
Speeds : 1 speed
Width : 175mm
Amperage : 9.5 Amps
