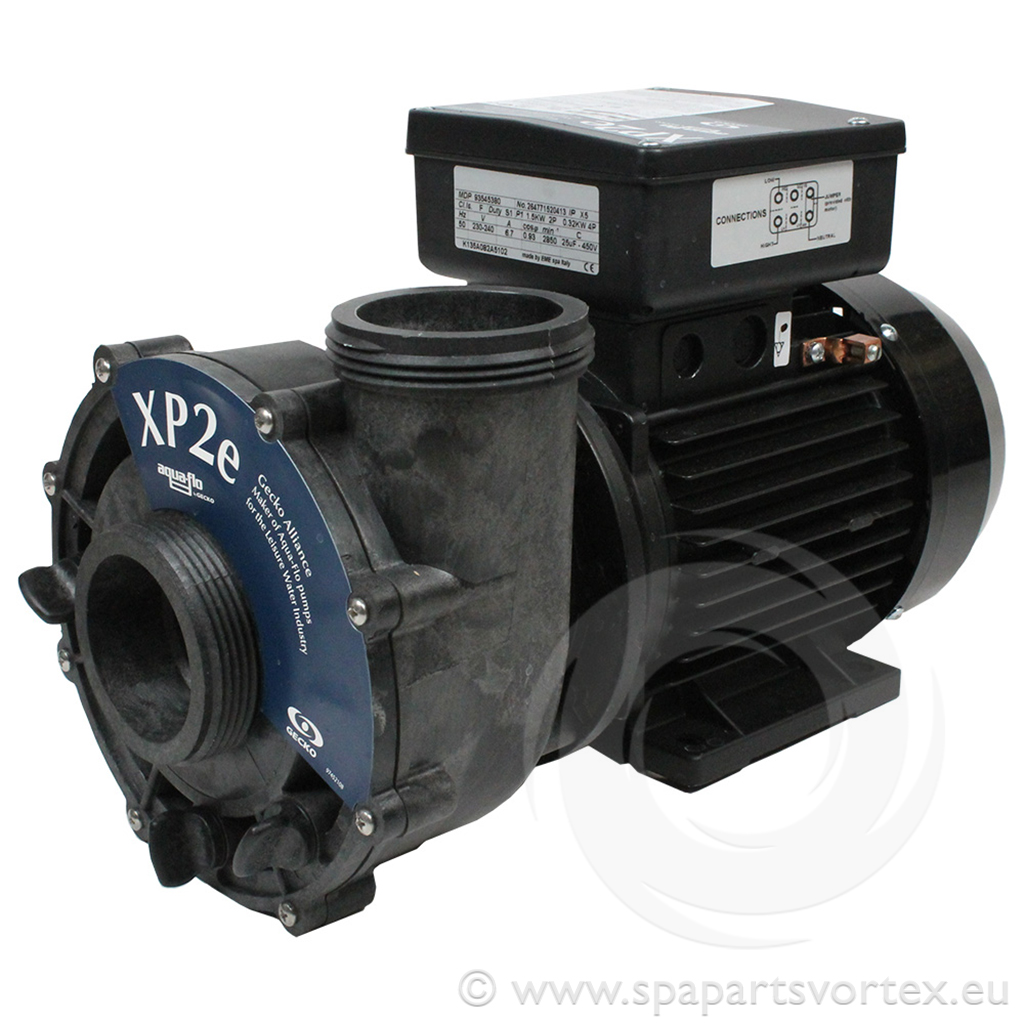

Aqua-flo by Gecko XP2e 3HP 1 speed (2x2)
Product Description
Aqua-Flo by Gecko XP2e 3 HP Single-Speed Pump – Technical Specifications
The Aqua-Flo by Gecko XP2e 3 HP Single-Speed Pump is designed for high-flow spa applications, enhancing water circulation and jet performance.
Specifications:
- Power Supply: 230 V, 50 Hz
- Motor Power: 3 HP
- Current Draw: 10.3 A
- Rotational Speed: 2,850 RPM
- Plumbing Connections: 2-inch suction and discharge ports
- Electrical Connections: Supplied without a power cord; existing 3-core cable can be used
- Dimensions: Length: 414 mm; Height: 243 mm; Width: 200 mm
Features:
- Design: Center suction with side discharge; wet end can be rotated to accommodate various installation configurations
- Construction: 56-frame motor with thermally protected insulation Class F
- Performance: Delivers up to 680 L/min, supporting multiple jets per pump
- Compatibility: Direct replacement for older XP2 models; suitable for various spa brands
This pump provides reliable and efficient performance for high-flow spa systems.
Product Attributes
Brand: Gecko |
Product Type: Massage Pump |
Plumbing Connection: 2" |
HP: 3.0 HP |
Length: 427 mm |
Width: 203 mm |
Power kW: 2.2 kW |
Height: 241 mm |
Speeds: 1 speed |
Product Attributes
Brand: Gecko |
Product Type: Massage Pump |
Plumbing Connection: 2" |
HP: 3.0 HP |
Length: 427 mm |
Width: 203 mm |
Power kW: 2.2 kW |
Height: 241 mm |
Speeds: 1 speed |
