  3. DXD-300E Circulation Pump 0.50HP
Discontinued

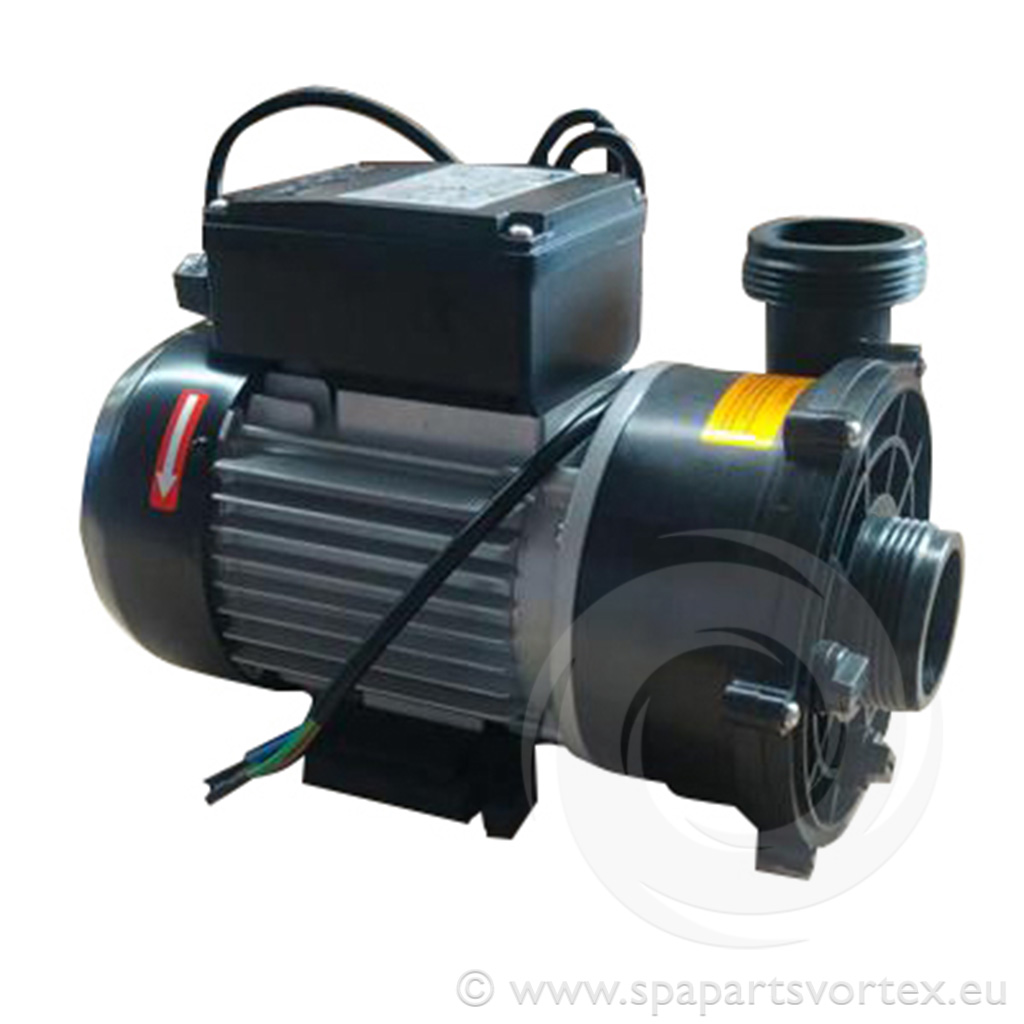

DXD-300E Circulation Pump 0.50HP

https://www.spapartsvortex.eu/web/image/product.template/645/image_1920?unique=f73c3c4

Not Available For Sale

  • Brand
  • Product Type
  • Height
  • HP
  • Length
  • Power kW
  • Width
  • Plumbing Size
  • Speeds
  • Amperage

This combination does not exist.

Contact Us
  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description

The DXD-300E is a 0.50 HP single-speed circulation pump designed for continuous operation in hot tubs and spas. It operates at 230 V, 50 Hz with an approximate current draw of 0.89 A and a motor speed of 1450 RPM. The pump delivers a maximum flow of 240 L/min and a maximum lift of 4.0 m. It features a 1.5-inch plumbing connection and includes a 30 µF capacitor. The unit is IPX5 rated with insulation class F and comes with a plain cable attached.

Specifications:

  • Motor Power: 0.50 HP
  • Voltage: 230 V
  • Frequency: 50 Hz
  • Current Draw: Approx. 0.89 A
  • RPM: 1450
  • Maximum Flow: 240 L/min
  • Maximum Lift: 4.0 m
  • Capacitor: 30 µF
  • Plumbing Connections: 1.5 inch
  • Protection Grade: IPX5
  • Insulation Class: F
  • Weight: 6.0 kg
  • Electrical Connections: Plain cable attached

Quantity: Sold individually.


Product Attributes
Brand : DXD
Product Type : Circulation Pump
Height : 218 mm
HP : 0.33HP
Length : 325mm
Power kW : 0.25 kW
Width : 156mm
Plumbing Size : 1.5"
Speeds : 1 speed
Amperage : 0.89 Amps
Product Attributes
Brand : DXD
Product Type : Circulation Pump
Height : 218 mm
HP : 0.33HP
Length : 325mm
Power kW : 0.25 kW
Width : 156mm
Plumbing Size : 1.5"
Speeds : 1 speed
Amperage : 0.89 Amps
Product Description

The DXD-300E is a 0.50 HP single-speed circulation pump designed for continuous operation in hot tubs and spas. It operates at 230 V, 50 Hz with an approximate current draw of 0.89 A and a motor speed of 1450 RPM. The pump delivers a maximum flow of 240 L/min and a maximum lift of 4.0 m. It features a 1.5-inch plumbing connection and includes a 30 µF capacitor. The unit is IPX5 rated with insulation class F and comes with a plain cable attached.

Specifications:

  • Motor Power: 0.50 HP
  • Voltage: 230 V
  • Frequency: 50 Hz
  • Current Draw: Approx. 0.89 A
  • RPM: 1450
  • Maximum Flow: 240 L/min
  • Maximum Lift: 4.0 m
  • Capacitor: 30 µF
  • Plumbing Connections: 1.5 inch
  • Protection Grade: IPX5
  • Insulation Class: F
  • Weight: 6.0 kg
  • Electrical Connections: Plain cable attached

Quantity: Sold individually.
