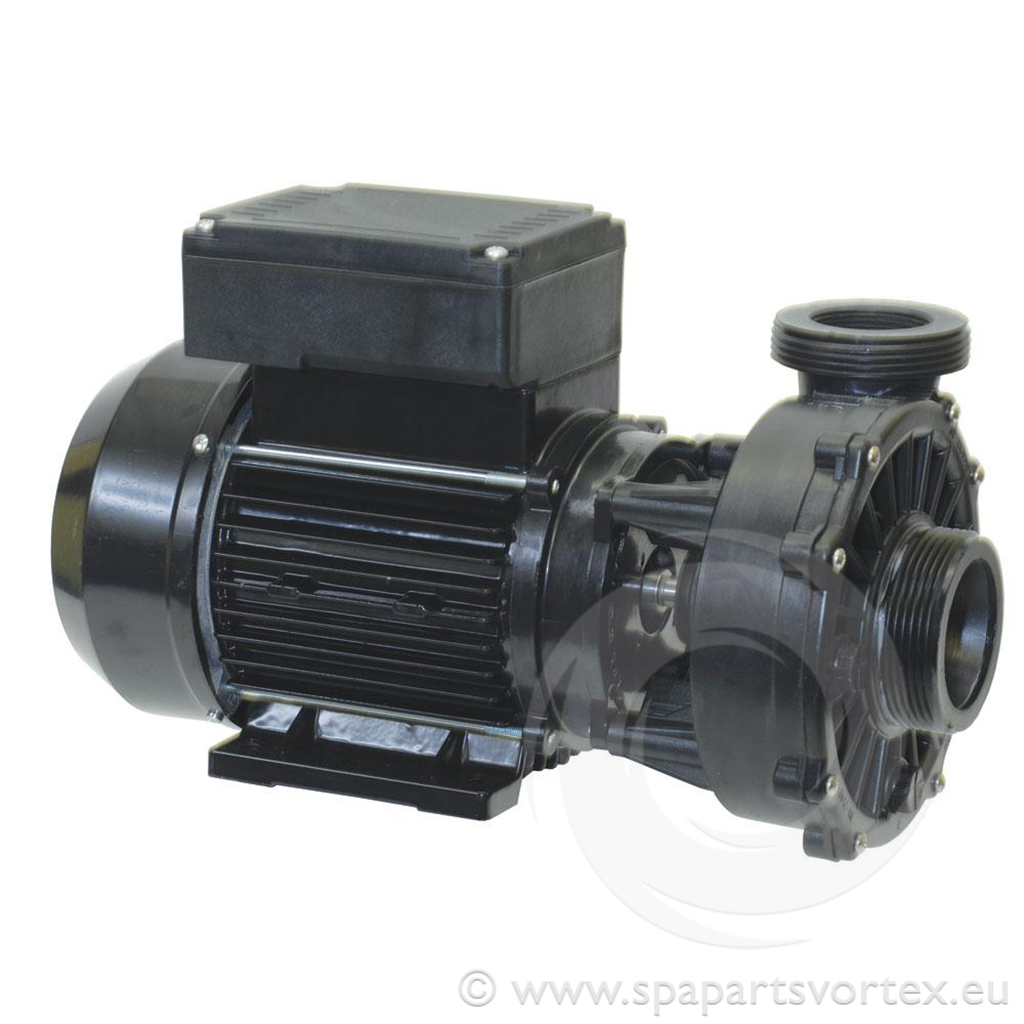

Waterway 48f 2hp 2spd Hi-Flo (2x2) is supplied by Spa Parts Vortex as a trade-ready pumps part within our Electrical range, genuine Waterway stock.
The Waterway 48f 2hp 2-speed Hi-Flo pump operates at 230 V, 50 Hz with 0.63 HP low speed and 2.11 HP high speed. It draws 2.2 A low and 6.8 A high, running at 1440 RPM low and 2850 RPM high.
It features a 4 HP wet end impeller and uses 16 µF and 30 µF capacitors for low and high speeds respectively. Plumbing connections are 2 x 2 inch standard Waterway unions; unions sold separately. Electrical connections require 2 live, 1 neutral, and 1 earth wires; wiring is not included.
Specifications:
-
Power: 2 HP 2-speed
-
Voltage: 230 V
-
Frequency: 50 Hz
-
Motor HP Low / High: 0.63 / 2.11
-
Amps Low / High: 2.2 / 6.8
-
RPM Low / High: 1440 / 2850
-
Wet End Impellor HP: 4
-
Capacitor Low / High: 16 µF / 30 µF
-
Plumbing Connections: 2 x 2 inch Waterway unions
-
Electrical Connections: 2 live, 1 neutral, 1 earth (no wiring included)
Commonly Used With: Replacement for 48 frame models such as Vico, Aqua-Flo, Sta-Rite, GE, A.O Smith, Emerson, Hydroair, and more when there is not enough room to install a 56 frame pump.
Dimensions: 360 mm (L) x 220 mm (H) x 175 mm (D)
Reference 3421621-10CE - please confirm exact fitment against your existing part, model and connector/thread before ordering, as pumps parts commonly have close variants.
Quantity: Sold individually.
See the product compatibility notes and quick specs above for guidance.
Ordered on trade account with same-day UK dispatch on stock lines.
Contact our technical team if you need help confirming compatibility before you buy.
