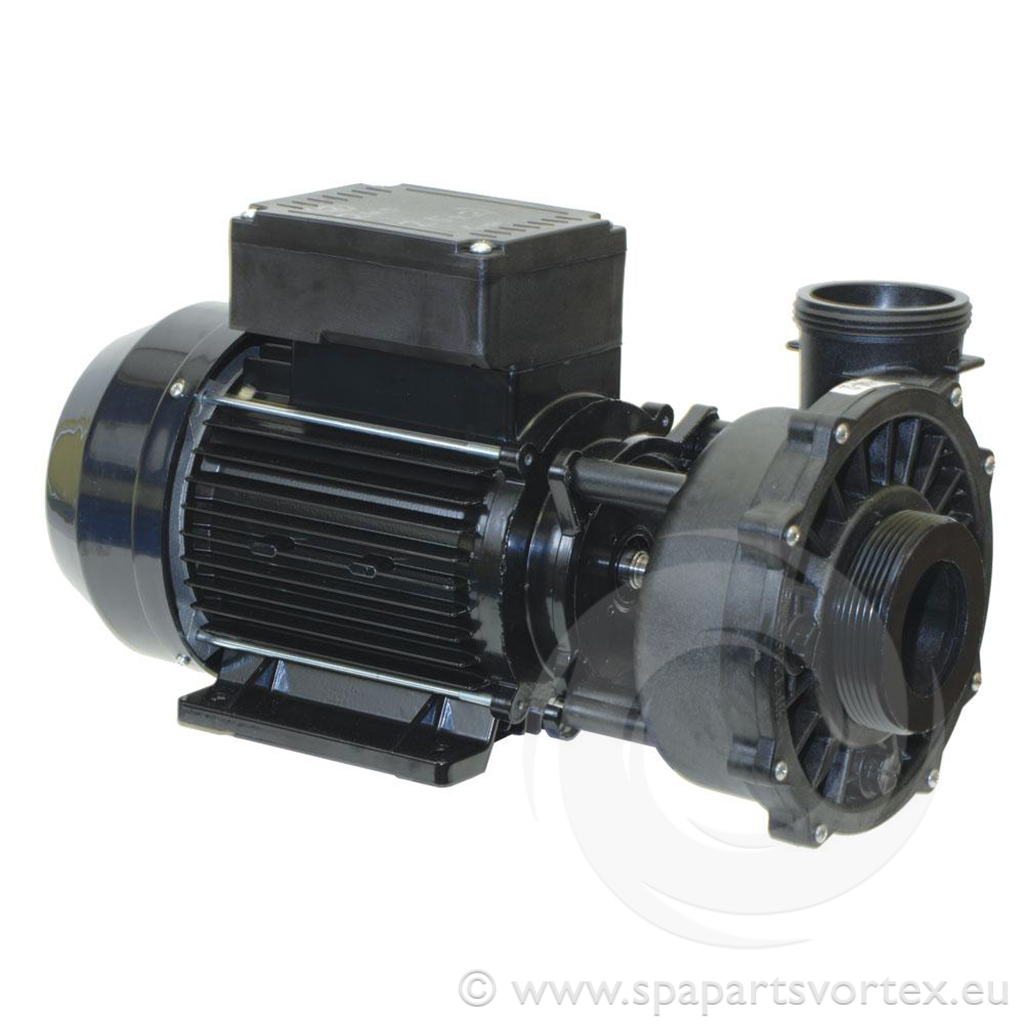

Waterway 2 speed 2.0HP 56 frame (2.5 x 2)

https://spaparts.glodo.cloud/web/image/product.template/1739/image_1920?unique=523972e

Not Available For Sale

  • Brand
  • Product Type
  • Height
  • HP
  • Length
  • Power kW
  • Speeds
  • Width
  • Plumbing Size
  • Amperage

This combination does not exist.

  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description

The Waterway 1-speed 2 HP 56-frame pump operates at 230 V, 50 Hz with a motor output of 0.53 HP low speed and 2.14 HP high speed. It draws 1.8 A at low speed and 9 A at high speed, running at 1450 RPM low and 2850 RPM high. The pump features a 4 HP wet-end impeller and uses 16 µF and 30 µF capacitors. Plumbing connections are 2 x 2.5 inch Waterway unions (unions sold separately). Electrical wiring is not included and must be reused from the existing installation. Commonly used with Hot Tubs Direct, Knightswood Leisure, Touch Spas, Catalina, Hydropool, Hotspring, Hotspot, Southwest Spas, and more. It replaces various Waterway, Vico, Sta-Rite, GE, Emerson, A.O Smith, ITT, or Aqua-Flo pumps and is commonly used for boost jets operation.

Specifications:

  • Motor Power (Low / High): 0.53 HP / 2.14 HP
  • Voltage: 230 V
  • Frequency: 50 Hz
  • Amps (Low / High): 1.8 A / 9 A
  • RPM (Low / High): 1450 / 2850
  • Wet-End Impellor HP: 4
  • Capacitors (Low / High): 16 µF / 30 µF
  • Plumbing Connections: 2 x 2.5 inch Waterway unions
  • Electrical Connections: No wiring included; existing wiring must be used

Dimensions: 430 mm (L) x 220 mm (H) x 200 mm (D)

Quantity: Sold individually.

Product Attributes
Brand : Waterway
Product Type : Massage Pump
Height : 240 mm
HP : 2.0HP
Length : 430mm
Power kW : 1.5 kW
Speeds : 2 speed
Width : 200mm
Plumbing Size : 2" / 2.5"
Amperage : 1.8 / 9 Amps
Product Attributes
Brand : Waterway
Product Type : Massage Pump
Height : 240 mm
HP : 2.0HP
Length : 430mm
Power kW : 1.5 kW
Speeds : 2 speed
Width : 200mm
Plumbing Size : 2" / 2.5"
Amperage : 1.8 / 9 Amps
Product Description

The Waterway 1-speed 2 HP 56-frame pump operates at 230 V, 50 Hz with a motor output of 0.53 HP low speed and 2.14 HP high speed. It draws 1.8 A at low speed and 9 A at high speed, running at 1450 RPM low and 2850 RPM high. The pump features a 4 HP wet-end impeller and uses 16 µF and 30 µF capacitors. Plumbing connections are 2 x 2.5 inch Waterway unions (unions sold separately). Electrical wiring is not included and must be reused from the existing installation. Commonly used with Hot Tubs Direct, Knightswood Leisure, Touch Spas, Catalina, Hydropool, Hotspring, Hotspot, Southwest Spas, and more. It replaces various Waterway, Vico, Sta-Rite, GE, Emerson, A.O Smith, ITT, or Aqua-Flo pumps and is commonly used for boost jets operation.

Specifications:

  • Motor Power (Low / High): 0.53 HP / 2.14 HP
  • Voltage: 230 V
  • Frequency: 50 Hz
  • Amps (Low / High): 1.8 A / 9 A
  • RPM (Low / High): 1450 / 2850
  • Wet-End Impellor HP: 4
  • Capacitors (Low / High): 16 µF / 30 µF
  • Plumbing Connections: 2 x 2.5 inch Waterway unions
  • Electrical Connections: No wiring included; existing wiring must be used

Dimensions: 430 mm (L) x 220 mm (H) x 200 mm (D)

Quantity: Sold individually.
