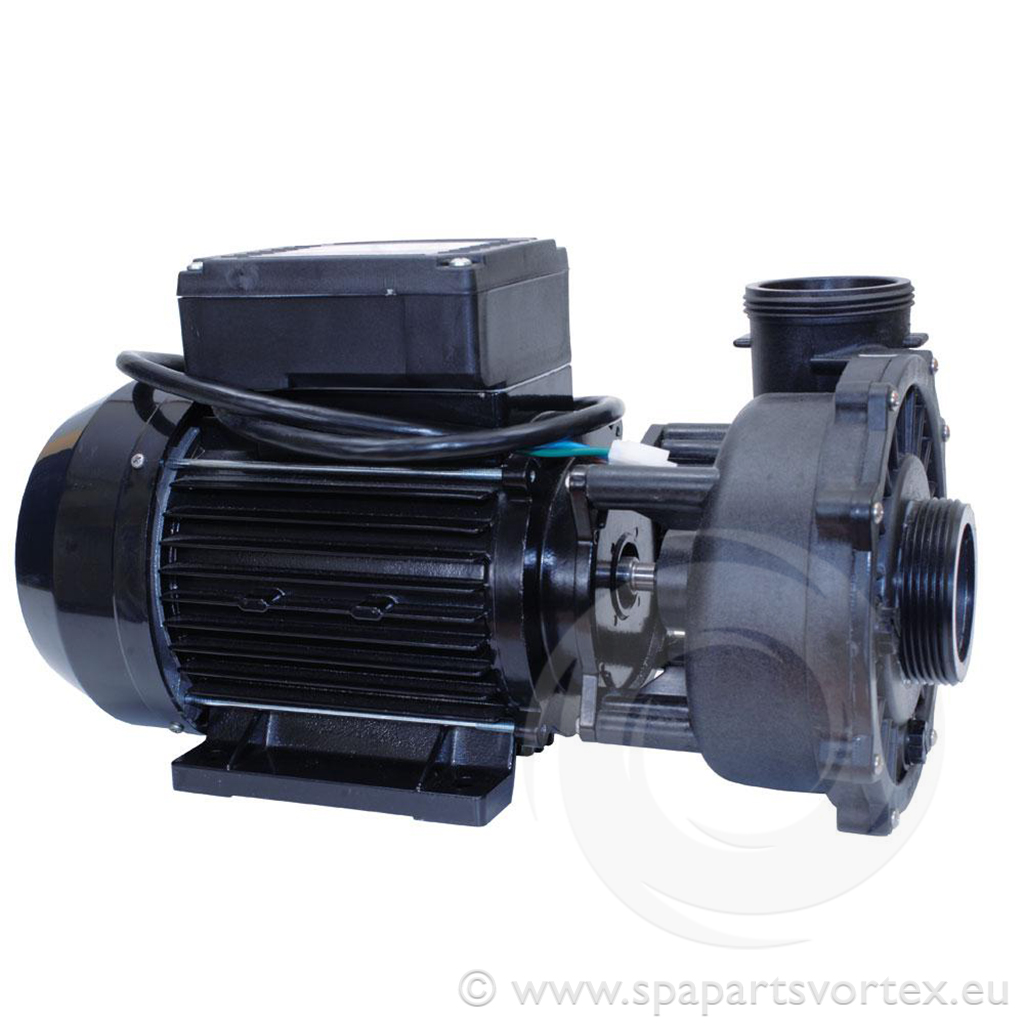

Waterway 2 speed 2.5HP 56 frame (2 x 2)
Product Description
The Waterway 1-speed 2 HP 56-frame pump operates at 230 V, 50 Hz with a motor output ranging from 0.74 HP (low speed) to 3.54 HP (high speed). It draws 3–3.2 A at low speed and 10.9–11.4 A at high speed, running at 1440 RPM low and 2830 RPM high. The pump features a 5 HP wet-end impeller and uses 16 µF and 40 µF capacitors. Plumbing connections are 2 x 2 inch Waterway unions (unions sold separately). Electrical wiring is not included and must be reused from the existing installation. Commonly used with Coleman, Santa Barbara, Sundance, Hot Spring Envoy, and other spas.
Specifications:
- Motor Power (Low / High): 0.74 HP / 3.54 HP
- Voltage: 230 V
- Frequency: 50 Hz
- Amps (Low / High): 3–3.2 A / 10.9–11.4 A
- RPM (Low / High): 1440 / 2830
- Wet-End Impellor HP: 5
- Capacitors (Low / High): 16 µF / 40 µF
- Plumbing Connections: 2 x 2 inch Waterway unions
- Electrical Connections: No wiring included; existing wiring must be used
Dimensions: 430 mm (L) x 240 mm (H) x 200 mm (D)
Quantity: Sold individually.
Product Attributes
| Brand : Waterway |
| Product Type : Massage Pump |
| Height : 240 mm |
| HP : 2.5HP |
| Length : 430mm |
| Power kW : 2.4 |
| Speeds : 2 speed |
| Width : 200mm |
| Plumbing Size : 2" |
| Amperage : 3.2 / 10 Amps |
Product Attributes
| Brand : Waterway |
| Product Type : Massage Pump |
| Height : 240 mm |
| HP : 2.5HP |
| Length : 430mm |
| Power kW : 2.4 |
| Speeds : 2 speed |
| Width : 200mm |
| Plumbing Size : 2" |
| Amperage : 3.2 / 10 Amps |
Product Description
The Waterway 1-speed 2 HP 56-frame pump operates at 230 V, 50 Hz with a motor output ranging from 0.74 HP (low speed) to 3.54 HP (high speed). It draws 3–3.2 A at low speed and 10.9–11.4 A at high speed, running at 1440 RPM low and 2830 RPM high. The pump features a 5 HP wet-end impeller and uses 16 µF and 40 µF capacitors. Plumbing connections are 2 x 2 inch Waterway unions (unions sold separately). Electrical wiring is not included and must be reused from the existing installation. Commonly used with Coleman, Santa Barbara, Sundance, Hot Spring Envoy, and other spas.
Specifications:
- Motor Power (Low / High): 0.74 HP / 3.54 HP
- Voltage: 230 V
- Frequency: 50 Hz
- Amps (Low / High): 3–3.2 A / 10.9–11.4 A
- RPM (Low / High): 1440 / 2830
- Wet-End Impellor HP: 5
- Capacitors (Low / High): 16 µF / 40 µF
- Plumbing Connections: 2 x 2 inch Waterway unions
- Electrical Connections: No wiring included; existing wiring must be used
Dimensions: 430 mm (L) x 240 mm (H) x 200 mm (D)
Quantity: Sold individually.
