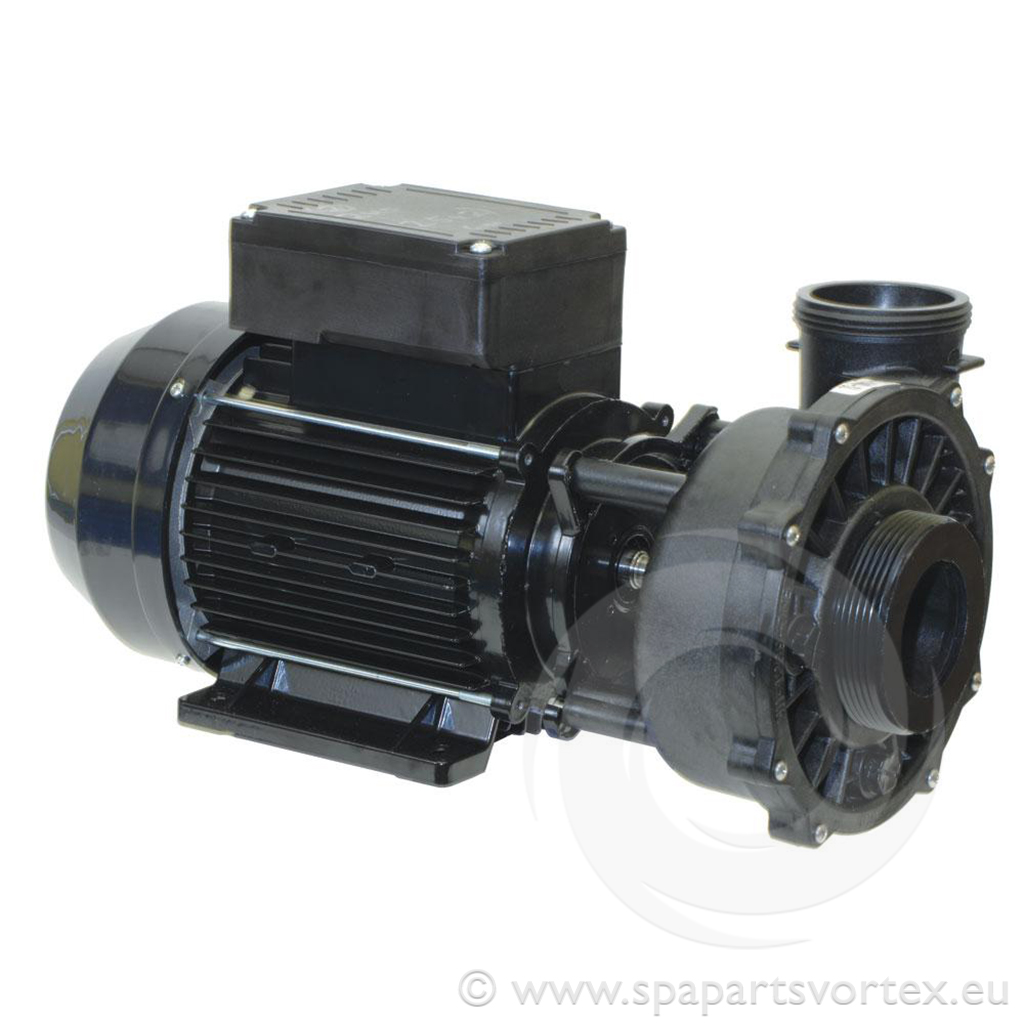

Waterway 2 speed 2.5HP 56 frame (2.5 x 2)

https://spaparts.glodo.cloud/web/image/product.template/1741/image_1920?unique=daebe9e

Not Available For Sale

  • Brand
  • Product Type
  • Height
  • HP
  • Length
  • Power kW
  • Speeds
  • Width
  • Plumbing Size
  • Amperage

This combination does not exist.

  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description

The Waterway 1-speed 2.5 HP 56-frame pump operates at 230 V, 50 Hz with a motor output ranging from 0.74 HP (low speed) to 3.54 HP (high speed). It draws 3–3.2 A at low speed and 10.9–11.4 A at high speed, running at 1440 RPM low and 2830 RPM high. The pump features a 5 HP wet-end impeller and uses 16 µF and 40 µF capacitors. Plumbing connections are 2 x 2.5 inch Waterway unions (unions sold separately). Electrical wiring is not included and must be reused from the existing installation. Commonly used with Canadian Spa and other brands.

Specifications:

  • Motor Power (Low / High): 0.74 HP / 3.54 HP
  • Voltage: 230 V
  • Frequency: 50 Hz
  • Amps (Low / High): 3–3.2 A / 10.9–11.4 A
  • RPM (Low / High): 1440 / 2830
  • Wet-End Impellor HP: 5
  • Capacitors (Low / High): 16 µF / 40 µF
  • Plumbing Connections: 2 x 2.5 inch Waterway unions
  • Electrical Connections: No wiring included; existing wiring must be used

Dimensions: 430 mm (L) x 240 mm (H) x 200 mm (D)

Quantity: Sold individually.

Product Attributes
Brand : Waterway
Product Type : Massage Pump
Height : 240 mm
HP : 2.5HP
Length : 430mm
Power kW : 1.9 kW
Speeds : 2 speed
Width : 200mm
Plumbing Size : 2" / 2.5"
Amperage : 3.2 / 10 Amps
