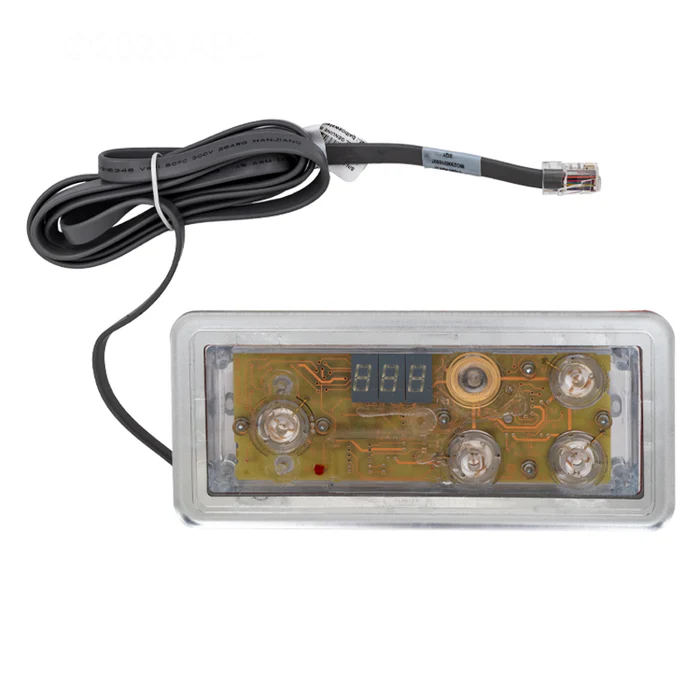

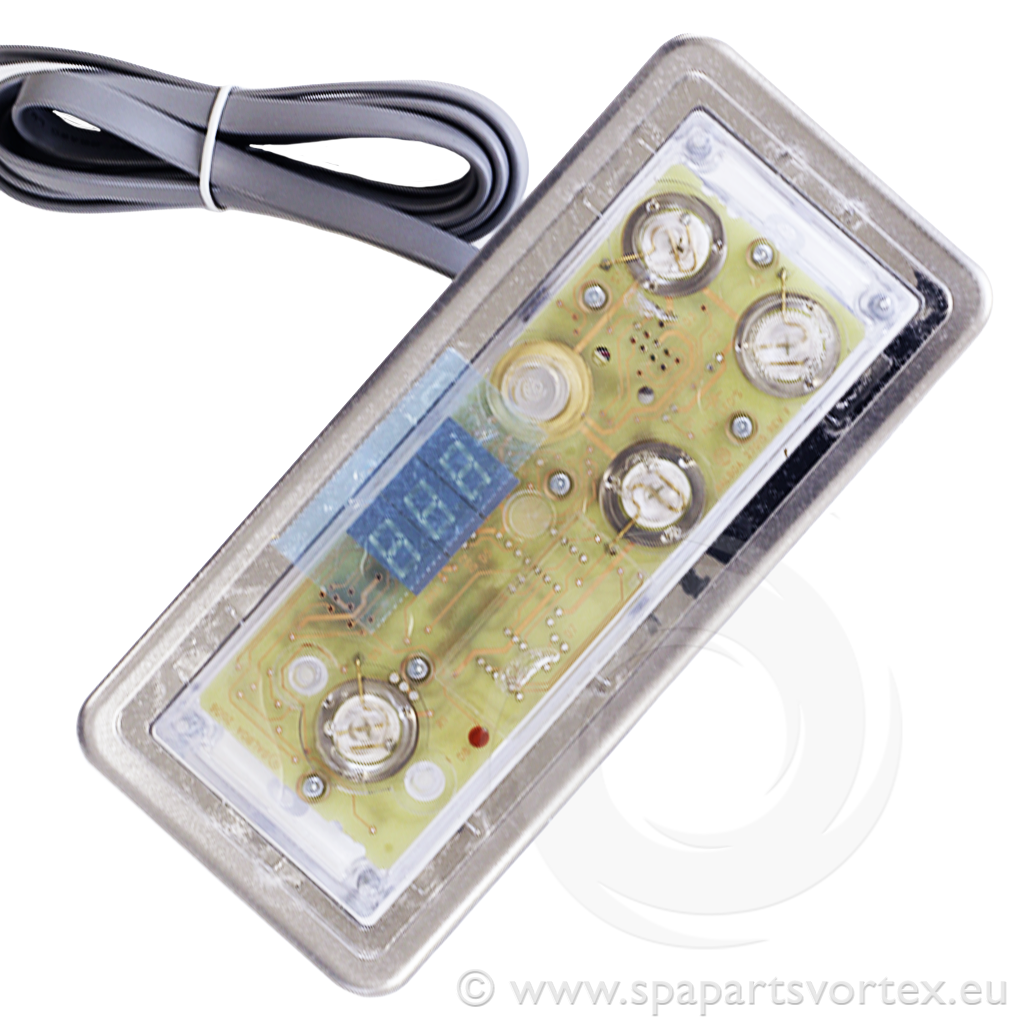

Balboa VL404 Topside Panel (without overlay)
Replacement VL404 Panels
Product Description
Overlay: Not included
The Balboa VL404 is a replacement topside panel with overlay, operating at 12 V. It operates at 12 V and features 4 buttons with a basic 3-digit LED display . Compatible with Balboa GS500, GS500Z, GS501, GS501Z, Duplex control systems.
The reference used now by Balboa is G8244 and replaces previous VL404 topsides (51223, 54145).
Specifications:
- Dimensions: 187 mm (L) x 83 mm (H)
- Power: 12 V
- Buttons: 4
- Connections: Telephone cord style (RJ45)
- Display: LED, basic 3 digit style
- Compatible With: GS500, GS500Z, GS501, GS501Z, Duplex control systems
- Overlay: Not included
Quantity: Sold individually
Product Attributes
| Brand : Balboa |
| Blower / Aux : 1 |
| Max Pumps : 1 |
| Max Width : 83mm |
| Max Length : 187 mm |
| Product Type : Topside Panel |
| Total Buttons : 4 |
| Model / Series : VL |
Product Attributes
| Brand : Balboa |
| Blower / Aux : 1 |
| Max Pumps : 1 |
| Max Width : 83mm |
| Max Length : 187 mm |
| Product Type : Topside Panel |
| Total Buttons : 4 |
| Model / Series : VL |
Product Description
Overlay: Not included
The Balboa VL404 is a replacement topside panel with overlay, operating at 12 V. It operates at 12 V and features 4 buttons with a basic 3-digit LED display . Compatible with Balboa GS500, GS500Z, GS501, GS501Z, Duplex control systems.
The reference used now by Balboa is G8244 and replaces previous VL404 topsides (51223, 54145).
Specifications:
- Dimensions: 187 mm (L) x 83 mm (H)
- Power: 12 V
- Buttons: 4
- Connections: Telephone cord style (RJ45)
- Display: LED, basic 3 digit style
- Compatible With: GS500, GS500Z, GS501, GS501Z, Duplex control systems
- Overlay: Not included
Quantity: Sold individually
