Boitier de contrôle AeWare IN.XE
Description du produit

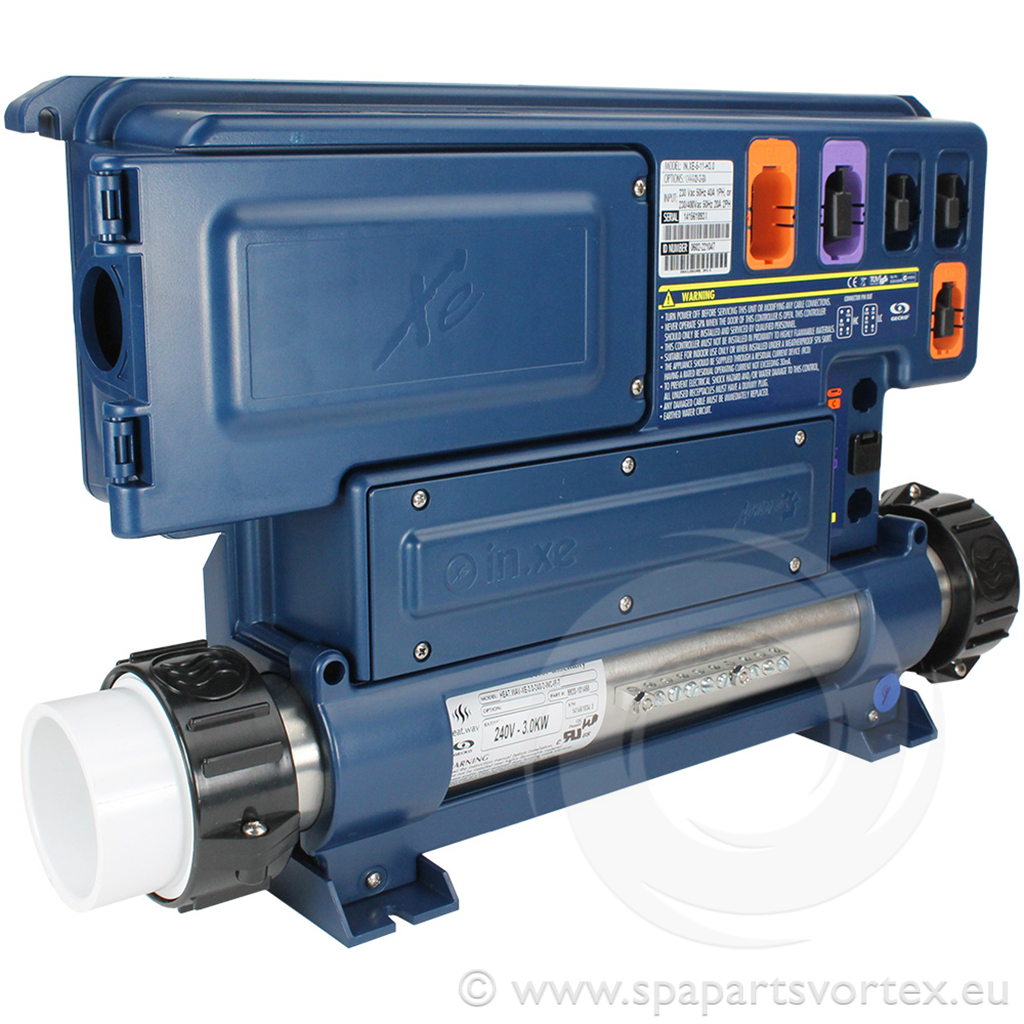

The Gecko IN.XE Control Box (3kW) is a reliable solution for entry-level and mid-range spas, featuring an IPX5-rated waterproof design for durability in spa environments. Designed for like-for-like replacements, this control box supports essential components such as pumps, an air blower, ozone, and lighting. It is compatible with Gecko topside controls (IN.K600 Static, IN.K200, K19.IN, K35.IN, and IN.K450) and connects using industry-standard 2-inch unions. Installation must be carried out by a competent individual or tradesperson to maintain warranty validity.
Specifications:
- Voltage: 230VAC
- Frequency: 50Hz
- Pump Support:
- Pump 1: Single or dual-speed, with an optional circulation pump
- Pump 2: Single-speed
- Additional Outputs:
- Air Blower: 1 unit (optional)
- Heater: 3kW
- Ozone: 1 connection
- Light: 1 unit
Connections:
- Industry-standard 2-inch female unions suitable for gluing
Dimensions:
- Length: 442 mm (17.40 inches)
- Width: 136 mm (5.35 inches)
- Height: 299 mm (11.77 inches)
Box Quantity: Sold in multiples of 5 units.
Attributs du produit
| Marque : Gecko |
| Souffleur : Oui |
| Circ Pump : Oui |
| Profondeur Max : 100mm |
| Hauteur Max : 270mm |
| Pompes Max : 2 |
| Longueur Max : 480mm |
| Puissance kW : 3.0kW |
| Type de produit : Boîtier de commande |
| Relais informatiques totaux : 4 |
| Référence de taille : 2 pouces |
Attributs du produit
| Marque : Gecko |
| Souffleur : Oui |
| Circ Pump : Oui |
| Profondeur Max : 100mm |
| Hauteur Max : 270mm |
| Pompes Max : 2 |
| Longueur Max : 480mm |
| Puissance kW : 3.0kW |
| Type de produit : Boîtier de commande |
| Relais informatiques totaux : 4 |
| Référence de taille : 2 pouces |
