(Boitier 4.2) Boitier de contrôle Balboa GS510DZ
2 Pumps + Blower + Circ + Ozone
Description du produit

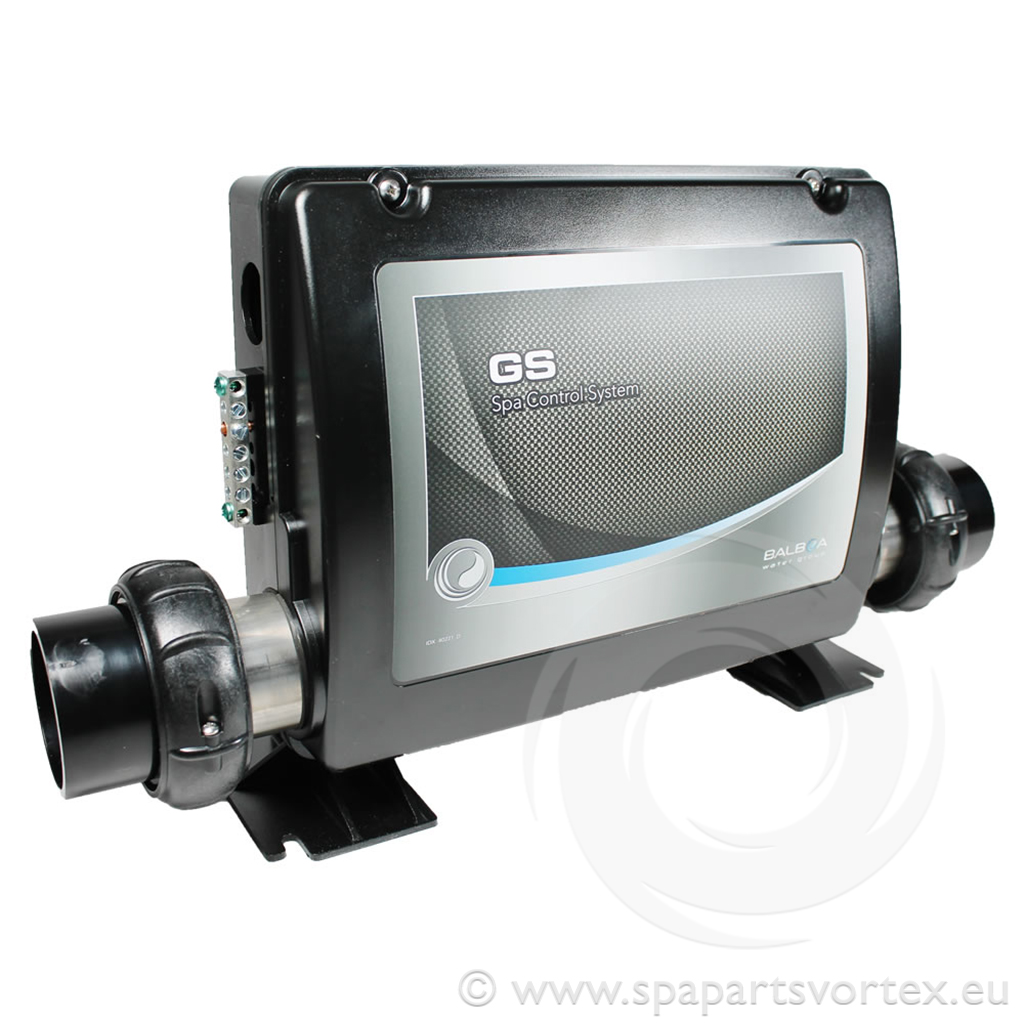

The Balboa GS510DZ control box is equipped with a 3.0 kW M7 heater and supports two pumps (Pump 1 as dual-speed or single-speed with circulation pump, Pump 2 as single-speed), an optional blower, ozone generator, and 12 V lighting. It is compatible with Balboa’s Deluxe VL series topside panels, such as the VL801D. The unit supports 230 V single-phase or 400 V three-phase power supply and is suitable for system upgrades.
Specifications:
- Pump 1: Dual-speed or single-speed (with circulation pump)
- Pump 2: Single-speed
- Blower: Optional
- Circulation Pump: Supported
- Ozone: Supported
- Lighting Output: 12 V
- Heater: 3.0 kW M7
- Topside Compatibility: Balboa Deluxe VL series (e.g., VL801D)
- Power Supply: 230 V single-phase or 400 V three-phase
- Dimensions: 500 mm (L) x 270 mm (H) x 120 mm (W)
Quantity: Sold individually.
Attributs du produit
| Marque : Balboa |
| Puissance kW : 3.0kW |
| Type de produit : Boîtier de commande |
| Référence de taille : 2 pouces |
| Modèle / Séries : GS |
Attributs du produit
| Marque : Balboa |
| Puissance kW : 3.0kW |
| Type de produit : Boîtier de commande |
| Référence de taille : 2 pouces |
| Modèle / Séries : GS |
Description du produit
The Balboa GS510DZ control box is equipped with a 3.0 kW M7 heater and supports two pumps (Pump 1 as dual-speed or single-speed with circulation pump, Pump 2 as single-speed), an optional blower, ozone generator, and 12 V lighting. It is compatible with Balboa’s Deluxe VL series topside panels, such as the VL801D. The unit supports 230 V single-phase or 400 V three-phase power supply and is suitable for system upgrades.
Specifications:
- Pump 1: Dual-speed or single-speed (with circulation pump)
- Pump 2: Single-speed
- Blower: Optional
- Circulation Pump: Supported
- Ozone: Supported
- Lighting Output: 12 V
- Heater: 3.0 kW M7
- Topside Compatibility: Balboa Deluxe VL series (e.g., VL801D)
- Power Supply: 230 V single-phase or 400 V three-phase
- Dimensions: 500 mm (L) x 270 mm (H) x 120 mm (W)
Quantity: Sold individually.
