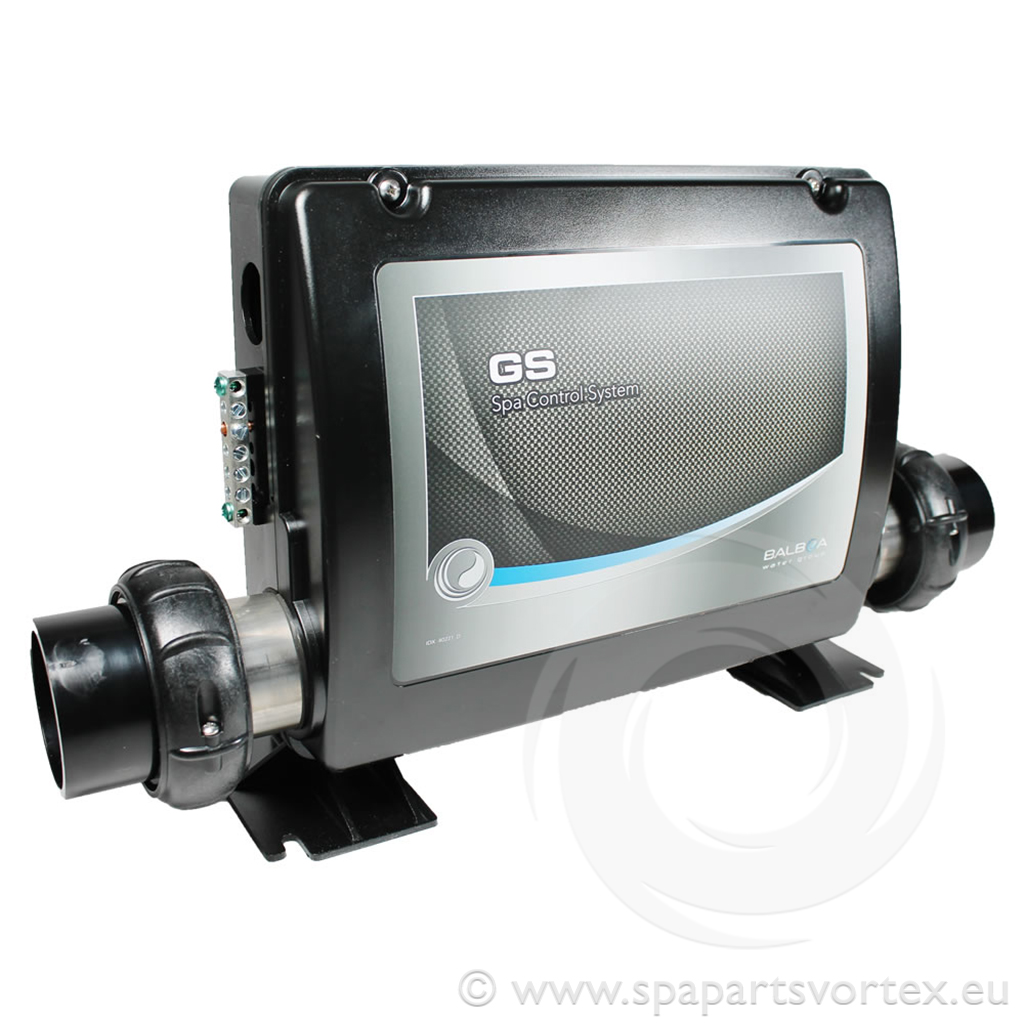

(Boitier 4.4) Boitier de contrôle Balboa GS520DZ
2 Pumps + Blower + Circ + Ozone
Description du produit
The Balboa GS520DZ control box is a 230 V spa system featuring a 3.0 kW M7 heater. It supports two pumps (each configurable as single- or dual-speed), an optional blower or third single-speed pump, a circulation pump, ozone generator, and 12 V lighting. The unit is compatible with Balboa Deluxe VL series topside panels, such as the VL801D. It includes a dedicated port (J17) for either a blower or a third pump, protected by a 10 A quick-blow fuse. The system operates on a 230 V, 50 Hz power supply and is suitable for retrofit or replacement installations.
Specifications:
- Pump 1: Single or dual-speed pump, with an optional circulation pump
- Pump 2: Single or dual-speed
- Pump 3 or Blower: Single-speed (only one can be connected at a time)
- Circulation Pump: Supported
- Ozone: Supported
- Lighting Output: 12 V
- Heater: 3.0 kW M7
- Topside Compatibility: Balboa Deluxe VL series (e.g., VL801D)
- Power Supply: 230 V, 50 Hz
- Dimensions (with heater): 500 mm (L) x 270 mm (H) x 120 mm (W)
- Dimensions (box only): 320 mm (L) x 270 mm (H) x 120 mm (W)
Quantity: Sold individually.
Attributs du produit
| Marque : Balboa |
| Puissance kW : 3.0kW |
| Type de produit : Boîtier de commande |
| Référence de taille : 2 pouces |
| Modèle / Séries : GS |
Attributs du produit
| Marque : Balboa |
| Puissance kW : 3.0kW |
| Type de produit : Boîtier de commande |
| Référence de taille : 2 pouces |
| Modèle / Séries : GS |
