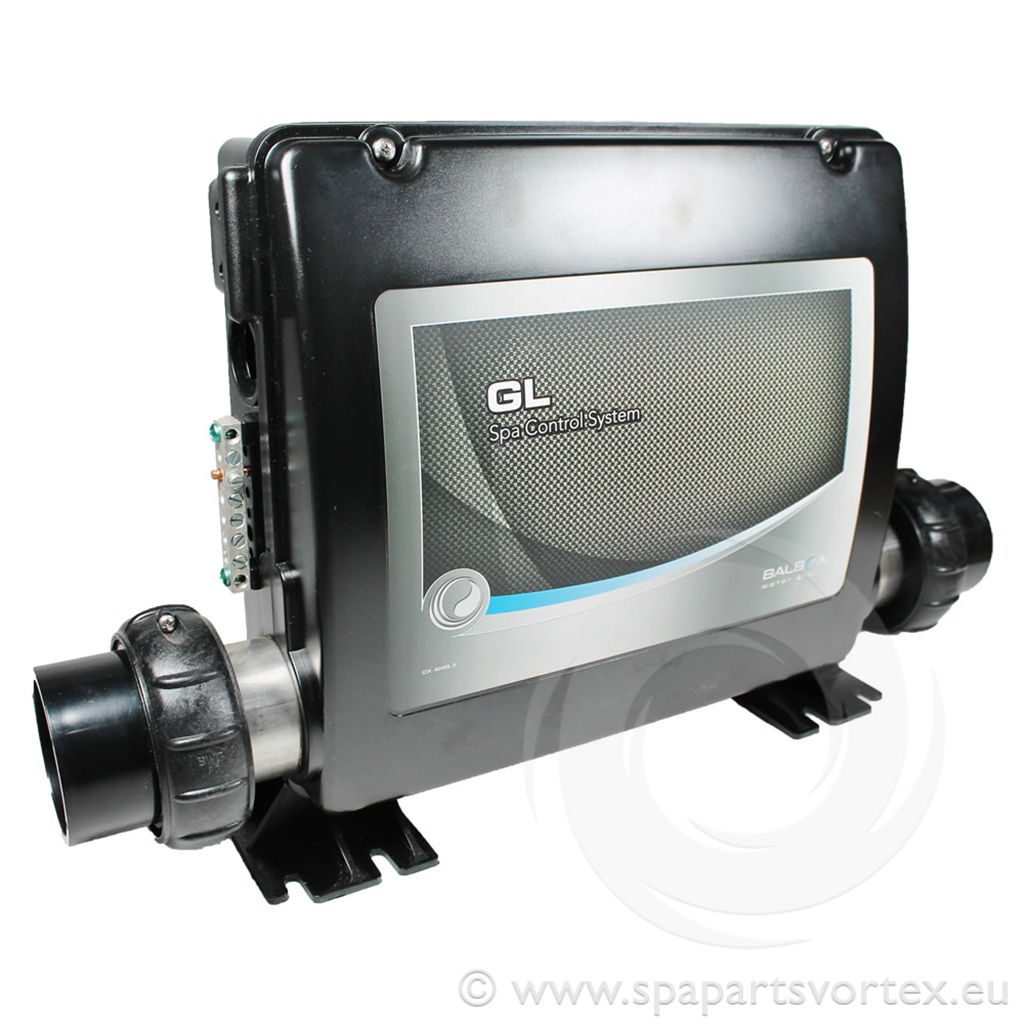

(Boitier 6) Boitier de contrôle Balboa GL2000 mach 3
3 Pumps + Blower + Circ + Ozone
Description du produit
The Balboa GL2000 Mach 3 control box is a 230 V spa system equipped with a 3.0 kW M7 heater. It supports three pumps (Pump 1 as dual-speed or single-speed with circulation pump, Pump 2 as single- or dual-speed if no blower is used, and Pump 3 or blower as single-speed), an optional blower, ozone generator, and lighting. The unit is compatible with Balboa ML series topside panels, such as the ML700 and ML900. It includes AV connections for radio, TV, or auxiliary systems and supports both 12 V and 230 V lighting. The system operates on a 230 V, 50 Hz power supply and is suitable for retrofit or replacement installations.
Specifications:
- Pump 1: Dual-speed or single-speed (with circulation pump)
- Pump 2: Single or dual-speed (if no blower is used)
- Pump 3 or Blower: Single-speed (only one can be connected at a time)
- Circulation Pump: Supported
- Ozone: Supported
- Lighting Output: 12 V or 230 V
- Heater: 3.0 kW M7
- Topside Compatibility: Balboa ML series (e.g., ML700, ML900)
- Power Supply: 230 V, 50 Hz
- Dimensions (with heater): 500 mm (L) x 300 mm (H) x 120 mm (W)
- Dimensions (box only): 330 mm (L) x 300 mm (H) x 120 mm (W)
Quantity: Sold individually.
