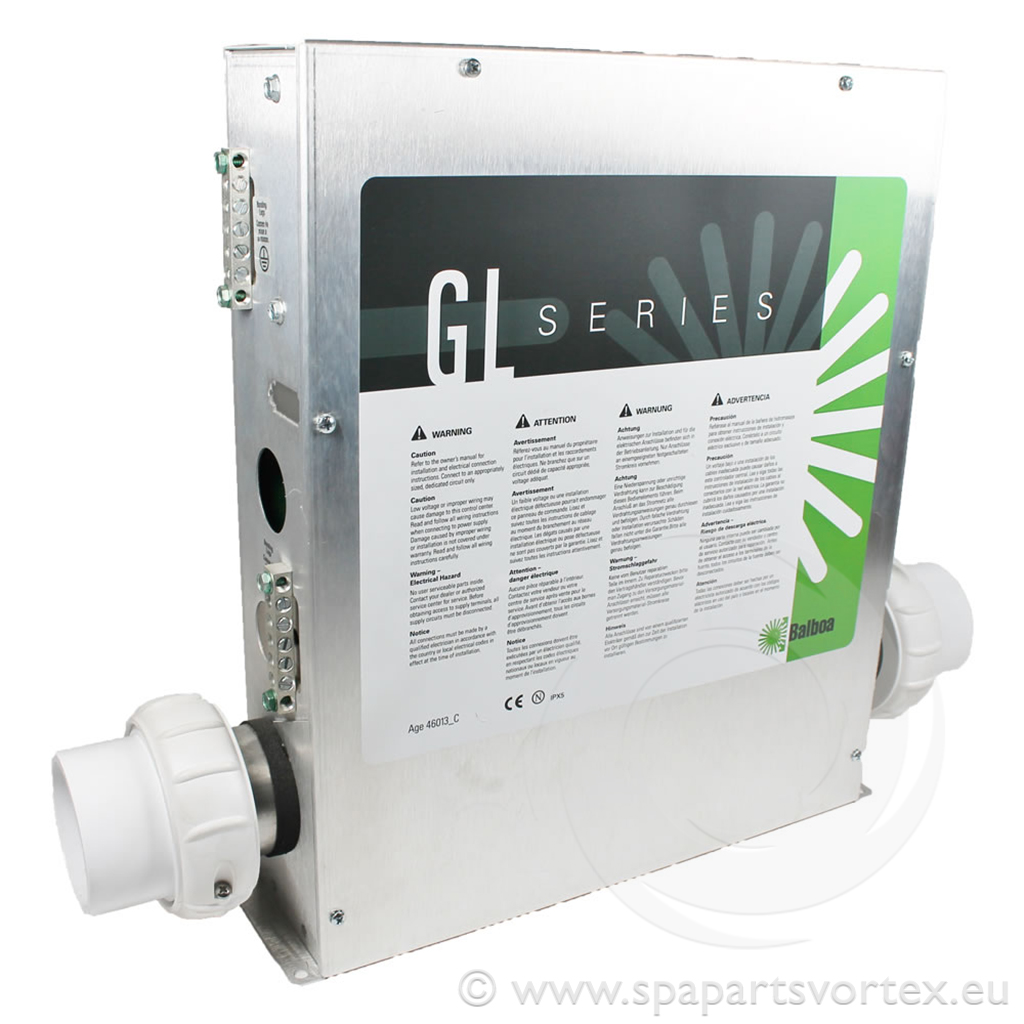

(Boitier 8) Boitier de contrôle Balboa GL8000 mach 3
3 Pumps + Circ + Blower + Ozone + Light
Description du produit
The Balboa GL8000 Mach 3 control box is a 230 V spa system with a 3.0 kW integrated heater. It supports three pumps (Pump 1 as dual- or single-speed with circulation pump, Pump 2 as single- or dual-speed if no blower is used, and Pump 3 or blower as single-speed), a circulation pump, ozone, and lighting with 12 V or 230 V output. It is compatible with Balboa ML series topside panels including ML700 and ML900. The unit includes AV connections for radio, TV, or auxiliary systems and operates on a 230 V, 50 Hz supply suitable for retrofit or replacement installations.
Specifications:
- Pump 1: Dual- or single-speed (with circulation pump)
- Pump 2: Single- or dual-speed (if no blower is used)
- Pump 3 or Blower: Single-speed (only one connected at a time)
- Circulation Pump: Optional
- Ozone: Supported
- Lighting Output: 12 V or 230 V
- Heater: 3.0 kW integrated
- Topside Compatibility: Balboa ML series (e.g. ML700, ML900)
- Power Supply: 230 V, 50 Hz
- Dimensions (with heater): 490 mm (L) x 386 mm (H) x 110 mm (W)
Quantity: Sold individually.
