DISCONTINUED ! LAST STOCK AVAILABLE ! This product is no longer manufactured by Balboa. You can either replace the PCB by a GS501Z PCB or upgrade to a new pack (control box + topside).

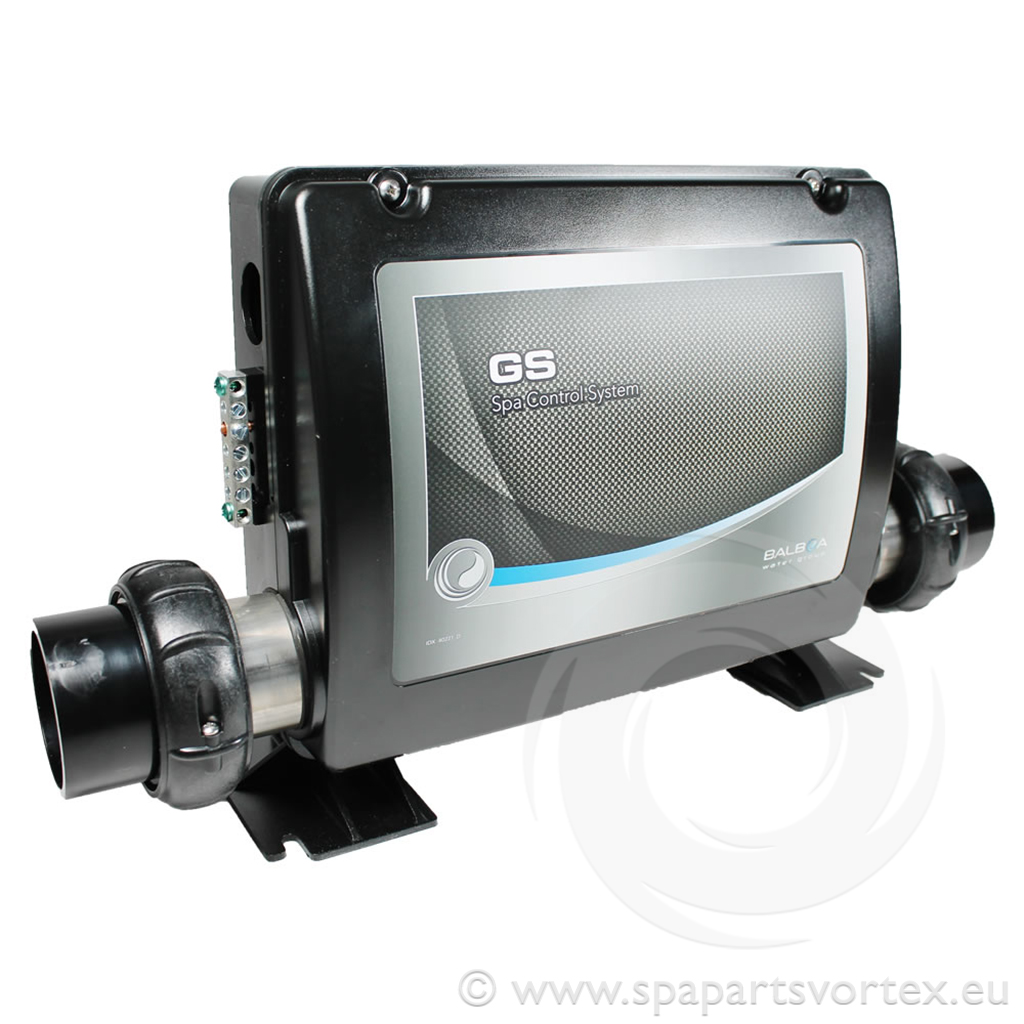

The Balboa GS501Z control box is a 230 V spa system with a 3.0 kW integrated M7 heater. It supports one single- or dual-speed pump with optional circulation pump, an air blower, ozone generator, and 12 V lighting. The unit is compatible with Balboa VL series topside panels. It operates on a 230 V, 50 Hz supply and is suitable for retrofit or replacement installations.
Specifications:
-
Pump 1: Single or dual-speed pump, with an optional circulation pump
-
Circulation Pump: Optional
-
Blower: Single-speed
-
Ozone: Supported
-
Lighting Output: 12 V
-
Heater: 3.0 kW integrated M7
-
Topside Compatibility: Balboa VL series (e.g., VL200, VL240, VL260, VL400, VL401, VL402, VL403, VL404, VL406T/U)
-
Power Supply: 230 V, 50 Hz
-
Dimensions: 268 mm (H) x 311 mm (W) x 112 mm (D)
-
Plumbing Size: 2" unions
-
Relay Count: 3 total
Quantity: Sold individually.
