Description du produit

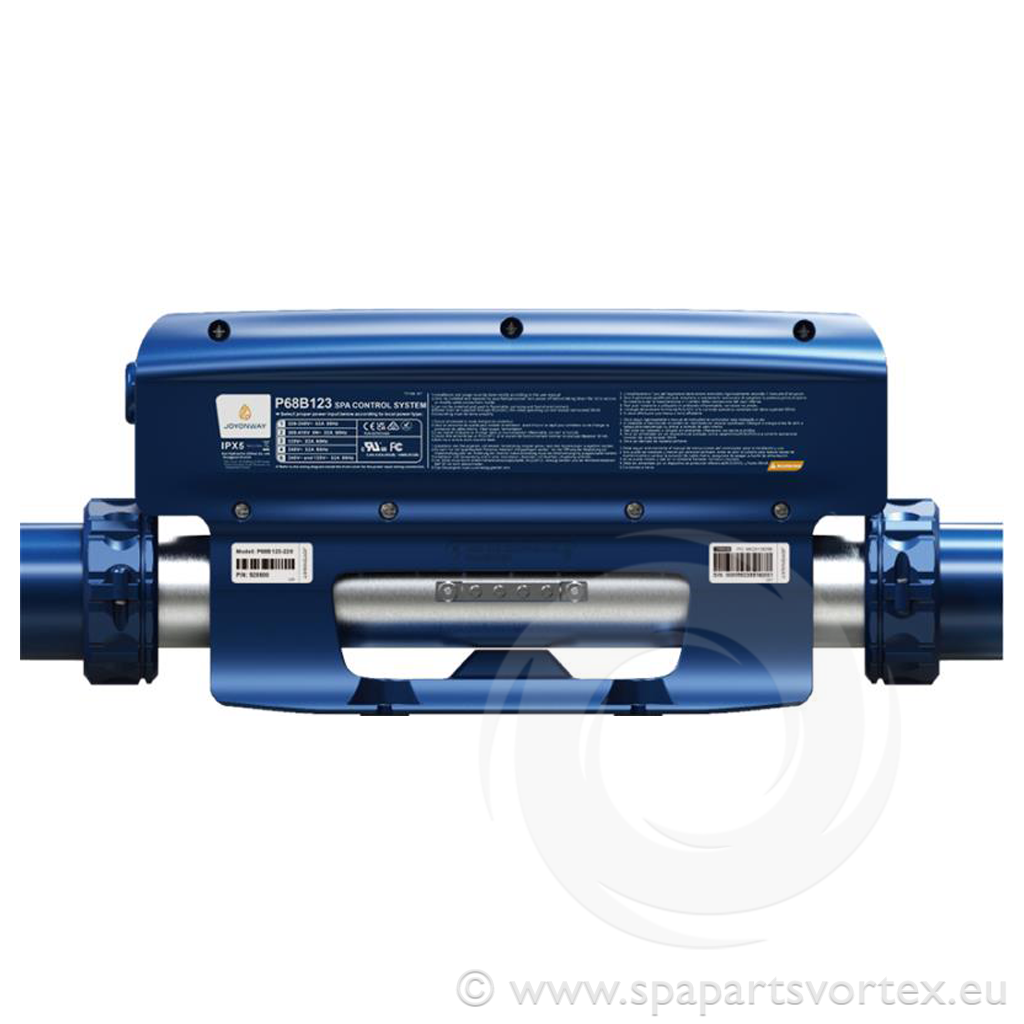

This Joyonway control box can control up to 4 single speed pumps and a blower.
Dimensions:
Length: 434mm (inc heater) / 380mm (box only)
Width: 100mm
Height: 240mm
Volts: 230vac; Hz: 50; 48A (Single Phase) or 28A (3 Phases)
Pump 1: Dual speed pump or Single speed if circulation pump used.
Pump 2 or blower: Single speed
Heater: x 1 (3kW)
Ozone: x 1
Light: x1
Compatible With: Joyonway Topsides PB562, PB562+, PB563, PB563+, PB565, PB565+.
Connections: 2-inch socket heater union sleeves.
Notes:
It is recommended to use 3 * 10mm² cable when the total load current is 48A (Single Phase). This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
Box Quantity: 5.
Attributs du produit
| Marque : Joyonway |
| Pompes Max : 2 |
| Puissance kW : 3.0kW |
| Circ Pump : Oui |
| Souffleur : Oui |
| Référence de taille : 2 pouces |
Attributs du produit
| Marque : Joyonway |
| Pompes Max : 2 |
| Puissance kW : 3.0kW |
| Circ Pump : Oui |
| Souffleur : Oui |
| Référence de taille : 2 pouces |
Description du produit
This Joyonway control box can control up to 4 single speed pumps and a blower.
Dimensions:
Length: 434mm (inc heater) / 380mm (box only)
Width: 100mm
Height: 240mm
Volts: 230vac; Hz: 50; 48A (Single Phase) or 28A (3 Phases)
Pump 1: Dual speed pump or Single speed if circulation pump used.
Pump 2 or blower: Single speed
Heater: x 1 (3kW)
Ozone: x 1
Light: x1
Compatible With: Joyonway Topsides PB562, PB562+, PB563, PB563+, PB565, PB565+.
Connections: 2-inch socket heater union sleeves.
Notes:
It is recommended to use 3 * 10mm² cable when the total load current is 48A (Single Phase). This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
Box Quantity: 5.
