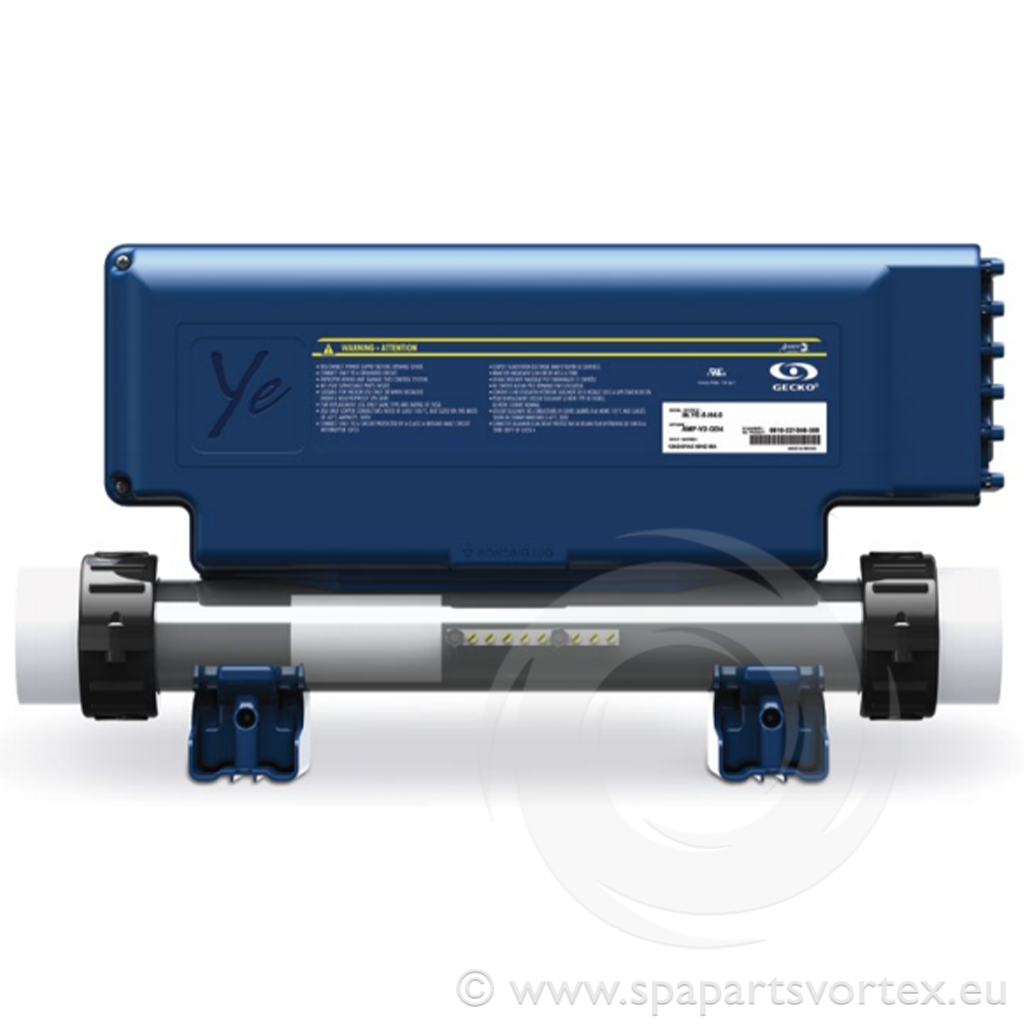

Gecko IN.YE5-V3 Control Box 3KW
Control Box with Heater Tube
Documents
Description du produit
The Gecko IN.YE5-V3 Control Box with 3.0 kW heater is a versatile spa system designed for retrofits and upgrades. It supports up to four pumps, including dual-speed pumps using two outputs, an air blower, ozone, and 12 V lighting. Compatible with a range of topside panels and supports in.Touch 2 and 3 for remote operation.
To enable the compatibility with the in.temp heat pump, please ensure the inclusion of the Gecko RS485 Communication Extension Board (CB-GRS48).
Specifications:
- Pump Support: Up to 4 pumps (dual-speed pumps use 2 outputs)
- Air Blower: Supported
- Heater: 3.0 kW
- Ozone: Supported (shared with circulation pump via splitter)
- Light: 12 V DC (up to 1.3A) and integration of the in.mix 300 color system on the main board.
- Circulation Pump: Supported
- Connectivity: Compatible with in.Touch 2 and 3
- Plumbing Size: 2"
- Electrical Supply: 230 V, 50 Hz (single-phase or dual-phase)
- Control Box Dimensions: 497 mm (L) x 126 mm (W) x 273 mm (H)
Items Included:
- Gecko IN.YE5-V3 control box with 3.0 kW heater
Quantity: Sold individually.
