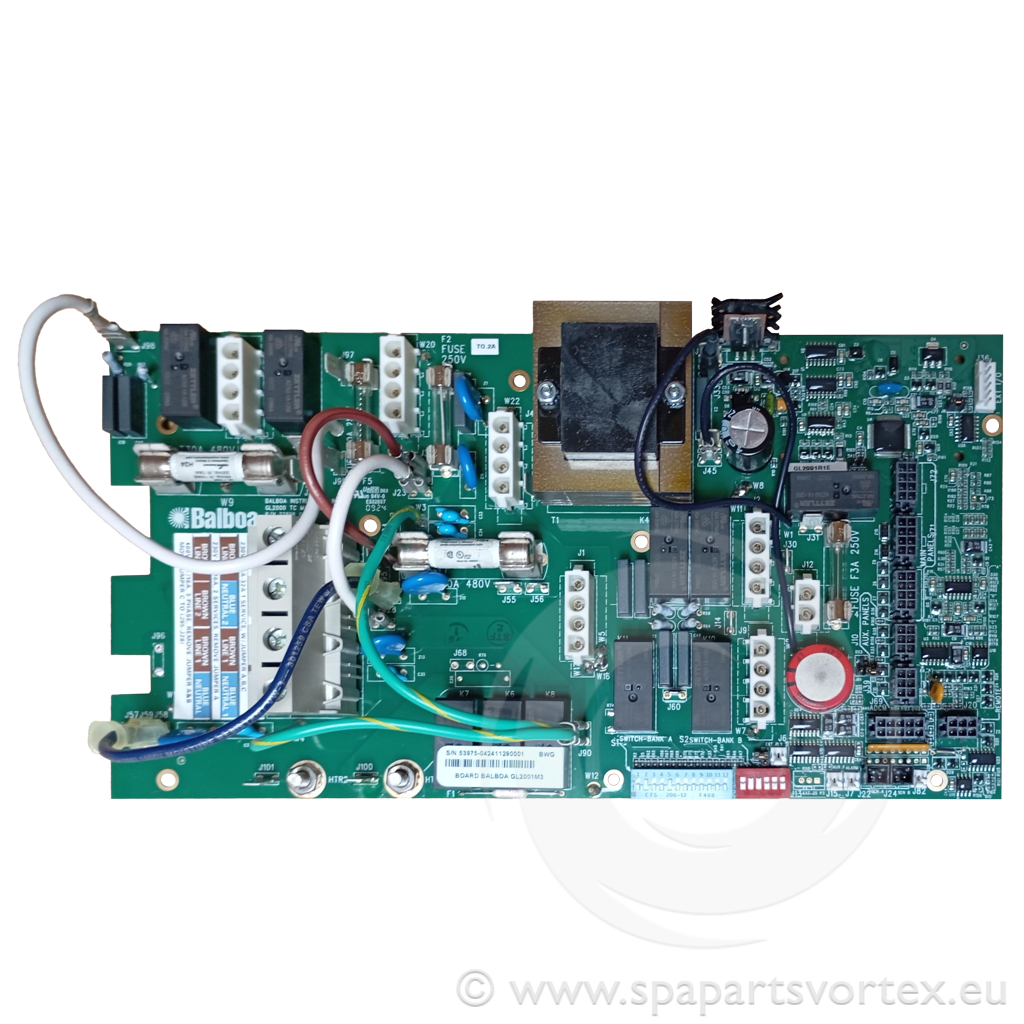

Balboa GL2001 mach3 PCB (copy)
PLASTIC BOX ONLY
Description du produit
The Balboa GL2000 Mach3 PCB is a replacement circuit board for the GL2000 Mach3 control box, designed for precise management of spa systems. It supports various pump configurations, a heater, ozone, and light, and is compatible with ML range topside controls such as the ML400, ML700, and ML900. This PCB must only be used with a GL2000 Mach3 plastic control box and should be installed by a competent individual or tradesman to avoid damage and warranty invalidation.
Specifications:
- Power: 230V, 50Hz
- Pump Support:
- Pump 1: Single or dual-speed pump + circulation pump (if required)
- Pump 2: Single or dual-speed
- Air Blower: 1 unit
- Outputs:
- Heater: Yes
- Ozone: Yes
- Light: 12V or 230V
- Sensors: M7 x 2
- Pressure Switch: No
Compatibility:
- Control Box: GL2000/1 Mach3 control box (plastic only)
- Topside Controls: ML range, including ML400, ML700, ML900
Dimensions:
- Length: 290 mm
- Height: 155 mm
Box Quantity: 1 unit
Attributs du produit
| Marque : Balboa |
| Souffleur : Oui |
| Circ Pump : Oui |
| Longueur : 290mm |
| Modèle / Séries : GL |
| No. de pompes : 2 |
| Type de produit : PCB |
| Largeur : 150mm |
Attributs du produit
| Marque : Balboa |
| Souffleur : Oui |
| Circ Pump : Oui |
| Longueur : 290mm |
| Modèle / Séries : GL |
| No. de pompes : 2 |
| Type de produit : PCB |
| Largeur : 150mm |
Description du produit
The Balboa GL2000 Mach3 PCB is a replacement circuit board for the GL2000 Mach3 control box, designed for precise management of spa systems. It supports various pump configurations, a heater, ozone, and light, and is compatible with ML range topside controls such as the ML400, ML700, and ML900. This PCB must only be used with a GL2000 Mach3 plastic control box and should be installed by a competent individual or tradesman to avoid damage and warranty invalidation.
Specifications:
- Power: 230V, 50Hz
- Pump Support:
- Pump 1: Single or dual-speed pump + circulation pump (if required)
- Pump 2: Single or dual-speed
- Air Blower: 1 unit
- Outputs:
- Heater: Yes
- Ozone: Yes
- Light: 12V or 230V
- Sensors: M7 x 2
- Pressure Switch: No
Compatibility:
- Control Box: GL2000/1 Mach3 control box (plastic only)
- Topside Controls: ML range, including ML400, ML700, ML900
Dimensions:
- Length: 290 mm
- Height: 155 mm
Box Quantity: 1 unit
