(Davey) Carte électronique Spa Power SP1200
Description du produit

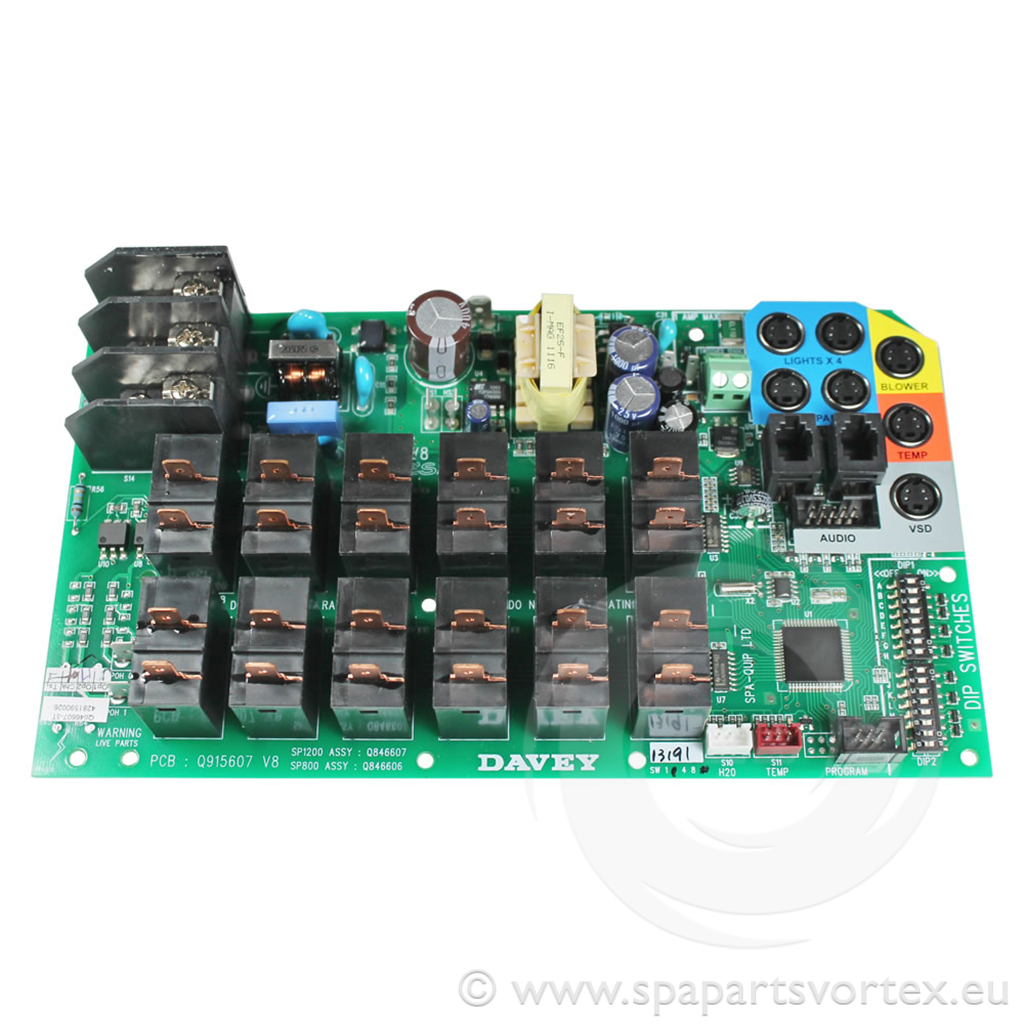

Davey SP1200 PCB is designed for use with the Spa Power SP1200 control box, supporting pumps, blower, heater, ozone, light, and more. It is compatible with the SP1200 topsides.
Features:
- Dimensions: 223mm (L) x 125mm (H)
- Power: 230V AC / 50Hz
- Pump 1: 1 x two speed pump OR 2 x Single speed pumps (P1A, P1B)
- Pump 2 : 1 x two speed pump OR Additional 2x single speed pumps (P2A, P2B)
- Air Blower: Single Or Variable Speed
- Small 24hr circulation pump
- Ozonator
- Heater: x 1
- Light: x1, 12 volt, up to 4 LED Variable colour pool lights
- Pool temperature
- Sleep times
- Filtration cycle
- Clean up cycle
Compatibility:
- SP1200 control box and topsides
Box Quantity: 1 unit per box.
Notes:
Please note we cannot accept wrongly ordered returns that have been fitted.
This PCB is used as a replacement for an existing SP1200 control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
Attributs du produit
| Marque : Davey |
| Modèle / Séries : SP |
| Type de produit : PCB |
Attributs du produit
| Marque : Davey |
| Modèle / Séries : SP |
| Type de produit : PCB |
