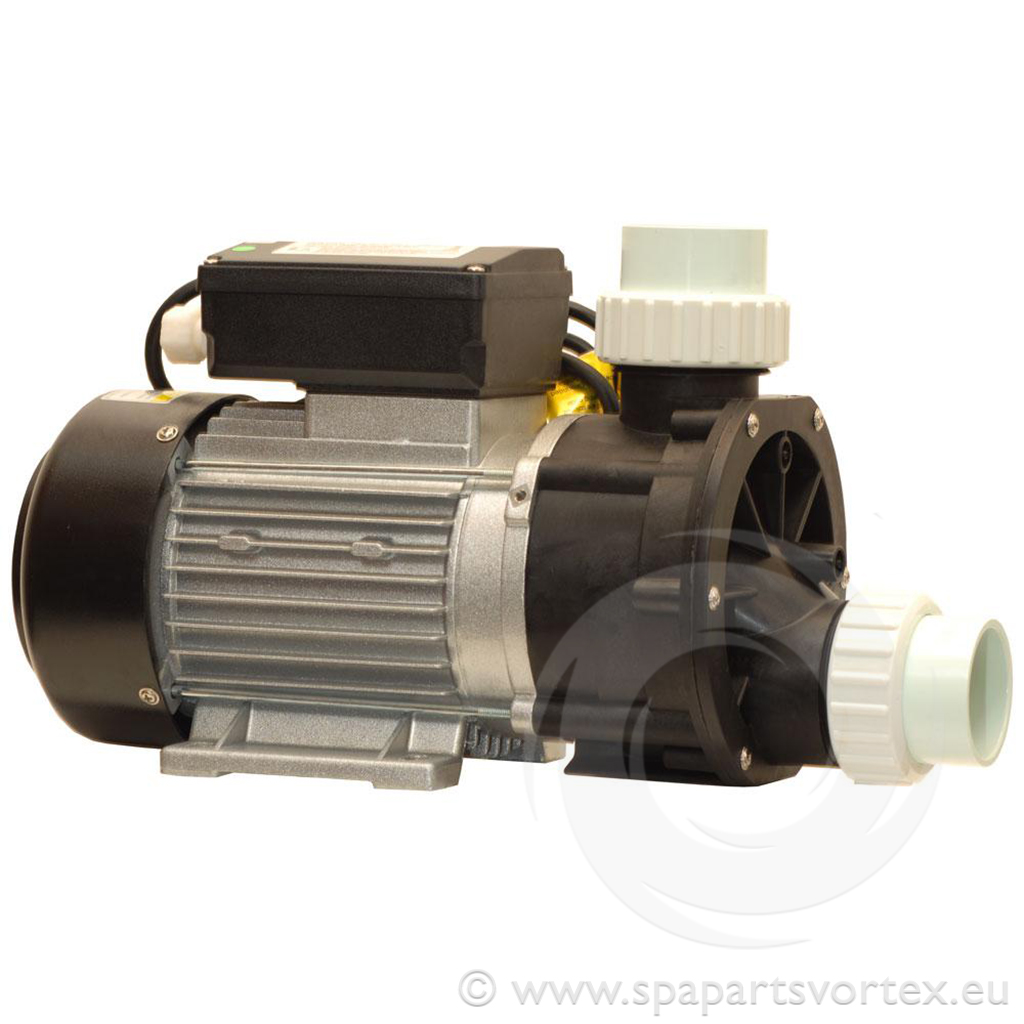

The LX JA100 is a 1.0 HP single-speed circulation pump for hot tubs and whirlpool systems, featuring a built-in optional air switch for manual operation. It includes 14 mm air bleeds on the wet end faceplate and delivers a maximum flow of 320 L/min with an 11 m head. Designed with a centre discharge and self-draining functionality, this pump is compatible with 1.5-inch suction and discharge unions and is commonly found in Chinese-manufactured spas including AMC Winer Spa and Spa Serve.
Specifications:
-
Motor Power: 1.0 HP (0.75 kW)
-
Current Draw: 3.8 A
-
Rotational Speed: 2,900 RPM
-
Plumbing Connections: 1.5-inch suction and discharge ports
-
Flow Rate: Max 320 L/min
-
Max Head: 11 m
-
Motor Protection: Thermally protected with 15 µF capacitor
-
Air Switch: Built-in (optional use)
-
Quantity: Sold individually.
