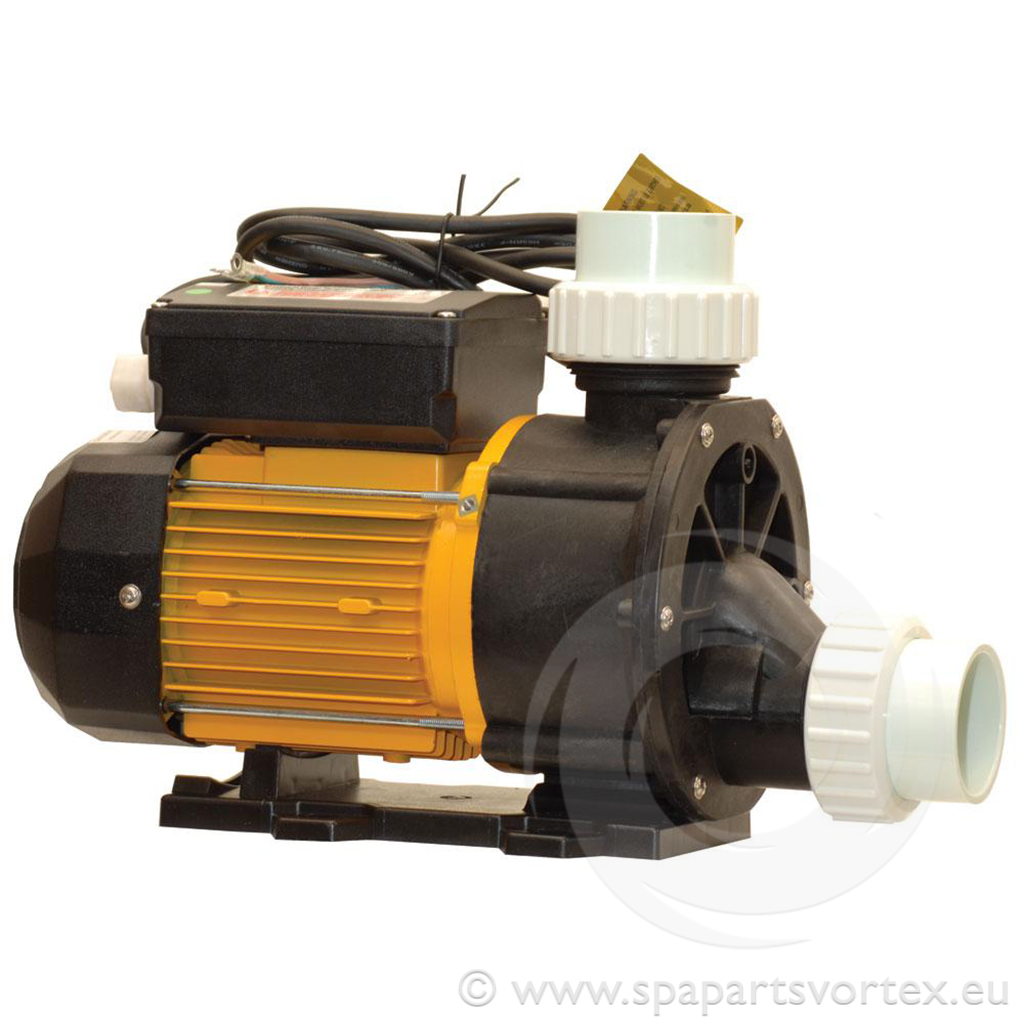

LX TDA50 Circulation Pump 0.5 HP
The LX TDA50 is a single-speed, 0.5 HP circulation pump designed for hot tubs and whirlpool baths. It is commonly used in Chinese-manufactured spas.
Specifications:
- Motor Power: 0.5 HP (0.37 kW)
- Current Draw: 2.0 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
Features:
- Design: Center discharge with self-draining capability
- Construction: Thermally protected motor with a 7 µF capacitor
- Performance: Maximum flow rate of 180 L/min; maximum head of 10 m
- Compatibility: Commonly found in Chinese spas, including AMC Winer, Cascade, MAAX, Monalisa, Trinity, and Spa Serve
This pump provides efficient and reliable operation in spa and whirlpool systems.
