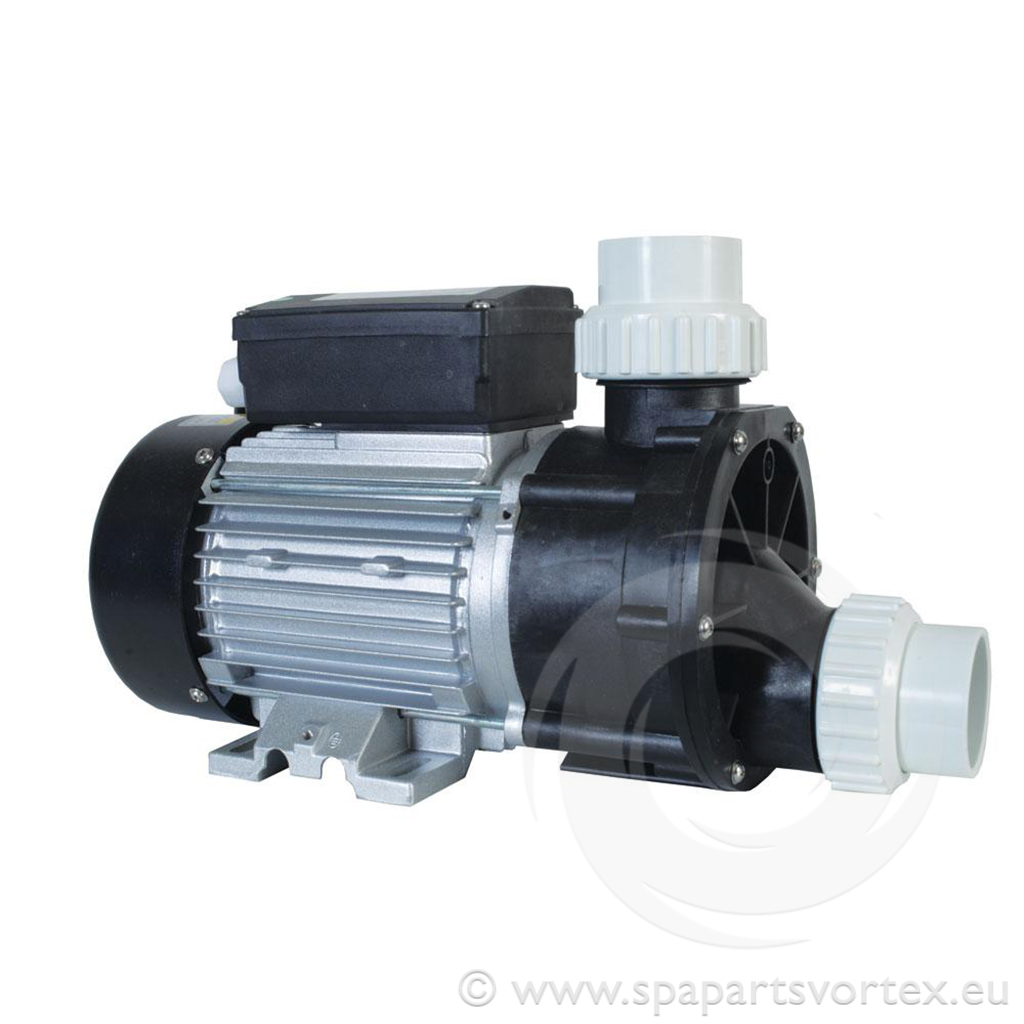

LX DH1.0 Circulation Pump with Optional Air Switch
The LX DH1.0 is a single-speed, 1.0 HP circulation pump designed for use in whirlpool baths and hot tubs, featuring an optional air switch for manual operation.
Specifications:
- Motor Power: 1.0 HP (0.75 kW)
- Current Draw: 3.6 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
Features:
- Design: Center discharge with self-draining capability
- Construction: Thermally protected motor with a 5 µF capacitor
- Performance: Maximum flow rate of 340 L/min; maximum head of 10.5 m
- Compatibility: Suitable for spa brands such as AMC Winer Spa, DanZ Spas, and Spa Serve
This pump provides reliable performance for spa and whirlpool systems, with an optional air switch for enhanced control.
Attributs du produit
| Marque : LX |
| Hauteur : 190 mm |
| Puissance (HP) : 1.0 HP |
| Longueur : 350 mm |
| Puissance kW : 0.75 kW |
| Type de produit : Pompe de circulation |
| Largeur : 140 mm |
| Référence de taille : 1.5 pouces |
| Vitesses : 1 vitesse |
Attributs du produit
| Marque : LX |
| Hauteur : 190 mm |
| Puissance (HP) : 1.0 HP |
| Longueur : 350 mm |
| Puissance kW : 0.75 kW |
| Type de produit : Pompe de circulation |
| Largeur : 140 mm |
| Référence de taille : 1.5 pouces |
| Vitesses : 1 vitesse |
