Pompe LX JA75
JA75 0.75 HP Circ Pump (With Optional Air Switch)
Description du produit

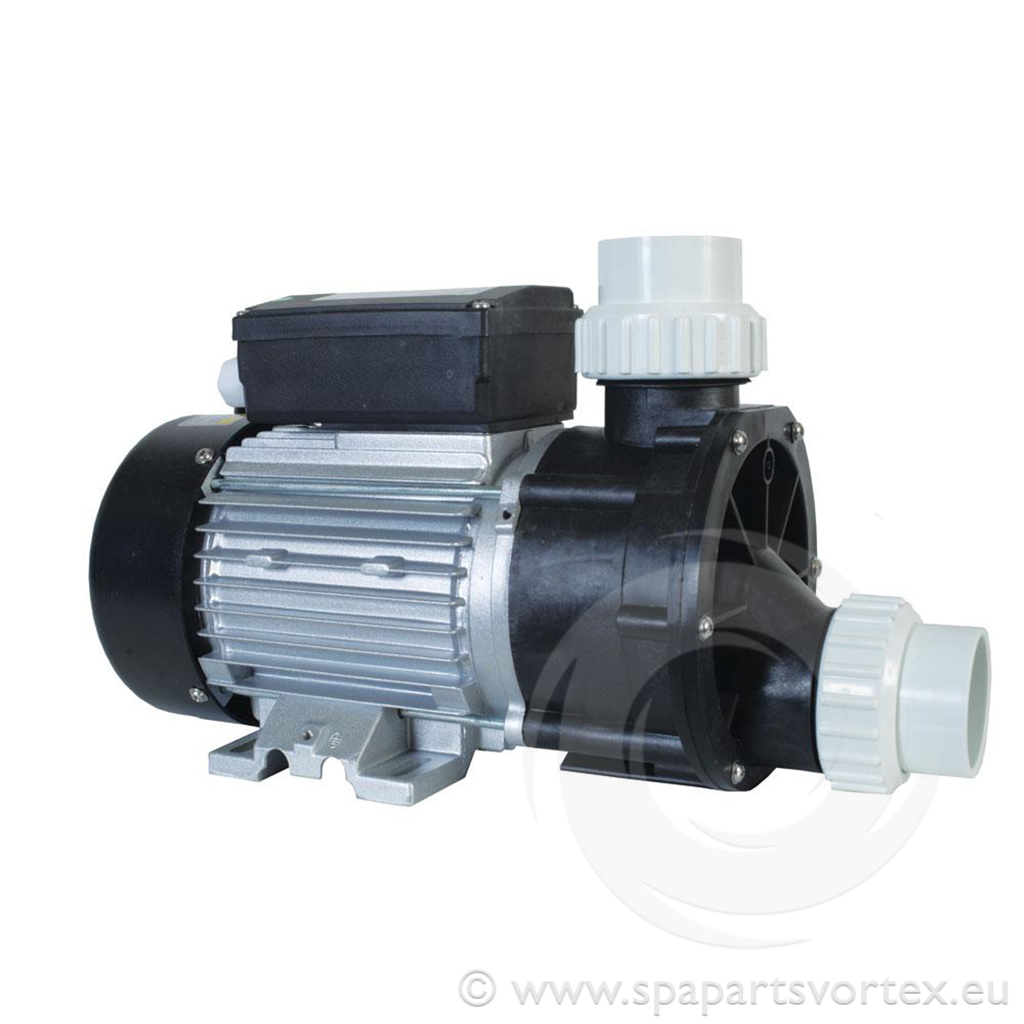

The LX JA75 is a 0.75 HP single-speed circulation pump for hot tubs and whirlpool systems, fitted with an optional internal air switch for manual operation. It features a 14 mm air bleed on the wet end faceplate and delivers a maximum flow rate of 250 L/min with a 12 m head. The pump has a centre discharge, self-draining design and is suitable for use with 1.5-inch suction and discharge unions. Commonly installed in spas such as AMC Winer Spa, Spa Serve, and other Chinese-manufactured models.
Specifications:
- Motor Power: 0.75 HP (0.55 kW)
- Current Draw: 3.2 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
- Flow Rate: Max 250 L/min
- Max Head: 12 m
- Motor Protection: Thermally protected with 10 µF capacitor
- Air Switch: Built-in (optional use)
- Quantity: Sold individually.
Attributs du produit
| Marque : LX |
| Hauteur : 185 mm |
| Puissance (HP) : 0.75 HP |
| Longueur : 325 mm |
| Puissance kW : 0.56 kW |
| Type de produit : Pompe de circulation |
| Largeur : 155 mm |
| Référence de taille : 1.5 pouces |
| Vitesses : 1 vitesse |
Attributs du produit
| Marque : LX |
| Hauteur : 185 mm |
| Puissance (HP) : 0.75 HP |
| Longueur : 325 mm |
| Puissance kW : 0.56 kW |
| Type de produit : Pompe de circulation |
| Largeur : 155 mm |
| Référence de taille : 1.5 pouces |
| Vitesses : 1 vitesse |
Description du produit
The LX JA75 is a 0.75 HP single-speed circulation pump for hot tubs and whirlpool systems, fitted with an optional internal air switch for manual operation. It features a 14 mm air bleed on the wet end faceplate and delivers a maximum flow rate of 250 L/min with a 12 m head. The pump has a centre discharge, self-draining design and is suitable for use with 1.5-inch suction and discharge unions. Commonly installed in spas such as AMC Winer Spa, Spa Serve, and other Chinese-manufactured models.
Specifications:
- Motor Power: 0.75 HP (0.55 kW)
- Current Draw: 3.2 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
- Flow Rate: Max 250 L/min
- Max Head: 12 m
- Motor Protection: Thermally protected with 10 µF capacitor
- Air Switch: Built-in (optional use)
- Quantity: Sold individually.
