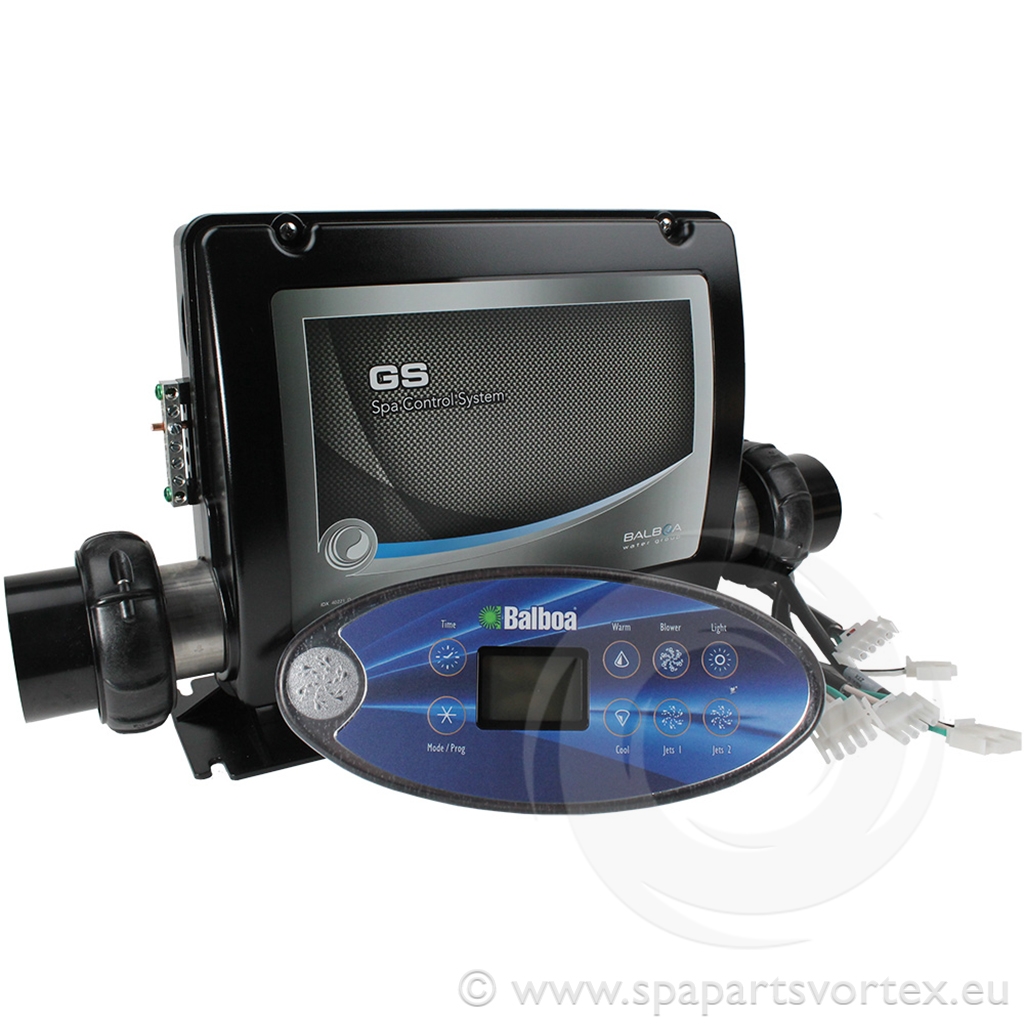

Balboa GS523DZ + TS-VL802
Control Box with Heater Tube + Matching Control Panel
Description du produit
The Balboa GS523DZ Control System includes the GS523DZ control box and VL802D topside control, designed for advanced spa configurations, retrofits, and upgrades. It supports one single- or dual-speed pump with optional circulation pump, two single-speed pumps, an optional air blower, ozone, and 12 V lighting. The system includes radio, TV, and auxiliary connection points. The J17 port allows either an air blower or an additional single-speed pump protected by a 10A quick-blow fuse.
Specifications:
- Amperage: 16A or 32A
- Pump 1: Single or dual-speed with optional circulation pump
- Pump 2: Single-speed
- Pump 3: Single-speed
- Air Blower: 1 unit (optional)
- Heater: 3 kW
- Ozone: 1 unit supported
- Light: 1 unit, 12 V
- Radio/TV/AV: Connection point available
- Dimensions (including heater): 500 mm (L) x 270 mm (H) x 120 mm (W)
- Dimensions (box only): 320 mm (L) x 270 mm (H) x 120 mm (W)
- Topside Panel: 265 mm (L) x 117 mm (H)
- Topside Buttons: TIME, MODE, WARM, COOL, BLOWER, LIGHT, JETS 1, JETS 2 (Jets 2 button cycles Pump 2 and Pump 3 individually)
Items Included:
- Balboa GS523DZ control box
- Balboa VL802D topside control
Quantity: Sold individually.
