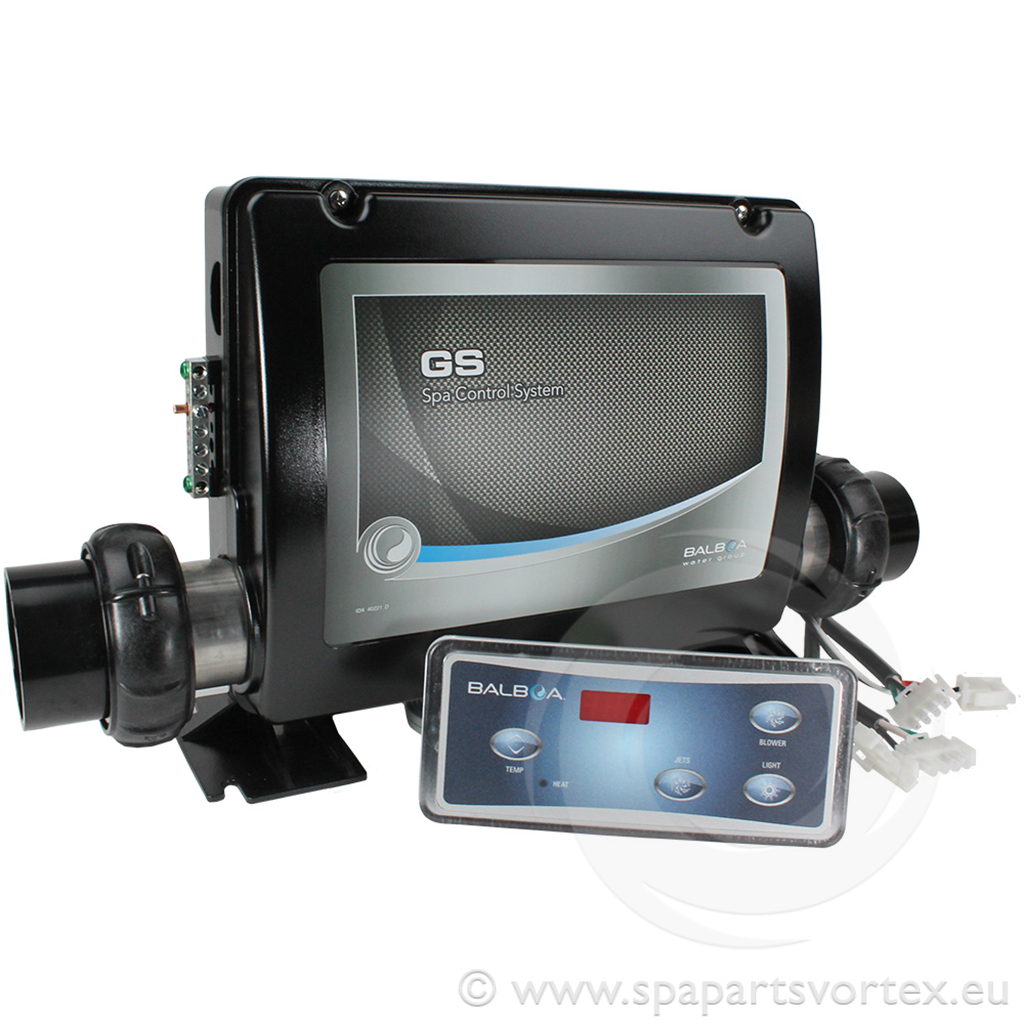

(Pack 3.2) Pack Balboa GS501Z + Balboa VL404, 1 pompe + air
Control Box with Heater Tube + Matching Control Panel
Description du produit
The Balboa GS501Z + VL404 Control System is designed for retrofits and upgrades, featuring the GS501Z control box and VL404 topside control. It supports one single- or dual-speed pump with optional circulation pump, an optional air blower, ozone, 3 kW heater, 12 V lighting, and AV connections. The J17 port allows either an air blower or an additional single-speed pump, protected by a 10A quick-blow fuse.
Specifications:
- Pump 1: Single or dual-speed pump, with an optional circulation pump
- Air Blower: Optional (1 unit)
- Heater: 3kW
- Ozone: 1 connection
- Light: 1 unit, 12V
- AV: Radio, TV, or auxiliary connection
- Control Box Dimensions (including heater): 500 mm (L) x 270 mm (H) x 120 mm (W)
- Control Box Dimensions (box only): 320 mm (L) x 270 mm (H) x 120 mm (W)
- Topside Panel Dimensions: 187 mm (L) x 83 mm (H)
- Topside Buttons: Blower, Jets, Temp, Light
- Connections: 2-inch socket heater union sleeves; AMP cables plug into PCB
Items Included:
- Balboa GS501Z Control Box
- Balboa VL404 Topside Control
Quantity: Sold individually.
Attributs du produit
| Marque : Balboa |
| Puissance kW : 3.0kW |
| Type de produit : Combo boîte et panneau |
| Référence de taille : 2 pouces |
| Modèle / Séries : GS |
